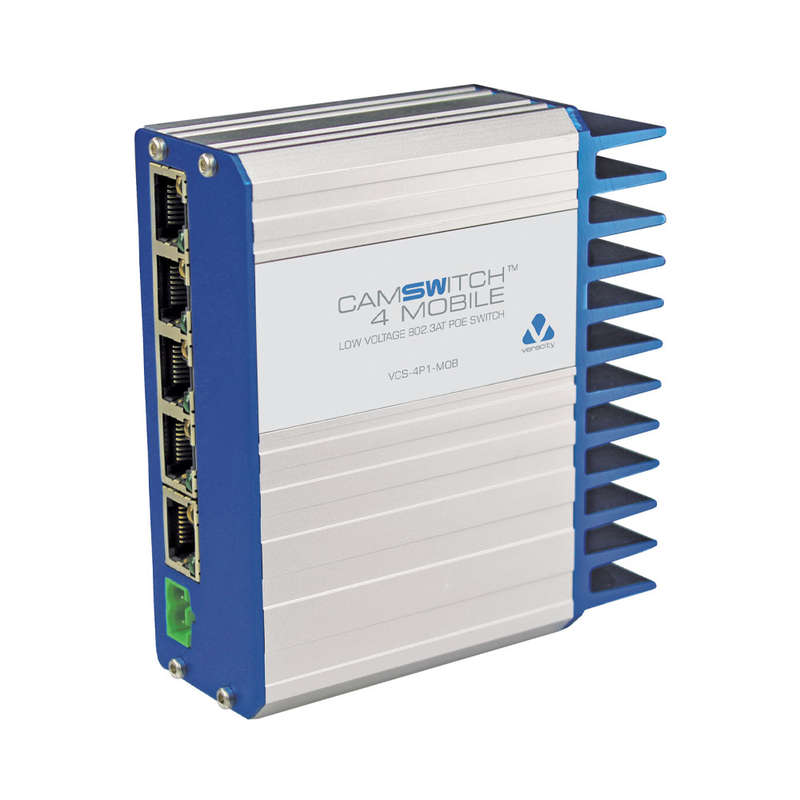

Veracity Camswitch 4 Mobile
CAMSWITCH Mobile is the ideal solution for installing IP cameras and other POE and network devices in transport, battery/solar powered, and other low-voltage applications. It integrates a 5 or 10 port 10/100 Ethernet switch with the capability to convert a 8 to 40 volt DC supply into an 80 watt IEEE 802.3af/at compliant power source.
CAMSWITCH 4 Mobile features 4 802.3at POE ports, 1 non-POE port, and a versatile DC power input.
Compact and powerful
CAMSWITCH Mobile delivers up to 80 watts of IEEE802.3af / 802.3at compatible POE power to POE devices from a DC voltage as low as 8 volts, providing continuous operation during engine cranking or low battery scenarios. Ports may also be used for non-POE equipment such as mobile NVRs.
Installer friendly
CAMSWITCH Mobile's internal 10/100 Ethernet switch is entirely self-configuring to speed, duplex and cable type, and POE is automatically detected and enabled. No user configuration is required, and optional mounting brackets are included.
Applications:
Transportation:
12 and 24 volt bus, train and car power supplies can all be converted to POE power.
Solar and battery power:
CAMSWITCH Mobile is ideal for solar powered wireless systems and temporary installations.
OEM/custom:
The versatile CAMSWITCH platform can be customised to your needs. Enquire with Veracity for more details.
Legacy:
Re-use legacy low voltage power supplies.
| SPECIFICTATIONS |
| Network | 5/10 port unmanaged 10/100 switch
Auto-configuring for speed (10BASE-T or 100BASE-TX) and duplex
Use with Cat 5, Cat 5e or Cat 6 patch or crossover cables
VCS-8P2-Mob supports VLAN trunking |
| Power | Unit power 3W
DC input: 8-40V DC, 2.5-13A
Battery circuit fuse required
POE outputs: IEEE802.3af / IEEE802.3at compatible
Total device power budget up to 80 watts (see manual)
Non-isolated POE, use with IEEE compliant devices only |
| Dimensions | 110 x 100 x 40mm |
