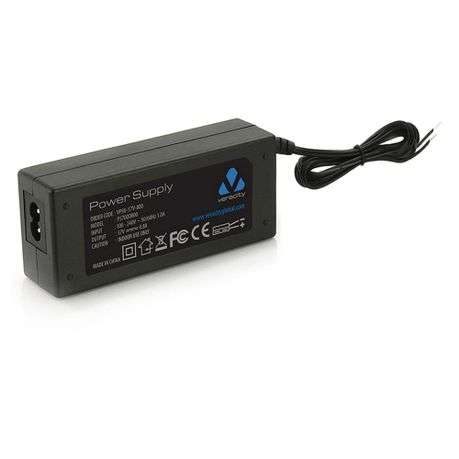

Veracity Optional 57V PSU 0.8A For PoE+

Power Input:
- Normal Input Voltage: 100 - 240V AC
- Input Voltage/Frequency (rated): 90 - 264V AC 50/60Hz
- Current (rated): 1.0A at full load and any input voltage

Power Output:
- Normal Output Voltage: 57V DC (+/- 3.0V)
- Maximum Output Current: 0.8A
- Output Short Circuit Protection: Can be shorted without damage and auto recovery
- Efficiency: 80%, Level VI

Physical/Environmental:
- Operating Temperature:  0degree - +40degree C, [32degree F- +104degree F], Full Load and natural convection
- Storage Temperature: -10degree - +70degree C, [14degree F- +158degree F],
- Operating/Storage Humidity: 10 - 90% RH (non-cond) / 5 - 90% RH (non-cond)
- Compliance: EN60950, EN55022B, CE, ROHS, FCC, UL, KCC, PSE
- Input Connector: 2 Pin IEC320, C8 Type (accepts C7 Type "figure of 8" power cord)
- Output Cable: 1.0m, stripped and tinned

Associated Products:

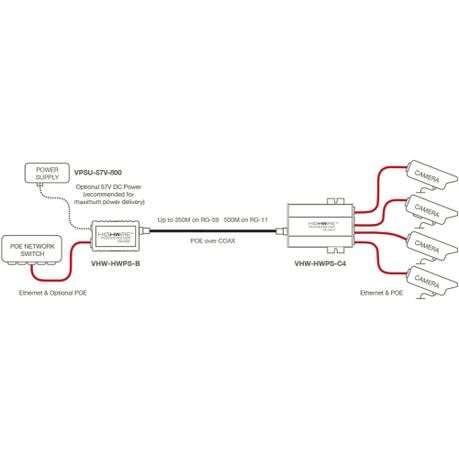

- Highwire Powerstar (POE over coax, BASE unit)
- Highwire Powerstar Duo/Quad (POE over coax, Cam unit) integrated 2/4 port switch
- Highwire Powerstar Base 4 (POE over coax, BASE unit) 4 port switch
- Highwire Longstar (long-range POE over coax, BASE unit)
- LONGSPAN Base Unit (long-range POE, powered via POE-in or VPSU-57V)
- Camswitch 4 or 8 Plus (POE in or VPSU-57V)
- 1U PSU Tray
- 2- PIN C7 Power Cord with UK connector, (2 metre cord)
- 2- PIN C7 Power Cord with US connector, (2 metre cord)
- 2- PIN C7 Power Cord with EU connector, (2 metre cord)

What's in the box
1x Veracity Optional 57V PSU 0.8A For PoE+
