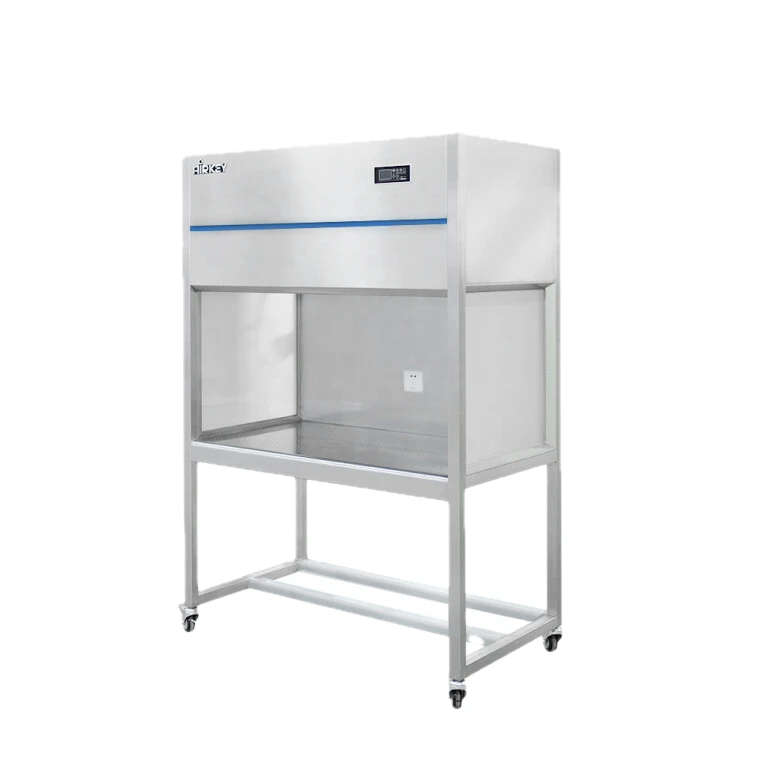

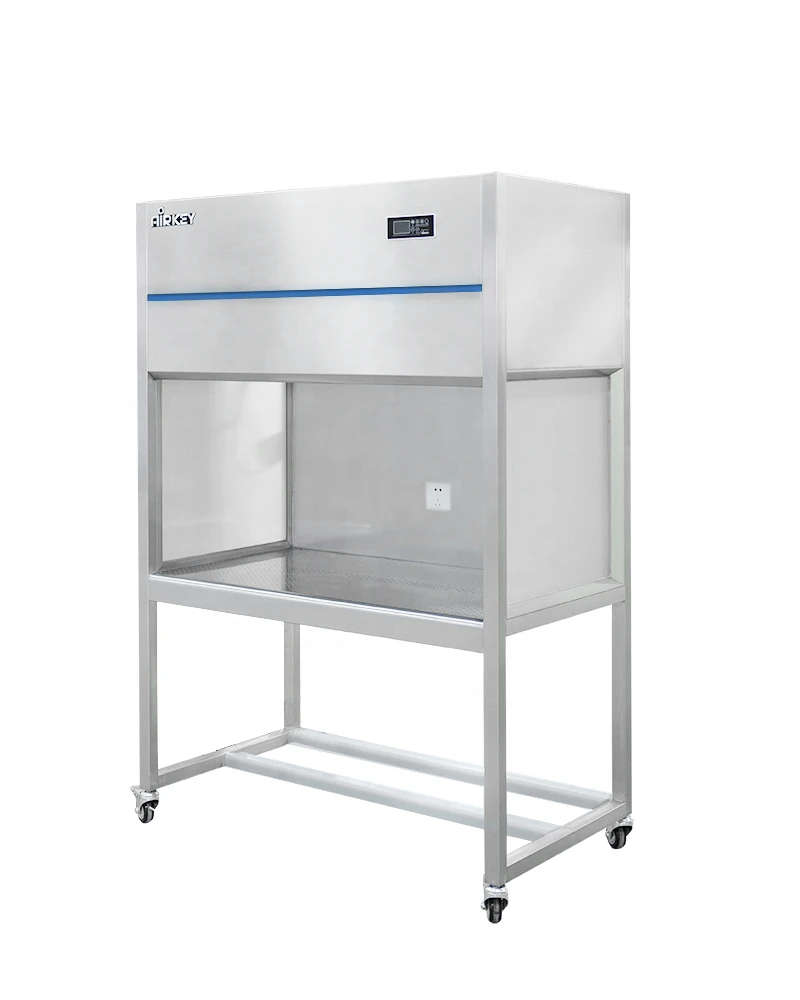

Vertical Laminar Flow BBS-V1300
Lead Time: 4-8 Weeks
Vertical Laminar Air Hood Flow Cabinet: Laminar Flows are part of laboratory clean benches.A clean bench is an enclosed workbench that is controlled to a certain air cleanliness level to prevent contamination such as dust, dirt, and airborne microorganisms. Vertical Laminar Flow BBS-V1300
They are mainly used in medical research, hospital/clinical trials, university science labs, microbiology labs, agriculture and veterinary labs etc.
Laminar Flow Cabinet-sample protection only Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particles-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminatedroom air.
Laminar flow cabinet is widely used in medical research laboratories, hospital, manufacturing facilities and other research and production environments.
Technical Parameters
| Model | BBS-V1300 | BBS-V1800 |
| External Size(W*D*H) | 1300*750*2040mm | 1800*750*2040mm |
| Internal Size(W*D*H) | 1200*645*610mm | 1700*645*610mm |
| Work Surface Height | 750mm | |
| Display | LCD Display | |
| Airflow Velocity | Average of 0.3~0.5m/s | |
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | |
| Work Table:304 stainless steel | ||
| Side and Front Windows:5mm toughened glass anti-UV | ||
| Pre-filter | Polyester fiber, washable | |
| HEPA Filter | 99.999% efficiency at 0.3um | |
| Noise | <60dB | |
| Front Window | Motorized | |
| Max Opening | 430mm | |
| Fluorescent Lamp | 12W*1 | 16W*1 |
| UV Lamp | 30W*1 | 40W*1 |
| Emission of 253.7 nanometers | ||
| Consumption | 400W | 450W |
| Waterproof socket | Two, total load500W | |
| Caster | Universal caster with leveling feet | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |
| Standard Accessory | LED lamp, UV lamp*2,Base stand, Gas Tap, Waterproof socket*2 | |
| Gross Weight | 228kg | 306kg |
| Package Size(W*D*H) | 1460*1070*1650mm | 1960*970*1600mm |
Vertical Laminar Flow BBS-V1300
