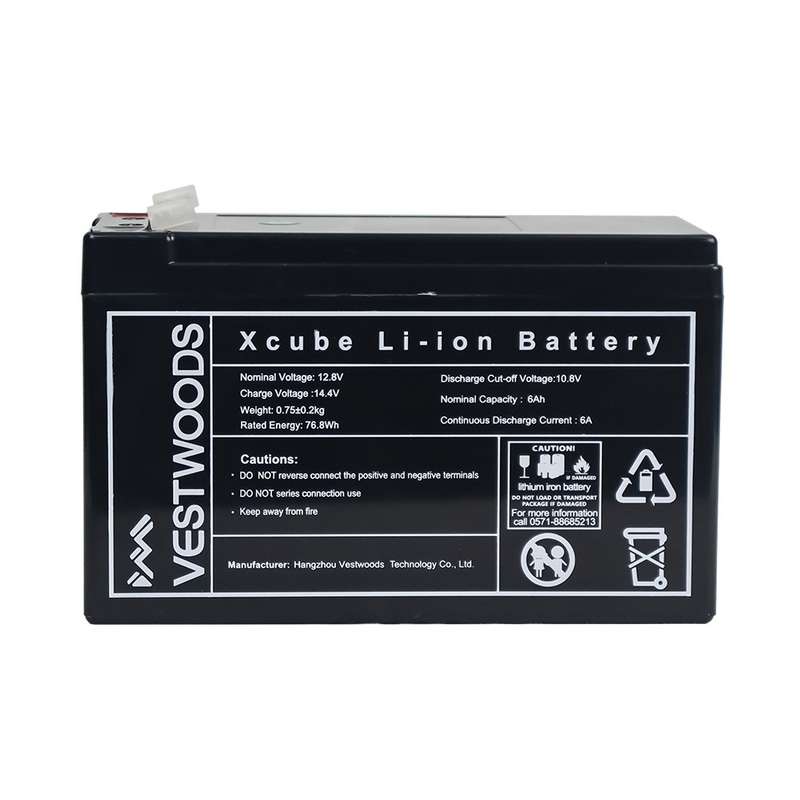

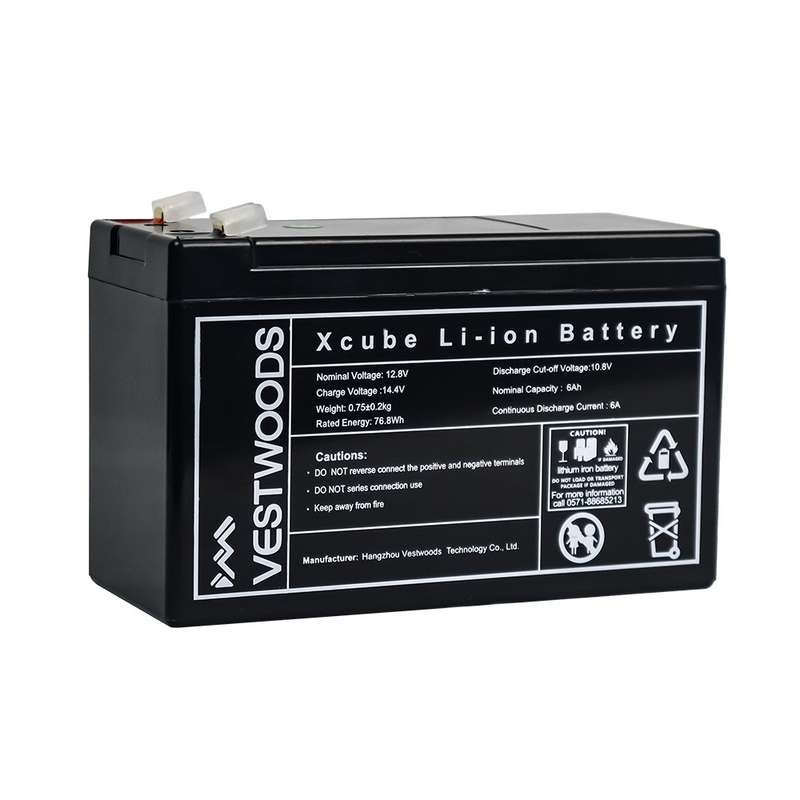

VESTWOODS 6Ah / 12V LiFePO4 Lithium-Ion Battery - VC1206 / 3 Year Warranty

* Please note that this battery cannot be used with high amperage (more than 5A) motors such as those used on D5 EVO and D10 motors.
* Not for UPS use

Specifications

Electrical

- Nominal Voltage: 12.8V
- Nominal Capacity: 6Ah
- Rated Power: 76.8W
- BMS Function: Overcharge, over-discharge, overcurrent, and temperature protection
- Recommended Charge Voltage: 14.4-14.6V
- Discharge Cut-off Voltage: 10.8V
- Standard Charge Current: 3A
- Max. Charge Current: 6A
- Continuous Discharge Current: 6A
- Peak Discharge Current: 12A @5S
- Voltage Configurations: 12V
- Maximum Configuration: Inverse capacity in parallel
- Maximum Time Between Charges: 3 months

Mechanical

- Dimension (L*W*H): 151*65*94mm
- Weight: Approx. 0.75kg
- Terminal: F1
- Casing Material: ABS

Environment

- Working Temperature Range: Charge: 0°C~55, Discharge: -20°C~60°C
- Humidity Range: 95% RH
- Storage Temperature: 15°C~35°C
- IP Protection Level: IP65
