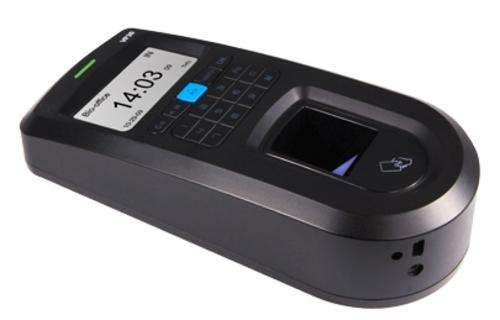

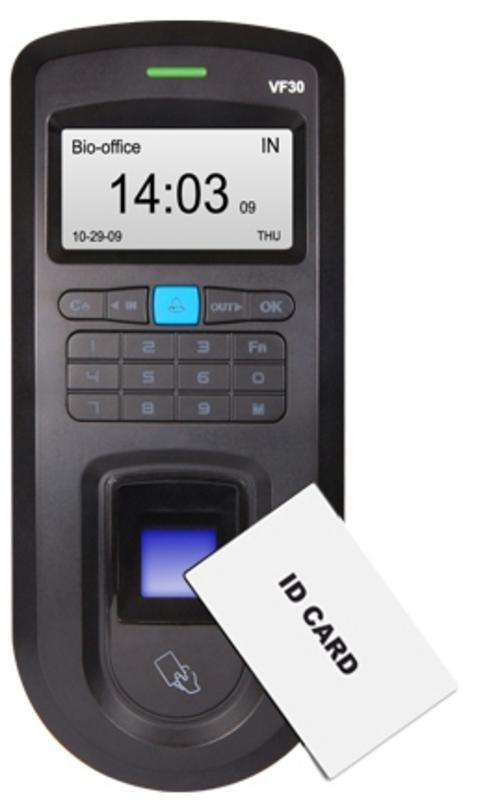

VF30 Fingerprint Access Control

VF30 Fingerprint Access Control

VF30 fingerprint access control and time attendance is a professional access control system developed for small to medium size businesses for security. It integrates fingerprint identification, RFID, burglar alarm, time attendance and access control functions etc., with fashionable and elegant appearance and reliable quality. It has high quality musical buzzer, multiple language display, user friendly interface and powerful communication function suitable for data management in various environments. It comes with functional background management software, compatible with various types of database. It supports time zone and group access control for high security level. It is versatile, convenient and multi-functional.

Features
● With optical waterproof fingerprint sensor. Scratch-proof, unbreakable and durable. Will accept all kinds of fingerprints
● BioNano core algorithm platform of high performance and reliability
● New 2010 version algorithm with improved performance on wet and dry fingerprints. Support identification from different angles
● Multiple languages including English, French, Spanish, Portuguese and Chinese etc.
● White backlit keypad with 10 numeric keys and 7 function keys
● Standard fingerprint reader, optional RFID/Mifare/HID card reader
● Mini USB, RS485 and TCP/IP for network connection
● Support wiegand input/output. Tamper alarm output to connect with alarm equipment outside. Alarm card No. can be sent to controller by Wiegand 26

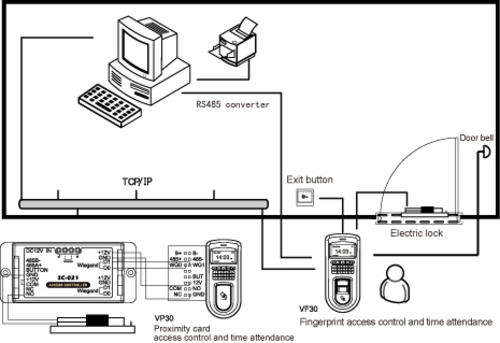

● Direct lock control to open door. Optional SC021/SC822 access controller or any other standard access controller for separate type secure access control system
● Unique infrared auto wakeup design
● Support realtime record download and WEB online tracking function
● Time zone and group access control, realtime data transfer monitor
● Identification method: FP, Card, Password
● standard 1000 fingerprints and 32000 records
● Wall mounted, combine 2-in-1 function for access control and time attendance

Parameters

Sensor: AFOS300 Optical Sensor
Sensor Wake Up Mode: Infrared
Algorithm: BioNANO V10
LCD: 128*64 white LCD
LED: Green, Red
Keypad: 17
Function Key: Fn X 1
Card Reader Module: Standard 125KHZ EM RFID, optional 13.56MHZ Mifare and 125KHZ HID
Operating Voltage: DC 12V
Color: Black
Case Material: ABS Plastic
Package: 80(w)*180(h)*40(d)mm
Processor: 32-bit ARM MCU
Communication Interface: USB Device, TCP/IP
Fingerprint Capacity: 1000
Log Capacity: 32000
Identification Mode: FP, Card, ID+FP, ID+PW, PW+Card, FP+Card
Registration Mode: Fingerprint, Password, Card
FRR: 0.001%
FAR: 0.00001%
Working Current: 0.5A-1.0A
Sleeping Current: 0.3A
ESD Tolerance: >15000V
Scan Area: 22mm*18mm
Resolution: 500 DPI
Identification Time: <0.5 Sec
Size: 80(w)*180(h)*40(d)mm
Temperature: -10~40 degrees Celsius
Humidity: 20%-80%
ID Length: 6-digit
Status: IN, Break, OUT
Self-defined Status: 16 different customizable time attendance status
Workcode: 6-digit
Short Message: 50
Scheduled Bell: 30
Voice Prompt: Buzzer
Realtime Transfer: Yes
Name Display: 9-digit
Password Length: 6-digit
Access Groups & Time Schedules: 15 groups, 32 time zones
Door Sensor: Yes
Tamper Alarm: Yes
Remote Unlock Via Software: Yes
Wiegand: In & out
Relay: DC 12V, Relay Output(COM, NO, NC)
