VGA to RCA + S-Video Converter Box - PC to TV Connection - E48

VGA to RCA + S-Video Converter Box - PC to TV Connection

This is by far the most affordable method in achieving great dual screen mode when using your computer. Enjoy entertainment on one screen and work on the other. If you like multi-tasking while working on the computer. Then you will enjoy watching videos on one screen and chatting with friends on the other. This is just one of the many ways this VGA converter can be use. Simply put it, Extreme versatility is what you get.

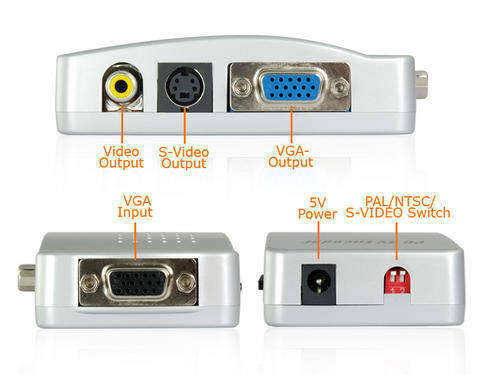

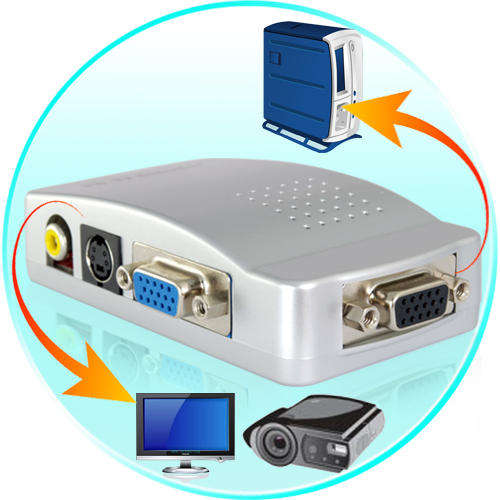

The VGA converter comes with 3 outputs, VGA, RCA (Yellow) and S-Video. This model is perfect for desktop home use. Just connect the unit to your desktop computer and use the VGA output to connect to your PC monitor, then use either the S-Video or RCA (Yellow) Cable to connect to your desired secondary LCD monitor. Finally, sit back and relax while your battle station is ready for ultimate multi-tasking.

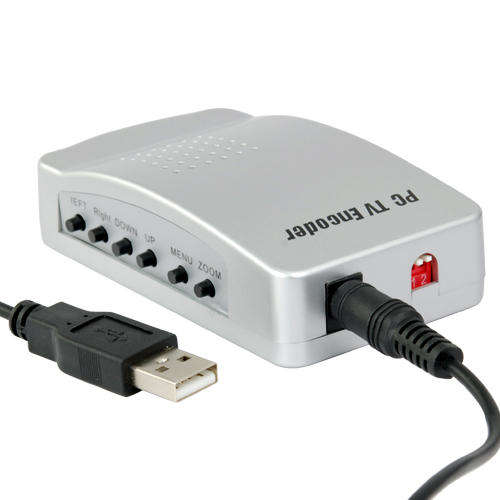

This is a simple device, though powerful it may be. It is designed to simply plug and play with no software installation required. Even better, the unit is powered by a single USB cable that connect directly into one of your desktop or laptop USB ports. With additional menu control function to allow screen adjustments, and onboard buttons to allows for PAL/NTSC switching, this PC TV encoder is ready to use straight out of the box within minutes.

At a Glance...

• Plug & Play
• Supports PAL/NTSC
• Convert VGA to RCA

Manufacturer Specifications:

• Primary Function: Computer video signal to S-Video or component video (TV)
• Additional Functions: Split video signal to both LCD computer monitor and TV
• Input:
  - 1 x VGA cable IN
• Outputs:
  - 1 x VGA cable OUT
  - 1 x S-video OUT
  - 1 x Component cable out (RCA yellow)
• On Board Buttons:
  - S-Video Switch ON/Off
  - PAL/NTSC
  - Menu
  - Zoom
  - UP
  - Down
  - Right
  - Left
• Menu Options: - Flicker, H-Position, V-Position, Brightness, Saturation, Sharpness
• Video output system options: NTSC / PAL
• VGA system options:
  - 640 x 480 @ 60 / 72 / 75 / 85 Hz
  - 800 x 600 @ 60 / 75 Hz
  - 1024 x 768 @ 60 / 75 Hz
• Certification: FCC, CE
• Dimension: L:100 x W:60 x H:26 (mm)

Product Notes:

• Operating system independent - works with all Windows, Mac, or Linux computers
• Video adjustment controls on converter box for ease of picture adjustment

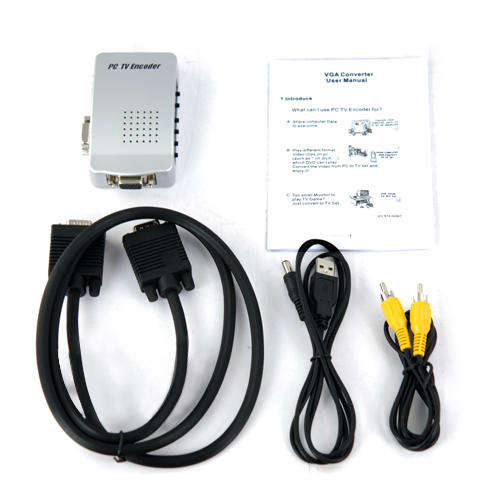

Package contents:

• VGA to Home Video Converter Box
• Users manual
• VGA cable
• USB power cable

Frequently Asked Questions:

• Does this unit also support audio output?
  No, it only supports Video output.
• Do I need any software to install the unit on my computer?
  No, unit is a plug and play device, no software installation is required.
