Vgate iCar OBDII Car Diagnostic Reader is a fast and efficient way to self diagnose problems with your vehicle’s engine and it also has Wi-Fi for connecting Android, iOS or PC devices.
16 Pin Interface Vgate iCar OBDII Scan Tool

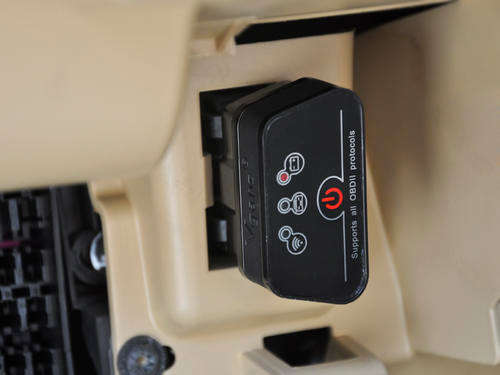

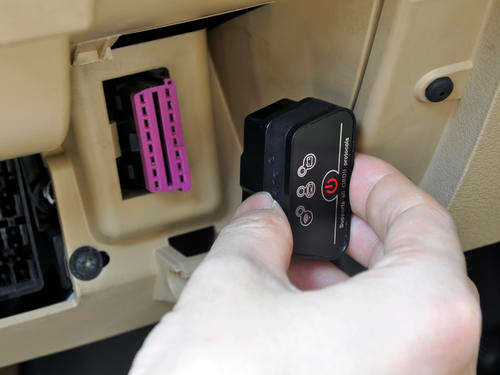

This is the Vgate iCar OBDII scan tool, which is a high-quality automotive scanning tool that supports all OBD-II protocols, including SAE J1850 PWM(41.6K baud), SAE J1850 VPW(10.4K baud), ISO9141-2(5 baud init, 10.4K baud) as well as USER2 CAN(11 bit ID, 50K baud). Tthe Vgate iCar OBDII scan tool allows for you to self diagnose issues with your vehicle therefore you will know what needs to be done next time you visit a mechanic. You connect the Vgate iCar tool to your car’s OBDII Cable via the plug’s 16 pin interface, and once connected the iCar scan tool will never have to be unplugged. As it uses Wi-Fi, you have a stable wireless connectivity range of around 10 to 20 meters. In addition it does not require any wires or batteries since the adapter is powered by the diagnosis socket.
Fault Reader + Wi-Fi Connectivity
The iCar scan reader uses the fastest and most reliable ARM chips; consequently your results will be delivered swiftly and correctly. This car diagnostic scan tool has the capability to read trouble codes, both generic and manufacturer-specific, along with display code descriptions with over 3000 universal code definitions in the database. Furthermore the Vgate iCar OBDII car code reader can be used with a PC, iOS or Android devices where the user can download the appropriate app from either the Google Play store or Apple’s App store..
At a Glance...
- Vgate Brand
- OBDII Card Diagnostic Reader
- Wi-Fi Connectivity
Manufacturer Specifications
General

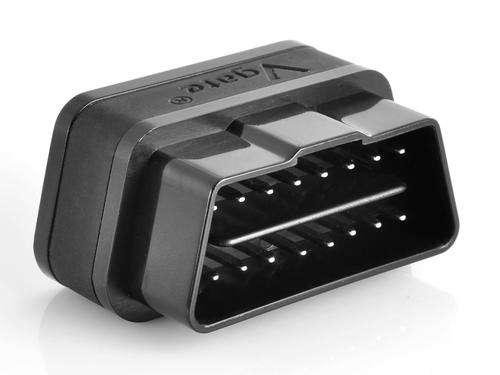

- Diagnose Interface: 16 Pin
- Wi-Fi Standard: 802.11a/b/g
- Wi-Fi Range: 10 to 20 Meters
- Software Platform Supported: Android, iOS, PC
- App in Google Play: TORQUE
- App in App Store: Dashcomman
- Operating Voltage: 12V
- Vehicle Coverage: Works on most OBD II Vehicles (1996+ USA) & EOBD cars (Petrol cars from 2001+ and diesel cars from 2003/2004 in EU)
- Protocols Supported: Automatic, SAE J1850 PWM(41.6Kbaud), SAE J1850 VPW(10.4Kbaud), ISO9141-2(5 baud init,10.4Kbaud), ISO14230-4 KWP(5 baud init,10.4 Kbaud), ISO14230-4 KWP(fast init,10.4 Kbaud), ISO15765-4 CAN(11bit ID,500 Kbaud), ISO15765-4 CAN(29bit ID,500 Kbaud), ISO15765-4 CAN(11bit ID,250 Kbaud), ISO15765-4 CAN(29bit ID,250 Kbaud), SAE J1939 CAN(29bit ID,250 Kbaud), USER1 CAN(11 bit ID,125 Kbaud), USER2 CAN(11 bit ID,50 kbaud)
- Function: Read Trouble Codes, Scan + Clear Codes, Record Data Logging, Export Data, Display Real, Time Sensor Data, Engine RPM, Coolant Temp, Oil Psi, Throttle Position, Calc Load Value, Fuel System Status, Vehicle Speed, Short and Long Term Fuel Trim, Intake Manifold Psi, Timing Advance, Intake Air Temp, Air Flow Rate, Absolute Throttle Position, Oxygen Sensor Voltages / Associated ST Fuel Trims, Fuel System Status, Fuel Psi
Dimensions
- Main Product Dimensions: 45x25x26mm (L x W x D)
- Main Product Weight: 18g
Product Notes
- For your car to be OBDII compliant it must have a 16-pin DLC under the dash and the Vehicle Emission Control Info Label must state that the car is OBDII compliant

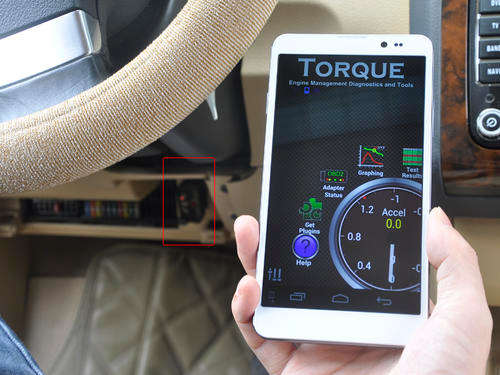

- To use with Android, please download the TORQUE app from the Google Play store. Torque is an OBD II performance and diagnostic tool for any device that runs the Android operating system. It will allow you to access the many sensors within your vehicles Engine Management System, as well as allow you to view and clear trouble codes.
- To use with iOS, please download the Dashcomman app from the App store.

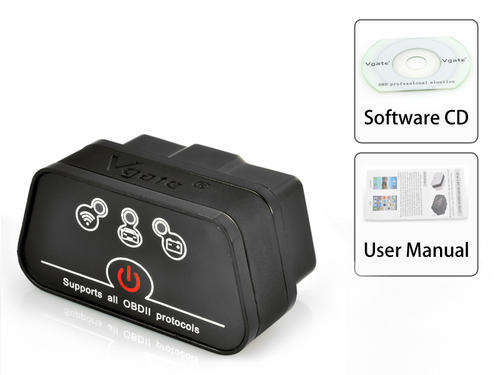

Package Contents
- Bluetooth Car Diagnostic Reader
- Software CD
- User Manual
