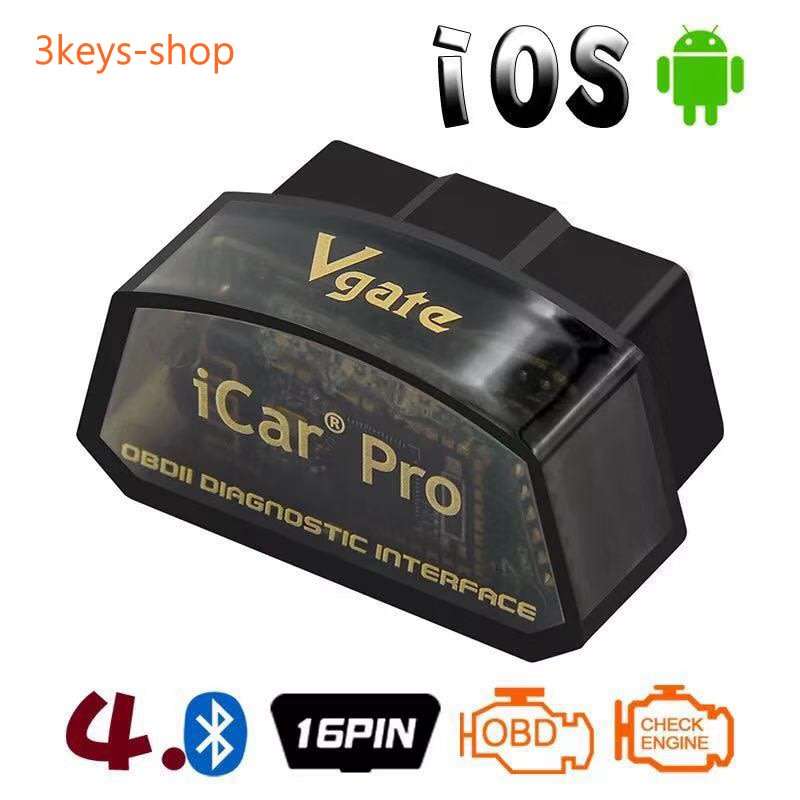

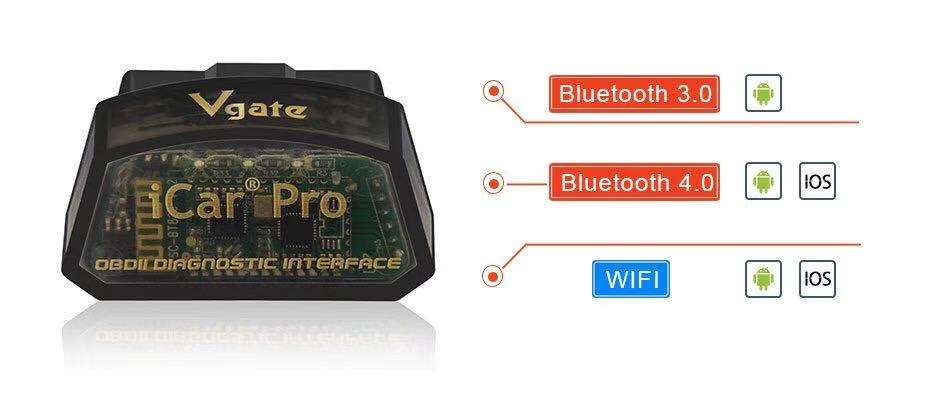

Vgate iCar Pro Bluetooth 4.0 (BLE) OBD2 Fault Code Reader OBDII Code Scanner Car Check Engine Light iOS iPhone iPad/Android Compatible ELM327 Adapter

Vgate iCar OBD II adapter is a powerful car diagnostic tool developed.

 1:It is compliant with full OBD II/EOBD specifications. Various wireless connection modes to connect your smartphone or pad.

 2:It reads the real-time car engine data, such as engine speed, ignition time, fuel trim, water temperature, fuel consumption.

 3:It support a variety of OBD II apps.

 Vgate iCar OBD II adpater is a high-quality automotive Bluetooth 4.0 OBDII scanner.

Features:

  CLEAR CHECK ENGINE LIGHT - This iCar Pro code reader will help you save money and accurately diagnose check engine light problem. Very easy to use.

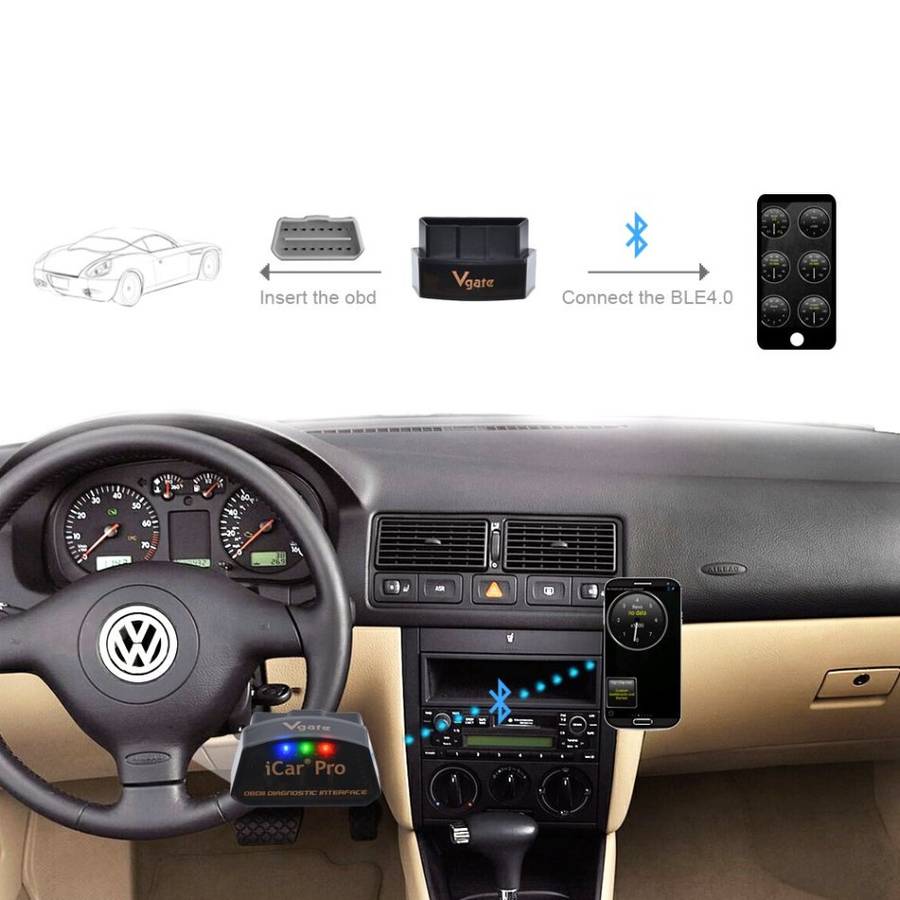

EASY FITMENT - The majority of cars made in the past 2 decades are fitted with an OBD2 diagnostic port, simply find the port and plug the iCar Pro in.

FIT AND FORGET - It really is possible to fit and forget beacuse it's micro size and unique power saving functionality that protects your battery

WORKS WITH HUNDREDS OF APPS - The Vgate iCar Pro Bluetooth Low Energy device works with the most popular OBD apps. Please find download instruction for Android device in product description.

2 YEAR WARRANTY - We offer a 2 year warranty as standard. If you have any problem with the device simply send it back and we will despatch a brand new replacement the following working day.

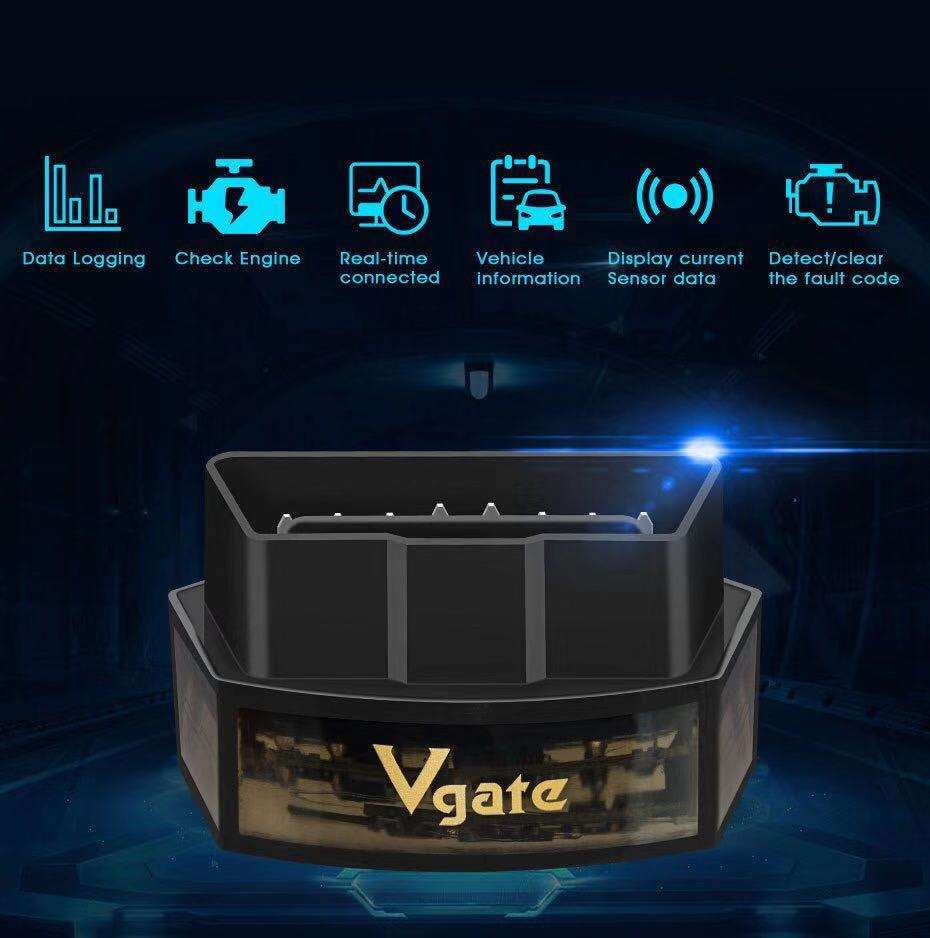

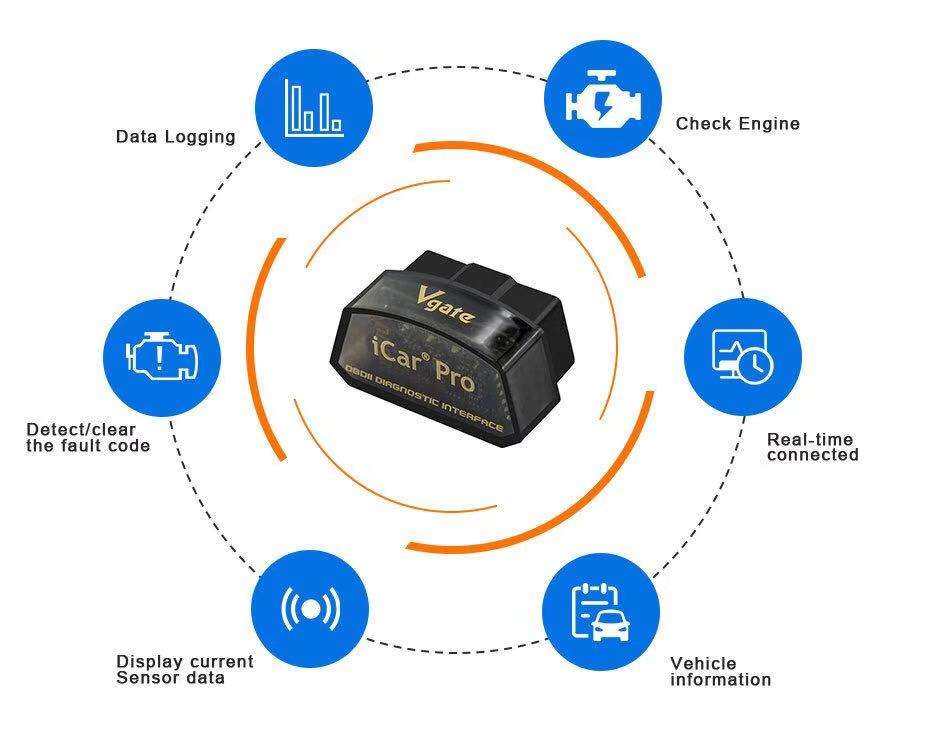

Functions:

 Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Tips before your purchase:

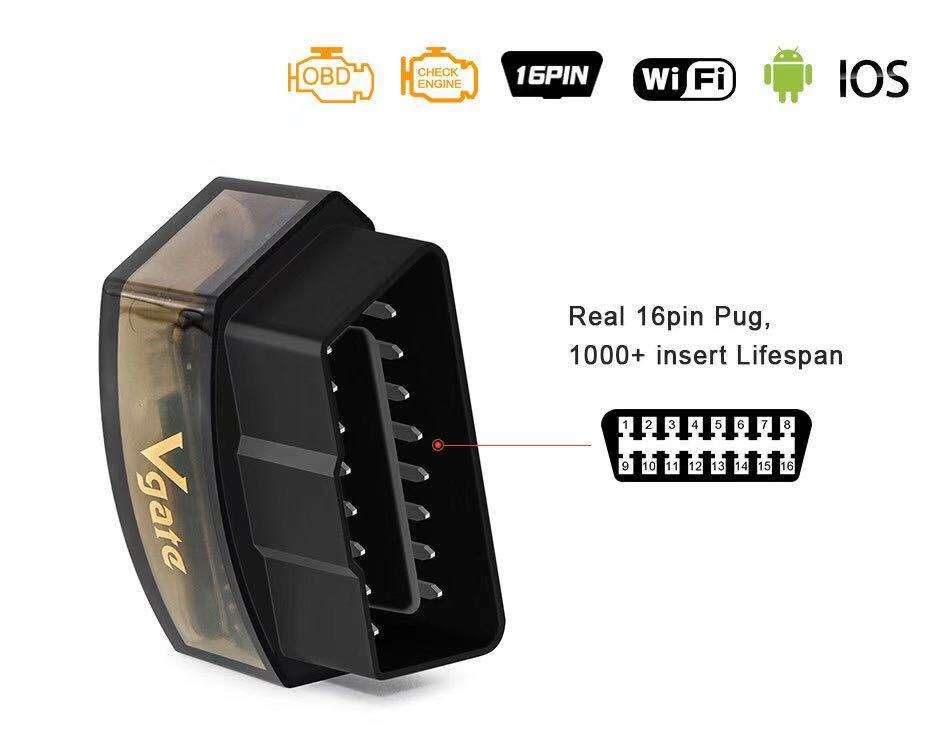

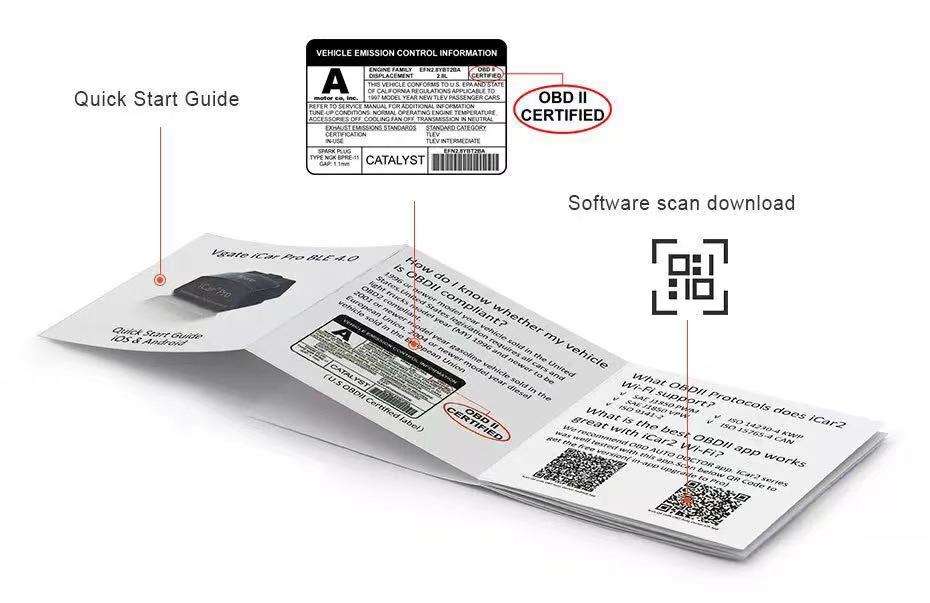

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link

Connector) under the dash and the Vehicle Emission Control Information

Label must state that the vehicle is OBD II compliant. To be sure your vehicle complies with OBD-II, look for a sticker on the vehicle

under the hood in the engine compartment that clearly states “OBD II compliant or certified”.

 OBD-II protocols supported:

SAE J1850 PWM(41.6 Kbaud)

SAE J1850 VPW(10.4 Kbaud)

ISO9141-2(5 baud init,10.4 Kbaud)

ISO14230-4 KWP(5 baud init,10.4 Kbaud)

ISO14230-4 KWP(fast init,10.4 Kbaud)

ISO15765-4 CAN(11bit ID,500 Kbaud)

ISO15765-4 CAN(29bit ID,500 Kbaud)

ISO15765-4 CAN(11bit ID,250 Kbaud)

ISO15765-4 CAN(29bit ID,250 Kbaud)

SAE J1939 CAN(29bit ID,250* Kbaud)

USER1 CAN(11*bit ID,125* Kbaud)

USER2 CAN(11*bit ID,50* kbaud)

Vehicle Coverage:

Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles (Petrol

cars from 2001 and diesel cars from 2003/2004 in Europe)

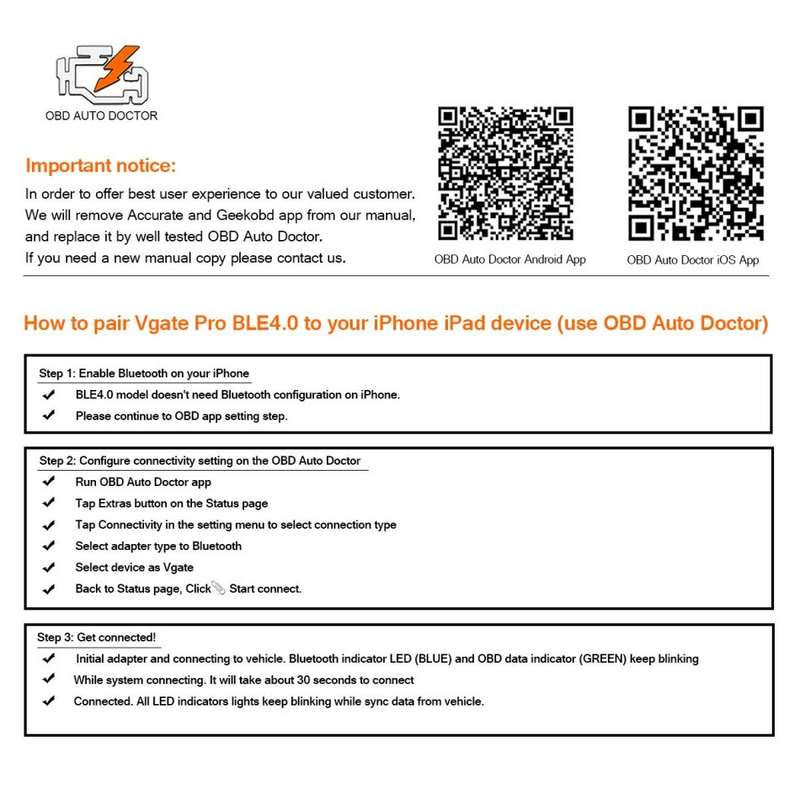

 How to setup Bluetooth pairing:

BLE4.0 Dual mode version

For Android users:

Home screen

Go to setting page

Select V-LINK Default password is “1234”

Device paired

Run Torque app

Go to Torque app OBD II adapter setting

Choose connecion type>Bluetooth

Choose Bluetooth device>V-LINK

Exit Torque app completely

Run Torque app

Connected

For iOS users:

Home screen

Go to setting page

Click on Bluetooth function

(Device name is invisible)

Run Accurate app

Go to Accurate app setting page

Select Bluetooth and connect

Exit Accurate app and run again

Connected

 Specification:

Supply Voltage: 11.5V—15V

Supply Current: <200Ma

Standby Current: <30Ma ( TONWON Pro =<3Ma )

Operating Temperature: -40--85

Operating Humidity: 5%--95%RH Non-Dewfall

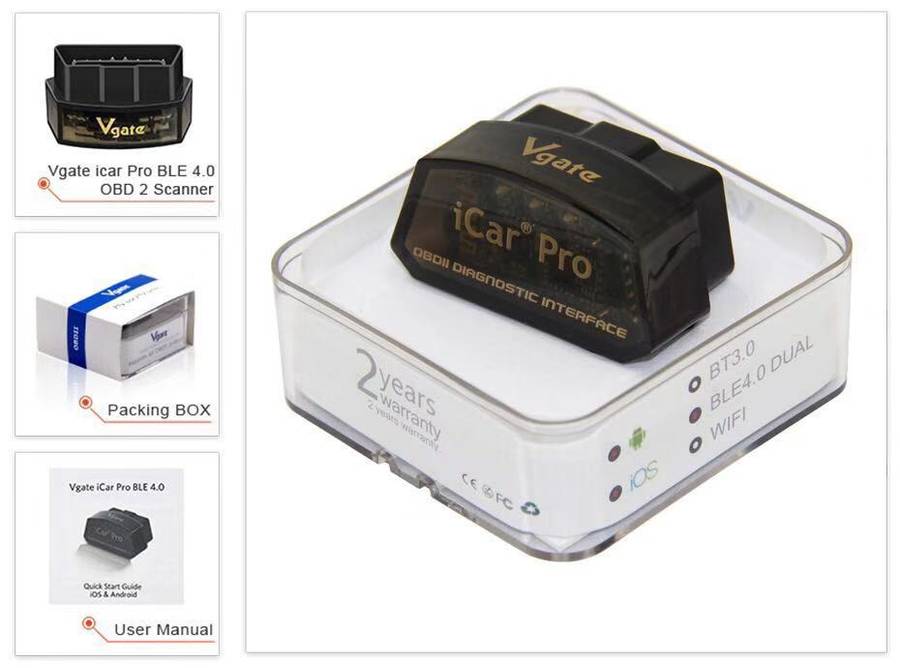

Package Includes:

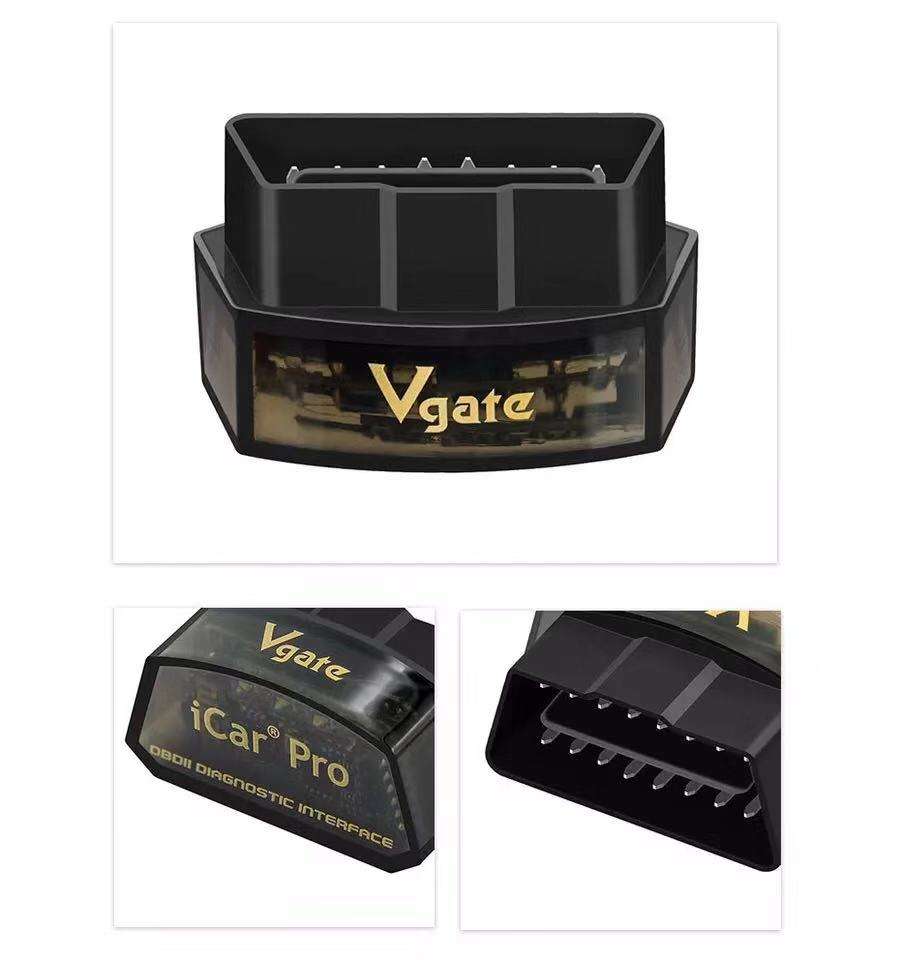

1pc x Vgate iCar Pro Bluetooth 4.0 OBDII adapter

1pc x User manual
