The Vgate® iCar 3 Bluetooth is an engine performance and diagnostics tool for both automotive enthusiasts and professionals. Paired with your Android devices, this scanner allows you to easily scan and clear engine codes, view and save real-time engine and performance data and much more.
Newly released in 2015, this model features Bluetooth Version 3.0 for increased data transfer speeds and reduced power consumption over earlier versions. It also features an integrated smart auto sleep function that puts it into sleep mode after 30 minutes, allowing you leave it plugged into your vehicle at all times.
Key Highlights
•Auto Sleep Mode function
•Uses the fastest and most reliable ARM chips
•Compatible with all Android devices
•Small size and compact structure.
•Stable wireless connection
•No wires or batteries (adapter is powered by the diagnosis size sockets)
•Read and erase diagnostic trouble codes (DTCs) and turn off the check engine light
•View real-time vehicle data, graphs and performance parameters while you're driving
•Find and fix problems before they happen
•Pays for itself with one use
•Compatible with all OBDII compliant vehicles
•Connects wireless via Bluetooth® up to 3 meters (no annoying cables)
•Compatible with SAE J1850 PWM and SAE J1850 VPW protocols found on many Ford and GM vehicles (these protocols are NOT supported on cheaper bluetooth scanners)
Product Description
With the appropriate applications, you can:
•Read, erase and display code descriptions problems - both standard and spetskodov manufacturers
•Measure the fuel consumption
•Turn off the MIL (signal Check Engine)
•Download data to external media in a variety of formats for later printing
•Record various parameters, display graphics in real time, and more.
Display Real-Time sensor data, including:
•Engine RPM
•Coolant Temperature
•Momentum
•Engine Load
•Oil Pressure
•Throttle Position
•Calculated Load Value
•Fuel System Status
•Vehicle Speed
•Short and Long Term Fuel Trim
•Intake Manifold Pressure
•Timing Advance
•Intake Air Temperature
•Air Flow Rate
•Absolute Throttle Position
•Oxygen Sensor Voltages/Associated Short Term Fuel Trims
•Fuel System Status
•Fuel Pressure + More
Specifications:
•Supply voltage(VDD): 12V
•Work temperature range: -20 ~ +70C
•Storage temperature range: -40 ~ +125C
•RF sensitivity(Basic Rate): -85db
•Modulation Mode: GFSK
•Frequency Range: 2402 ~ 2480MHZ
•Transmission Range: 10M
•Bluetooth Profile: SPP
•UART Params: 38400,8,n,1
The Vgate iCar 3 Supports All OBDII Protocols:
•Automatic
•SAE J1850 PWM(41.6Kbaud)
•SAE J1850 VPW(10.4Kbaud)
•ISO9141-2(5 baud init,10.4Kbaud)
•ISO14230-4 KWP(5 baud init,10.4 Kbaud)
•ISO14230-4 KWP(fast init,10.4 Kbaud)
•ISO15765-4 CAN(11bit ID,500 Kbaud)
•ISO15765-4 CAN(29bit ID,500 Kbaud)
•ISO15765-4 CAN(11bit ID,250 Kbaud)
•ISO15765-4 CAN(29bit ID,250 Kbaud)
•SAE J1939 CAN(29bit ID,250*Kbaud)
•USER1 CAN(11*bit ID,125*Kbaud)
•USER2 CAN(11*bit ID,50*kbaud)

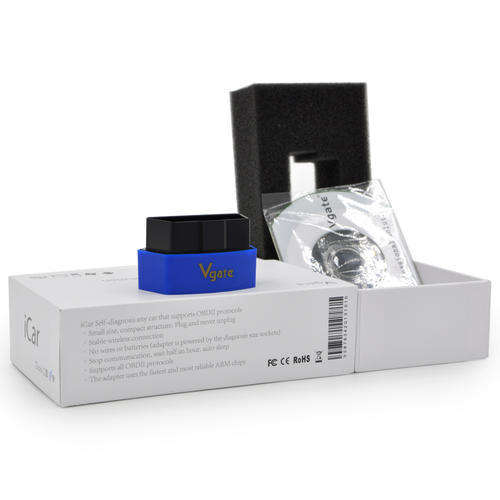

Package Content
•Vgate® iCar 3 ELM327 Bluetooth Scanner
•Retail Packaging Box
•Product Manual
•Product CD
