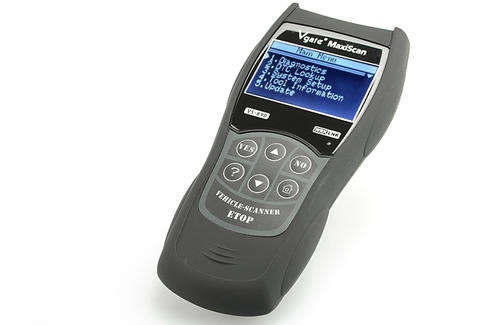

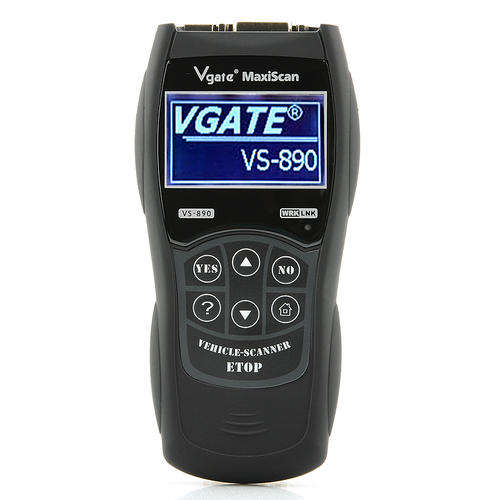

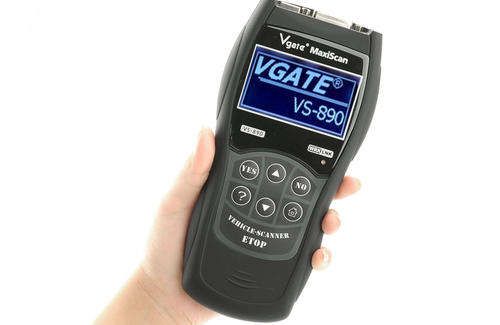

Vgate VS-890 Maxiscan
The VS-890 professional quality OBD-II and EOBD car code reader and scanner by Vgate allows you the ability to self diagnose any problems with your vehicle. Due to their investment in the equipment required, most repair shops charge a fee, some-times substantial, to attach the scanning equipment and diagnose problems using the OBD-II system signals. Home mechanics and small shop technicians have been limited from working with these signals by the cost and technical difficulty of the equipment. It is now practical for almost anyone to access OBD-II signals and use them for their own testing and repairs with the introduction of more economical and user friendly scanning devices.
The best scanners connect without problems and use software to quickly and automatically call up the OBD-II information. They should have recording ability so that data can be collected during a test drive without distracting the technician driving the car. A system connecting to a laptop or desk top computer provides expanded memory for data and the ability to export data to a spreadsheet or graphing utility.
This on-board diagnostics or OBD-II scanner provides for a standardized hardware interface. Unlike the OBD-I connector, which was sometimes found under the hood of the vehicle, the OBD-II connector is required to be within a couple of feet of the steering wheel (unless an exemption is applied for by the manufacturer, in which case it is still somewhere within reach of the driver). This OBD-II features incredible compatibility that allows it to support a large number of vehicles made by 70 manufacturers.
Vgate VS-890 ODB2 + EOBD Code Reader
Professional Grade
3 Inch Black Mask LCD
Suitable and Compatible with a vast array of vehicles
Displays the DTC definitions
Manufacturer Specifications
General
Application layer fully complies with ISO 15031 and is compliant with SAE J1979
Support a large number of vehicles made by 70 Manufacturers
DTC Includes Generic (P0, P2, P3, B0, U0 and C0) + Manufacturer Specific (P1, P3, B1, B2, U1 and C1, C2,) Codes
Detailed DTC Library
Support Protocol: SAE J1850 PWM/SAE J1850 VPW/ISO9141/KWP FAST INIT/KWP 5BAUD INIT/CAN 11BIT 500K/CAN 29BIT 500K/CAN 11BIT 250K/CAN 29BIT 250K/CAN_USER1 11B125K/CAN_USER1 29B 125K/CAN_USER2 11B 50K/CAN_USER2 29B 50K
Full CAN BUS support for new cars
11 Bit and 29 Bit CAN
Capable of communicating with multi-ECU System
LCD: 3 inch black mask LCD, wide visible area, high contrast. The contents is readable even in strong sun shine
ABS+PC Engineer Plastic Housing (passed 6-meter free fall test.) Patent No.:200830010963.5
Harmless fade - resistant paint
Rubber oil sprayed housing; slide, dirty, and vibration proof
Pass EMI / EMC test
High quality PET 6-key film keypad
Support Manually Input DTC Look-up
Read DTCs
Clear DTCs
Data Stream
Freeze Frame
I/M Readiness
O2 Monitor Test
On-Board Mon. Test
Component Test
Vehicle Info
Modules Present
Unit of Measure
State Emission
Read All DTCs
Read Stored DTCs
Read Pending DTCs
Detailed help information
Capable of showing probable cause of a DTCs
Up to 161 data itemsï¼ÂÂÂeach of them is with online help information
Dimensions
Main Product Dimensions: 193x95x32mm (L x W x D)
Main Product Weight: 189g
shipping with airmail (with tracking number)
shipping with fast courier please add 15 USD

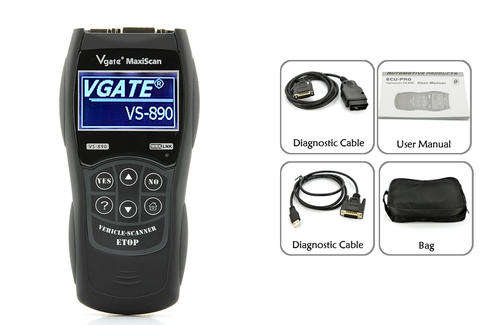

Package Contents
ODB2 + EOBD Code Reader
Diagnostic Cable
User Manual
Update Cable
Bag
