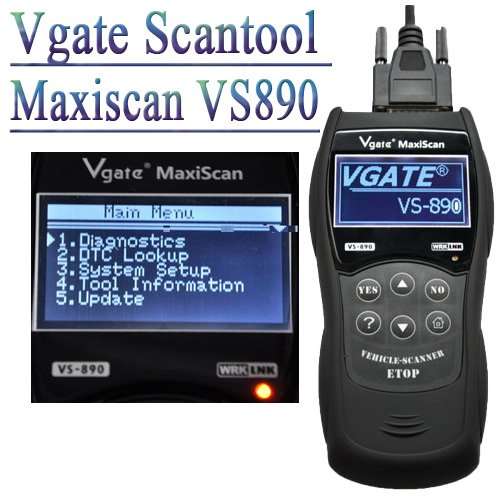

Vgate Maxiscan VS890 OBD2 Code Reader Diagnostic Tool

• Works on all OBDII compliant vehicles


• The device will erase all DTCs , freeze frame Data , oxygen sensor data, and reset IM Monitors and MIL, High quality PET 6-key film keypad. (Support manually input DTC Look-up).
• Multi-language user interface, supports up to 13 languages(Spain, Portugal, Korean, Japanese, Italian, Hebrew, German, French, Finnish, English, Dutch, Danish, Chinese).

Supported protocol:
SAE J1850 PWM SAE J1850 VPW ISO9141 KWP FAST INIT KWP 5BAUD INIT CAN 11BIT 500K CAN 29BIT 500K CAN 11BIT 250K CAN 29BIT 250K CAN_USER1 11B 125K CAN_USER1 29B 125K CAN_USER2 11B 50K CAN_USER2 29B 50K Full CAN BUS support for new cars 11 Bit and 29Bit CAN Capable of communicating with multi-ECU System

Feature:
1.Color: Metal Black
2.LCD:3 inch black mask LCD, wide visible area, high contrast .The contents is readable even in strong sun shine.
3.ABS+PC Engineer Plastic Housing (passed 6-meter free fall test.) Patent No.200830010963.5.
4. Harmless fade-resistant paint.
5.Rubber oil sprayed housing; slide, dirty, and vibration proof.
6.Passed EMI/EMC test.
7.High quality PET 6-key film keypad.(3M harmless glue)
8.CE,FCC,RoHs Certified 9.Support manually input DTC Look-up
10.Read DTCs
11.Clear DTCs
12.Data stream
13.Freeze Frame
14.I/M Readiness
15.O2 Monitor Test
16.On-Board Mon Test
17.Component Test
18.Vehicle Info.
19.Modules Present
20.Unit of Measure
21.State Emission
22.Read All DTCs
23.Read Stored DTCs
24.Read Pending DTCs
25.Detailed help information
26.Capable of showing probable cause of a DTCs.
27.Up to 161 data items, each of them is with online help information.
28.Reset engine MIL
29.This operation will erase all DTCs, freeze frame Data, oxygen sensor data, and reset IM Monitors and MIL.
Paper board box Size: 295mm×152mm×65mm
Unit Weight:198g
Cable Weight:116g
Package Weight:160g
Gross Weigh:490g

Package list:
Main Unit: 190mm×93mm×30mm
LCD:128×64
Black Mask LCD Visible view: 67mm×40mm
Cable:J1962 120cm
