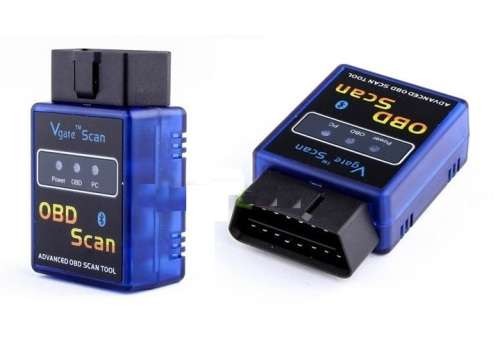

Vgate Mini Small ELM327 OBD2 OBDII Bluetooth Vehicle Diagnostic Tool CAN Scanner

OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols. Please make sure your vehicle is OBD II compliant.

Functions:

* Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
* Clear trouble codes and turn off the MIL ("Check Engine" light)
* Display current sensor data, including:
    - Engine RPM
    - Calculated Load Value
    - Coolant Temperature
    - Fuel System Status
    - Vehicle Speed
    - Short Term Fuel Trim
    - Long Term Fuel Trim
    - Intake Manifold Pressure
    - Timing Advance
    - Intake Air Temperature
    - Air Flow Rate
    - Absolute Throttle Position
    - Oxygen sensor voltages/associated short term fuel trims
    - Fuel System status
    - Fuel Pressure

Automatic:

* SAE J1850 PWM (41.6Kbaud)
* SAE J1850 VPW (10.4Kbaud)
* ISO9141-2 (5 baud init, 10.4Kbaud)
* ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
* ISO14230-4 KWP (fast init, 10.4 Kbaud)
* ISO15765-4 CAN (11bit ID, 500 Kbaud)
* ISO15765-4 CAN (29bit ID, 500 Kbaud)
* ISO15765-4 CAN (11bit ID, 250 Kbaud)
* ISO15765-4 CAN (29bit ID, 250 Kbaud)
* SAE J1939 CAN(29bit ID,250*Kbaud)
* USER1 CAN(11*bit ID,125*Kbaud)
* USER2 CAN(11*bit ID,50*kbaud)

* Works with all OBD-II compliant vehicles
* Wireless (Bluetooth) 5-10 meter
* Software included for Palm, PDA, Mobile
* Software included for Windows PC (for XP and Win7)
* Software included for Smartphone (Android, PPC, Symbian. Not compatible with iPhone/iPad)
