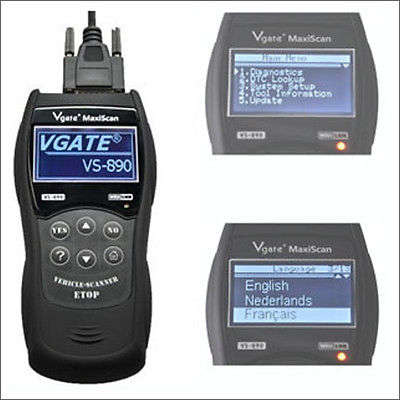

Vgate VS890 Maxiscan Hand Held Fault Code Diagnostic Reader Scanner OBD2 CANBUS

Vgate VS890 Super Scanner OBD2  Code Reader Diagnostic Tool

The VS-890 professional quality OBD-II and EOBD car code reader and scanner allows you the ability to self diagnose any problems with your vehicle. Due to their investment in the equipment required, most repair shops charge a fee, some-times substantial, to attach the scanning equipment and diagnose problems using the OBD-II system signals. Home mechanics and small shop technicians have been limited from working with these signals by the cost and technical difficulty of the equipment. It is now practical for almost anyone to access OBD-II signals and use them for their own testing and repairs with the introduction of more economical and user friendly scanning devices.

 This on-board diagnostics or OBD-II scanner provides for a standardized hardware interface. Unlike the OBD-I connector, which was sometimes found under the hood of the vehicle, the OBD-II connector is required to be within a couple of feet of the steering wheel (unless an exemption is applied for by the manufacturer, in which case it is still somewhere within reach of the driver). This OBD-II features incredible compatibility that allows it to support a large number of vehicles made by 70 manufacturers.

Features:
  * Color: Black
  * LCD: 3 inch black mask LCD, wide visible area, high contrast. T
  * English user interface, supports up to 13 languages.
  * Full CAN BUS support for new cars 11 Bit and 29Bit CAN Capable of  communicating with multi-ECU System
  * ABS + PC Engineer Plastic Housing (passed 6-meter free fall test.) Patent  No.: 200830010963.5.
  * Harmless fade-resistant paint.
  * Rubber oil sprayed housing; slide, dirty, and vibration proof.
  * Passed EMI/EMC test.
  * High quality PET 6-key film keypad. (3M harmless glue)
  * CE, FCC, RoHs Certified
  * Support manually input DTC Look-up

  Functions:
  1. Read DTCs
  2. Clear DTCs
  3. Data stream
  4. Freeze Frame
  5. I/M Readiness
  6. O2 Monitor Test
  7. On-Board Mon. Test
  8. Component Test
  9. Vehicle Info.
  10. Modules Present
  11. Unit of Measure
  12. State Emission
  13. Read All DTCs
  14. Read Stored DTCs
  15. Read Pending DTCs
  16. Detailed help information
  17. Capable of showing probable cause of a DTCs.
  18. Up to 161 data items, each of them is with online help information.
  19. Reset engine MIL
  20. This operation will erase all DTCs, freeze frame Data, oxygen sensor data,  and reset IM Monitors and MIL.

  SUPPORT PROTOCOL:
  SAE J1850 PWM
  SAE J1850 VPW
  ISO9141
  KWP FAST INIT
  KWP 5BAUD INIT
  CAN 11BIT 500K
  CAN 29BIT 500K
  CAN 11BIT 250K
  CAN 29BIT 250K
  CAN_USER1 11B 125K
  CAN_USER1 29B 125K
  CAN_USER2 11B 50K
  CAN_USER2 29B 50K
  * Full CAN BUS support for new cars 11 Bit and 29Bit CAN Capable of  communicating with multi-ECU System

VEHICLE COVERAGE:
  Generic Acura, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Buick, Cadillac,  Chevrolet, Chrysler, Citroen, Daewoo, Daihatsu, Dodge, Ferrari, Fiat, Ford, GM,  GEO, GMC, Honda, Hyundai, Infiniti, Isuzu, Iveco, Jaguar, Jeep, Kia,  Lamborghini, Lancia, Land Rover, Lanos, Leganza, Lexus, Lincoln, Lotus, MAN,  Maserati, Mazada, Mecedes Benz, Mercury, MG, Mini, Mitsubishi, Nissan, Nubira,  Oldsmobile, Opel, Peugeot, pontiac, Porsche, Proton, Renault, Rolls Royce,  Rover, Saab, Saturn, Scania, Seat, Skoda, Smart, Ssangyong, Subaru, Suzuki,  Toyota, Vauxhall, Volvo, Volkswagen Other

Please note we try our best to advertise item as accurate as possible. Please check with your vehicle manufacturer or with someone with knowledge in the filed of your vehicle on whether this diagnostic tool is compatible with your vehicle.
