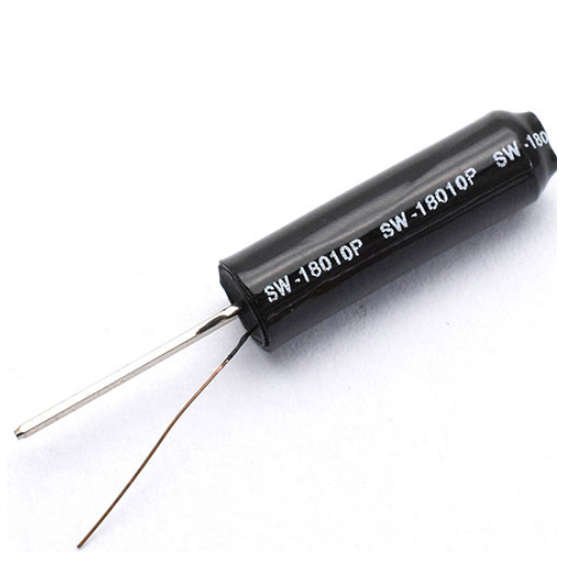

Vibration Sensor Switch (SW-18010P) - 2 pack

Name: Vibration Sensor Switch (SW-18010P) - 2 pack
SKU: SEN-00212
Price: 5.98 ZAR
Availability: InStock

13 available / new

R5.98

Add to watchlist Watch

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Netram Technologies665

98.41 % Positive ratings

Get it now, pay later

Product details

Condition

New

Location

South Africa

Product code

SEN-00212

Bob Shop ID

644207212

These spring-vibration switches are high sensitivity non-directional vibration induced trigger switches. Inside is a very soft spring coiled around a long metal pin. When the switch is moved, the spring touches the center pole to make contact. So, when there's motion, the two pins will act like a closed switch. When everything is still, the switch is open. Great for basic projects and wearables!

Electrical characteristics:

Maximum Voltage: 12V
Contact Resistance: <10 ohm
Contact Time: 2 ms
Maximum Current: 20mA
Insulation Resistance: >10M ohm
Temperature Range: -40 to 80C
Operating lifespan: 100,000 cycles
Diameter: 5mm/0.2"
Height (w/ pins): 25mm/1"
Height (w/o pins): 15mm/0.6"
Weight: 0.3g
