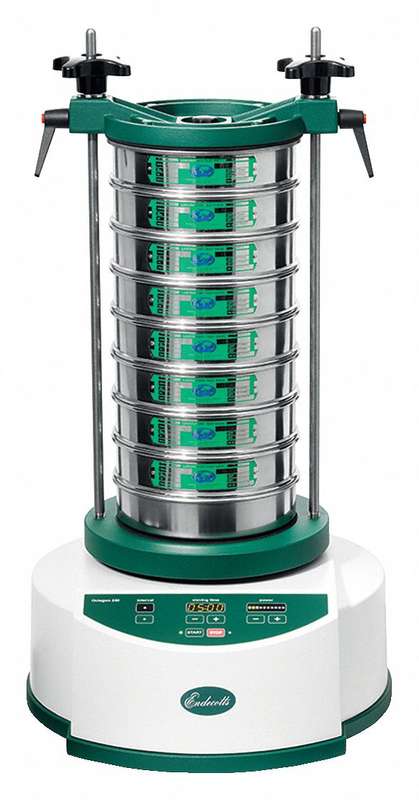

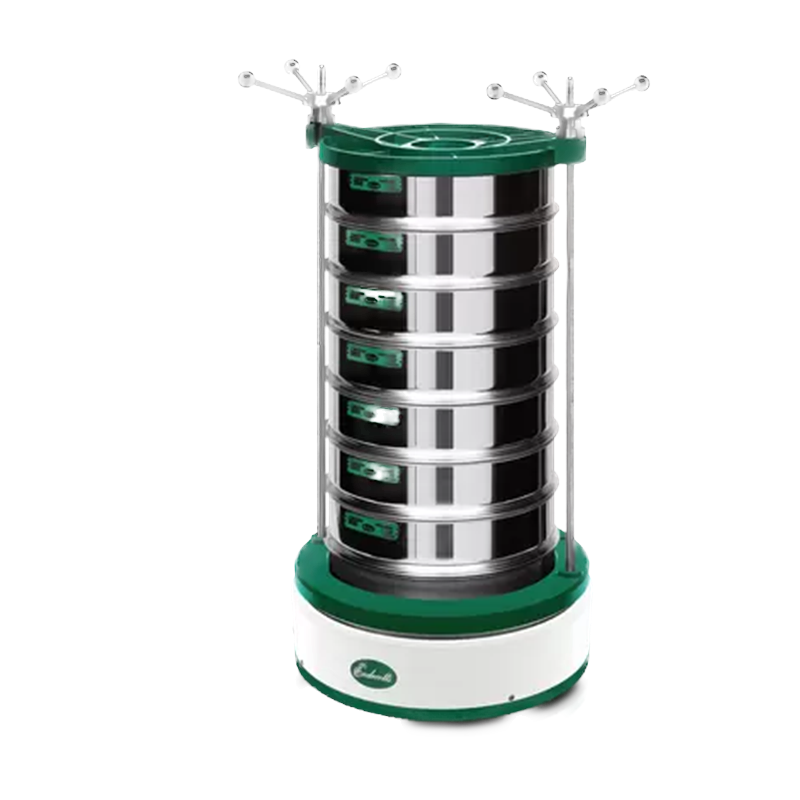

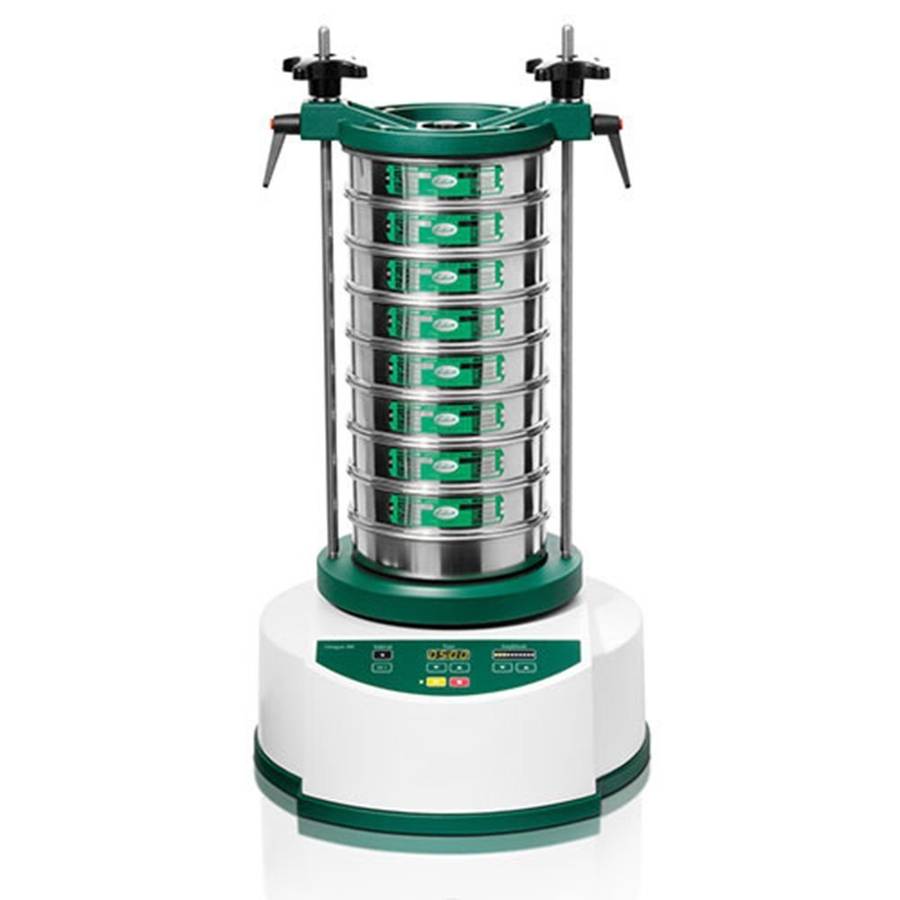

Vibratory Sieve Shaker AS 200 Basic

Vibratory Sieve Shaker AS 200 Basic

Laboratory Vibratory Sieve Shaker AS 200 Basic, 230V, 50Hz

Vibrating Test Sieve Shaker for the fields of pharmacy, metallurgy, foods, cosmetics and grain, and characterised by convenient operation, no rotary component, and electronic controlled amplitude and frequency.

• Clamping device, standard AS 200
• Collecting Pan steel 200mm , height 50mm

Vibratory Sieve Shaker AS 200 basic

TECHNICAL DATA

Applicationsseparation, fractioning, particle size determination
Field of applicationagriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals
Feed materialpowders, bulk materials, suspensions
Measuring range*20 µm - 25 mm
Sieving motionthrowing motion with angular momentum
Max. batch / feed capacity3 kg
Max. number of fractions9 / 17
Max. mass of sieve stack4 kg
Amplitudedigital, 1 - 100% (0 - 3 mm)
Controlled amplitude-
Time displaydigital, 1 - 99 min
Suitable for dry sievingYes
Suitable for wet sievingYes
USB interface-
Including test certificate / can be calibrated-
Suitable sieve diameters100 mm / 200 mm / 203 mm (8")
Max. height of sieve stack510 mm
Clamping devicesstandard, "comfort", each for wet and dry sieving
Protection codeIP 21
Electrical supply datadifferent voltages
Power connection1-phase
W x H x D417 x 212 x 384 mm
Net weight~ 35 kg
StandardsCE
