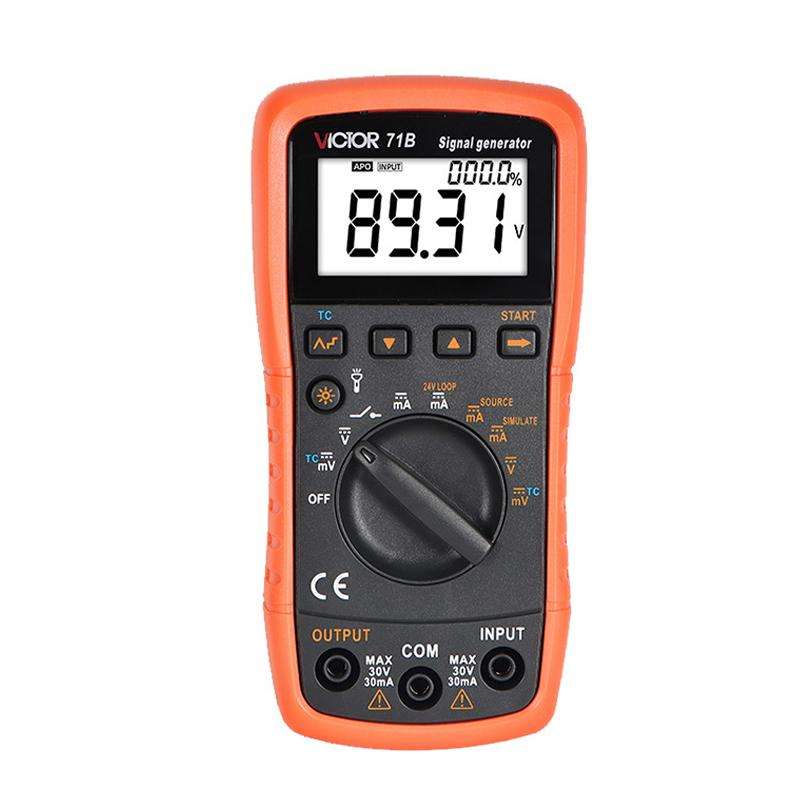

Victor Output Current Voltage Process Signal Source Multimeter, Model: VC71B

Measurement function:
1. DC millivolt voltage: 100mV
2. DC voltage: 30V
3. DC current: 20mA
4. Loop power supply: 24V
5. Switching quantity: Yes
6. Thermocouple: K/E/J/T/B/R/S/N

Output function:
1. DC millivolt voltage: 100mV
2. DC voltage: 10V
3. DC current (active): 20mA
4. DC current (passive): 20mA
5. Manual step output: Yes
6. Automatic waveform output: Yes
7. Thermocouple: K/E/J/T/B/R/S/N

Description:

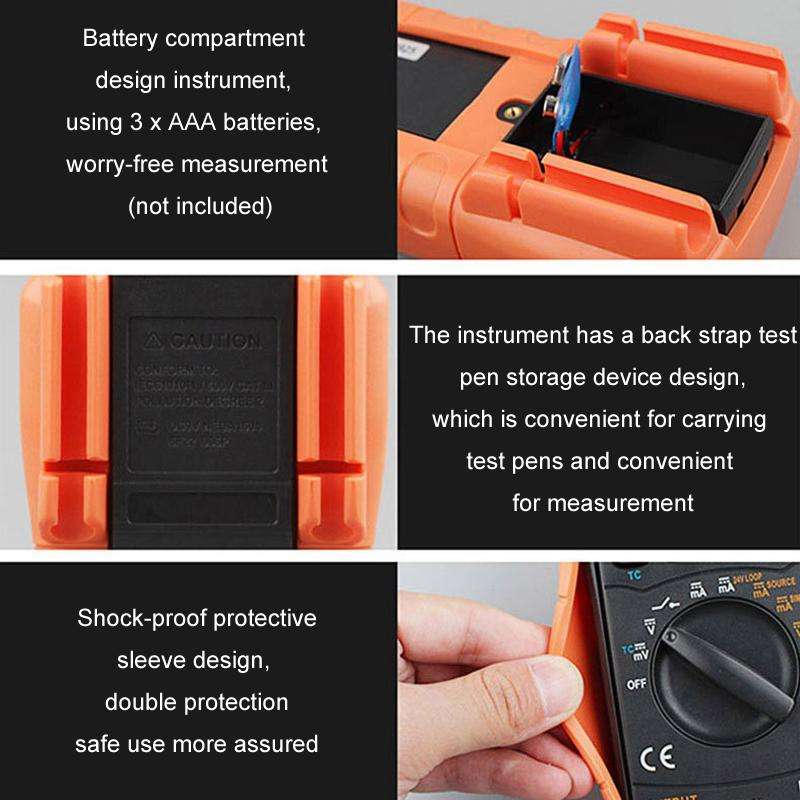

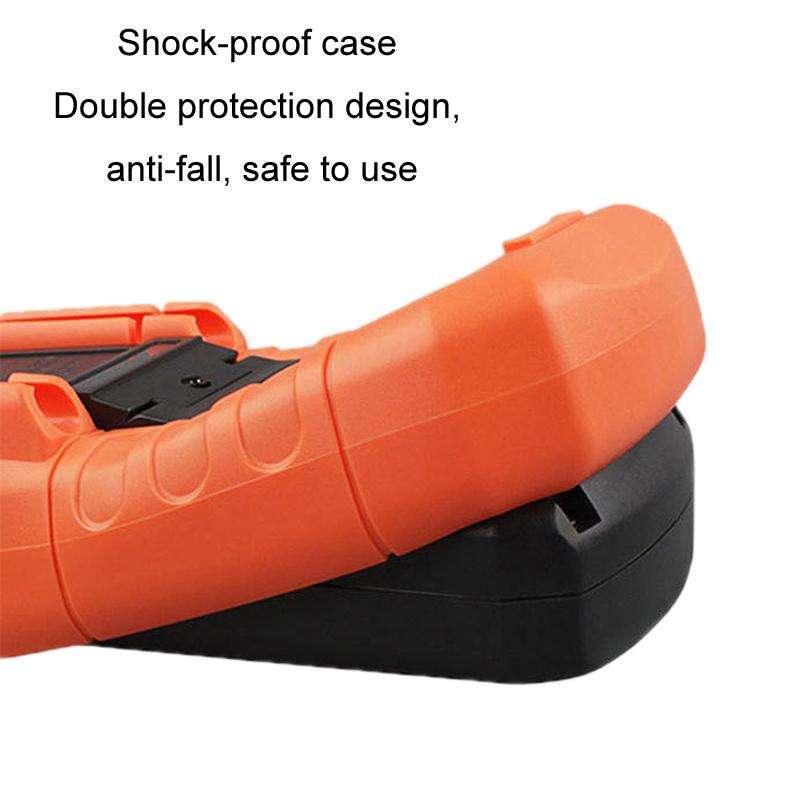

1. Shockproof protective cover, double protection design, anti-fall, safe and reliable to use

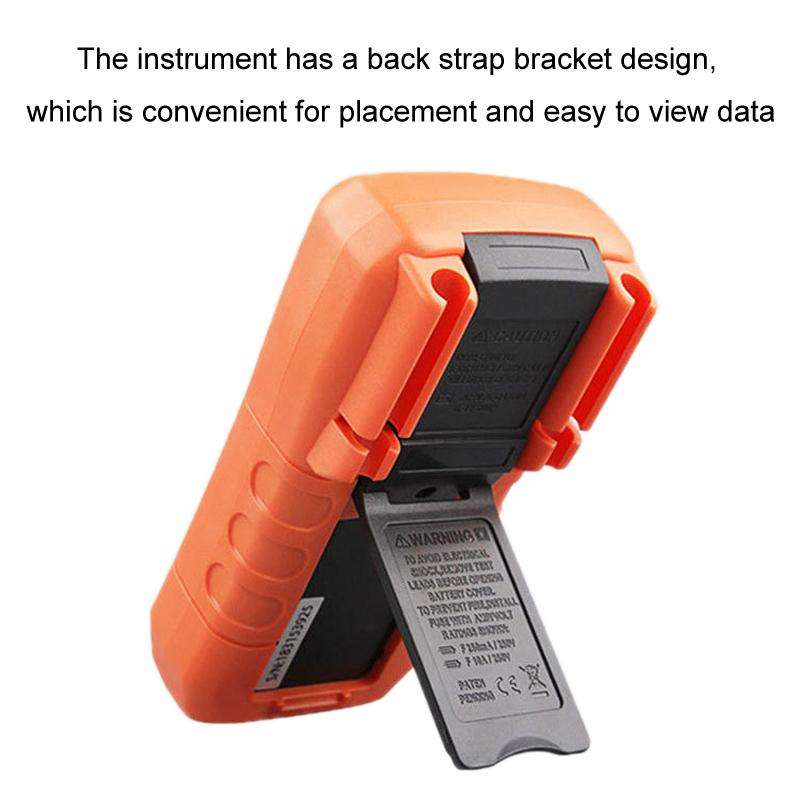

2. The back of the instrument is equipped with a bracket for easy placement and easy data viewing
3. High-definition LCD display, clear writing without ghosting, easy to understand, with backlight display, convenient for operation and measurement in dark environment
4. Battery compartment design instrument, use 3 AAA batteries, worry-free measurement (not included)
5. The back of the instrument is designed with a test pen storage device, which makes it easy to carry the test pen and convenient for measurement
6. Size: 147x75x42mm
7. Weight: about 230g
