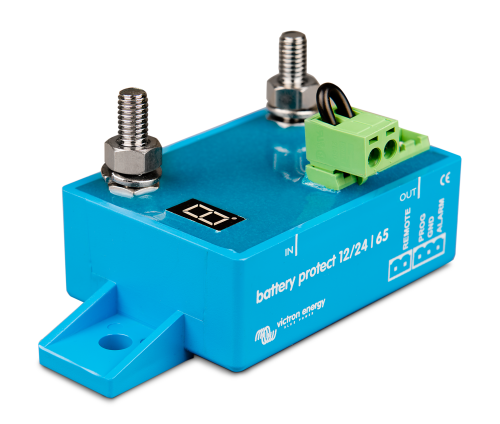

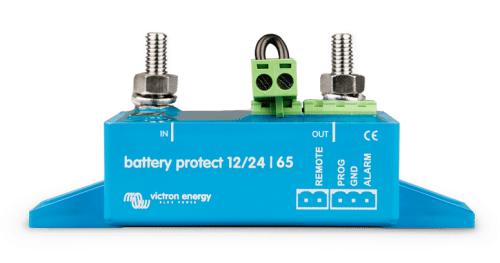

Victron 12/24V-65A Battery Protection

12/24V auto-ranging
The BatteryProtect automatically detects system voltage

Programming made easy
The BatteryProtect can be set to engage/disengage at several different voltages.
The seven-segment display will indicate which setting has been chosen.

A special setting for Li-ion batteries
In this mode, the BatteryProtect can be controlled by the VE. Bus BMS.
Note: the BatteryProtect can also be used as a charge interrupter in between a battery charger and a Li-ion
battery. See the connection diagram in the manual.

Ultra-low current consumption
This is important in the case of Li-ion batteries, especially after low voltage shutdown.
Please see our Li-ion battery datasheet and the VE. Bus BMS manual for more information.

Overvoltage protection
To prevent damage to sensitive loads due to over-voltage, the load is disconnected whenever the DC voltage
exceeds 16V respectively 32V.

Ignition proof
No relays but MOSFET switches, and therefore no sparks.

Delayed alarm output
The alarm output is activated if the battery voltage drops below the preset disconnect level during more than
12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof
open collector output to the negative (minus) rail, max. current 50 mA. The alarm output is typically used to
activate a buzzer, LED, or relay.

Delayed load disconnect and delayed reconnect
The load will be disconnected 90 seconds after the alarm has been activated. If the battery voltage increases
again to the connect threshold within this time period (after the engine has been started for example), the load
will not be disconnected.
The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset
reconnect voltage.
