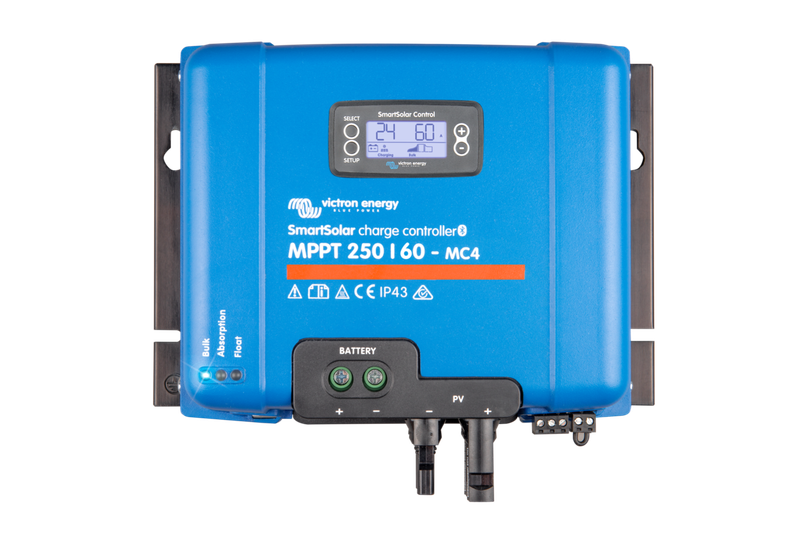

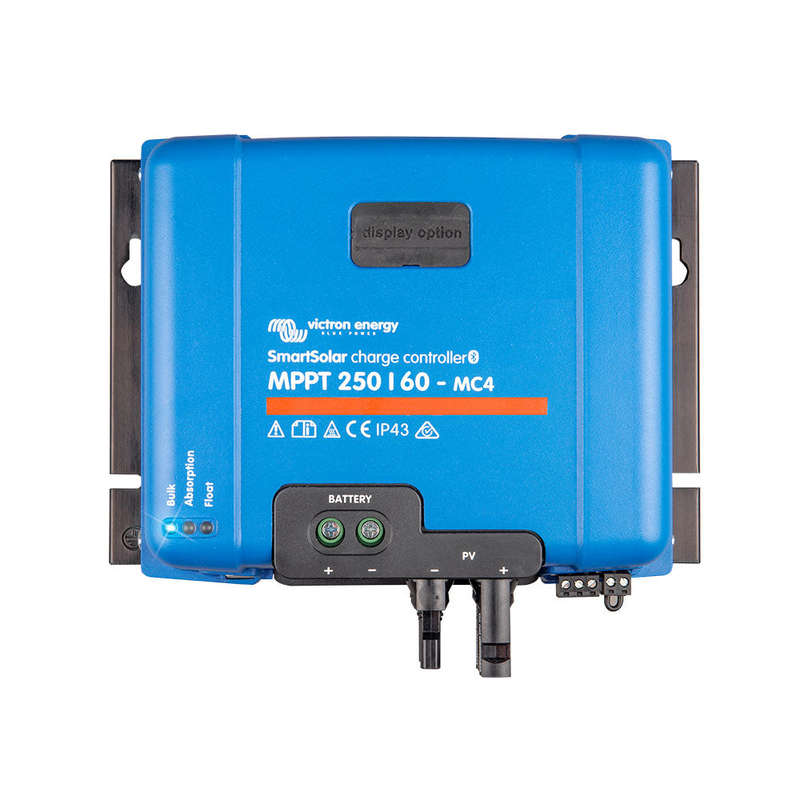

Victron Energy SmartSolar MPPT 250/60-MC4 12/24/36/48V-60A

Bluetooth Smart built-in: dongle not neededThe wireless solution to set-up, monitor and update the controller using Appleand Android smartphones, tablets or other devices.VE.DirectFor a wired data connection to a Color Control panel, PC or other devicesUltra-fast Maximum Power Point Tracking (MPPT)Especially in case of a clouded sky, when light intensity is changingcontinuously, an ultra-fast MPPT controller will improve energy harvest by up to30% compared to PWM charge controllers and by up to 10% compared to slower MPPTcontrollers.Load outputOver-discharge of the battery can be prevented by connecting all loads to theload output. The load output will disconnect the load when the battery has beendischarged to a pre-set voltage.Alternatively, an intelligent battery management algorithm can be chosen: seeBattery Life.The load output is short circuit proof.Battery Life: intelligent battery managementWhen a solar charge controller is not able to recharge the battery to its fullcapacity within one day, the result is often that the battery will continuallybe cycled between a 'partially charged' state and the 'end of discharge' state.This mode of operation (no regular full recharge) will destroy a lead-acidbattery within weeks or months. The Battery Life algorithm will monitor thestate of charge of the battery and, if needed, day by day slightly increase theload disconnect level (i.e. disconnect the load earlier) until the harvestedsolar energy is sufficient to recharge the battery to nearly the full 100%. Fromthat point onwards the load disconnect level will be modulated so that a nearly100% recharge is achieved about once every week.Programming, real-time data and history display options- Modern Apple and Android smartphones, tablets, macbooks and other devices: seethe VE.Direct Bluetooth Smart dongle and the MPPT app discWeight:3.6 kgMin PPT Voltage:13 VMax PPT Voltage:245 VDC Startup Voltage:49 VDC Shutdown Voltage:49 VMax Input Voltage:250 VMax DC Power:3,168 WMax DC Current:50 AMax DC Inputs:6Has DC Fuses:0Connector:MC4Included Connectors:0MPPT Quantity :1Has Integrated DC Switch:NoWhat's in the box1x SmartSolar MPPT 250/60-MC4 12/24/36/48V-60A
