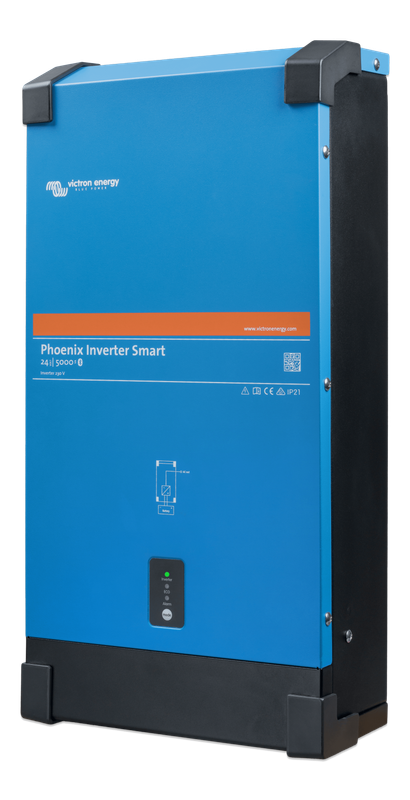

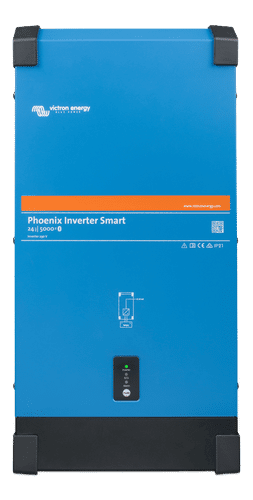

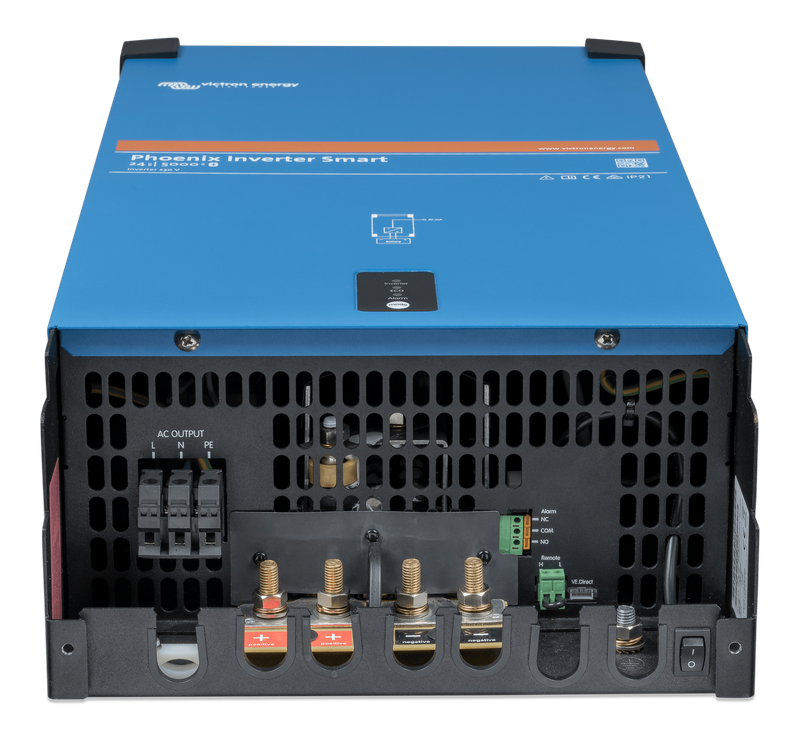

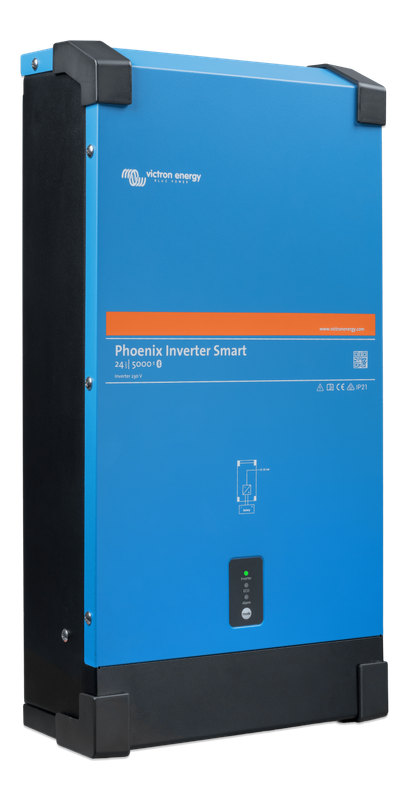

The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field-tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA, 3000VA, and 5000VA for 12, 24, or 48V systems.It's powerful enough to supply the most common plug-in appliances in your car, boat, caravan, or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency, and high-quality sine-wave. Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.Bluetooth is built-in and makes setting up your high power inverter easier than ever before.Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode, and more, all from within VictronConnect.
Models:12 / 24 / 48 Volt
Bluetooth built-in: fully configurable with a tablet or smartphone
Low battery voltage alarm Low battery voltage cut-off and restart levels Dynamic cut-off: load-dependent cutoff level Output voltage: 210 245V Frequency: 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Alarm relayMonitoring: In- and output voltage, load, and alarms
VE.Direct communication port
The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) toconfigure and monitor the same parameters.
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years.The inverters are short circuit proof and protected against overheating, whether due to overloador high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a presetvalue. Once on standby, the inverter will switch on for a short period every 2,5 seconds(adjustable).If the load exceeds the preset level, the inverter will remain on.
Remote on/off
A remote on/off switch or relay contact can be connected to a two-pole connector.Alternatively, the H terminal (left) of the two-pole connector can be switched to battery plus, orthe L terminal (right) of the two-pole connector can be switched to battery minus (or the chassisof a vehicle, for example).
LED diagnosis
Please see the manual for a description.
To transfer the load to another AC source: the automatic transfer switch
For our low power inverters, we recommend our Filax Automatic Transfer Switch. The Fixfeatures a very short switchover time (less than 20 milliseconds) so that computers and otherelectronic equipment will continue to operate without disruption. Alternatively use a MultiPluswith a built-in transfer switch.
