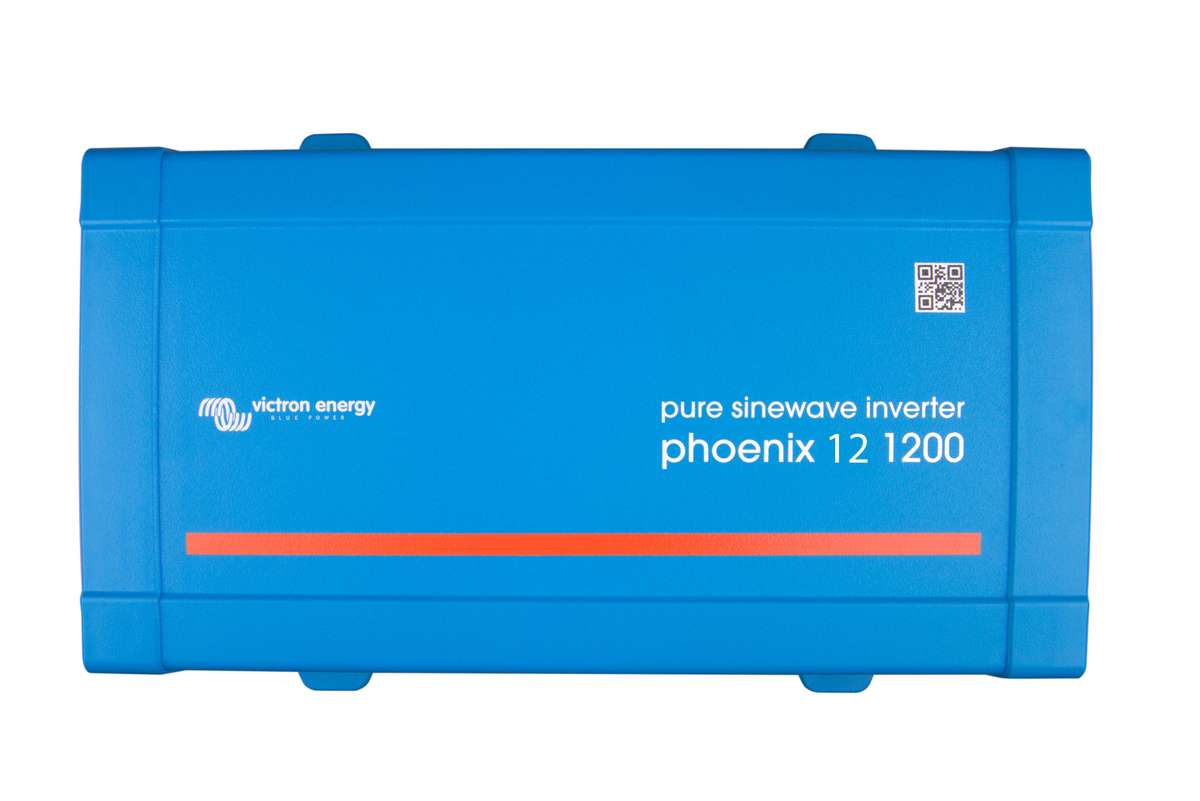

Victron Pure Sinewave Phoenix Inverter 12/1200 230V VE.Direct IEC

Inverters allow you to power domestic equipment - requiring 230V AC - using 'leisure' or 'automotive' batteries rated at 12V DC

Fully configurable:

- Low battery voltage alarm trip and reset levels

- Low battery voltage cut-off and restart levels

- Dynamic cut-off: load dependent cut-off level

- Output voltage 210 - 245V

- Frequency 50 Hz or 60 Hz

- ECO mode on/off and ECO mode sense level

Monitoring:

- In- and output voltage, % load, and alarms

Proven reliability:

The full bridge plus toroidal transformer topology has proven its reliability over many years.

The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power:

Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset

value (min load: 15W).

Once in standby, the inverter will switch on for a short period (adjustable,

default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off:

A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.

Features

- VE.Direct communication port

- The VE.Direct port can be connected to:

- A computer (VE.Direct to USB interface cable needed)

- Apple and Android smartphones, tablets, MacBook s and other devices (VE.Direct Bluetooth Smart dongle needed)

Specifications

- Cont. power at 25 degrees Celsius: 1000W

- Peak power: 2200W

- Output AC voltage / frequency: 230VAC +/- 3%, 50Hz +/- 0,1%

- Input voltage range: 9,2 - 17V

- DC low shut down 9.3V

- Max. efficiency: 91%

- Zero-load power: 7W

- Maximum cable cross-section: 35mm squared

- Standard AC outlet: IEC-320 (male plug included)

- Protection category: IP 21
