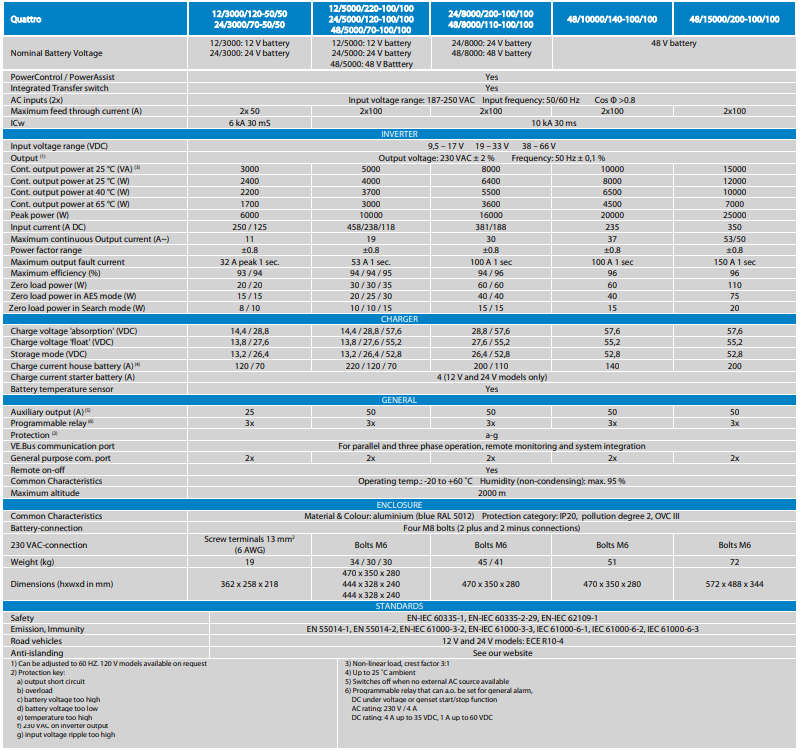

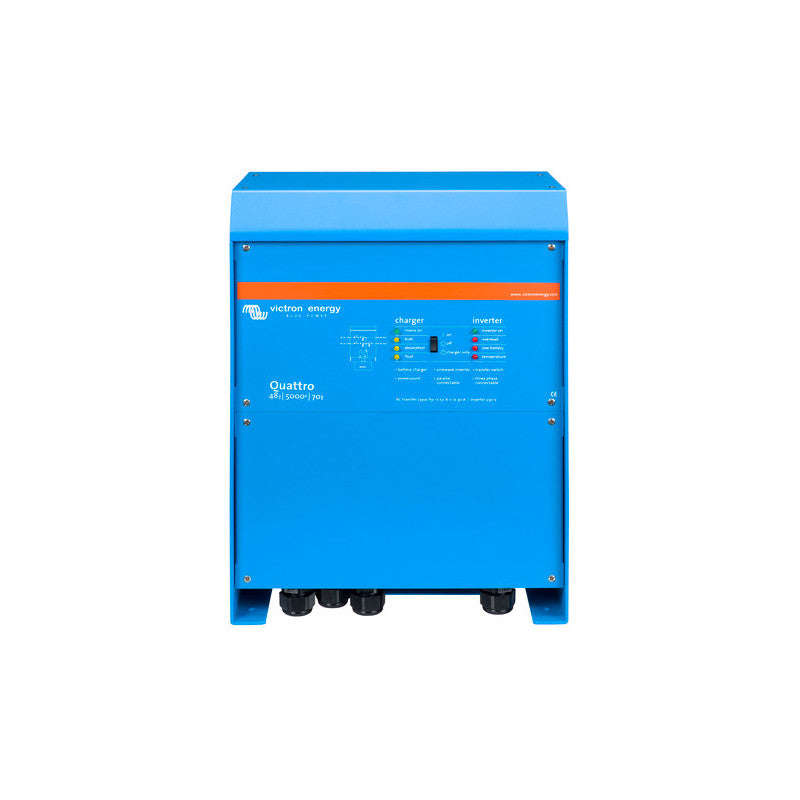

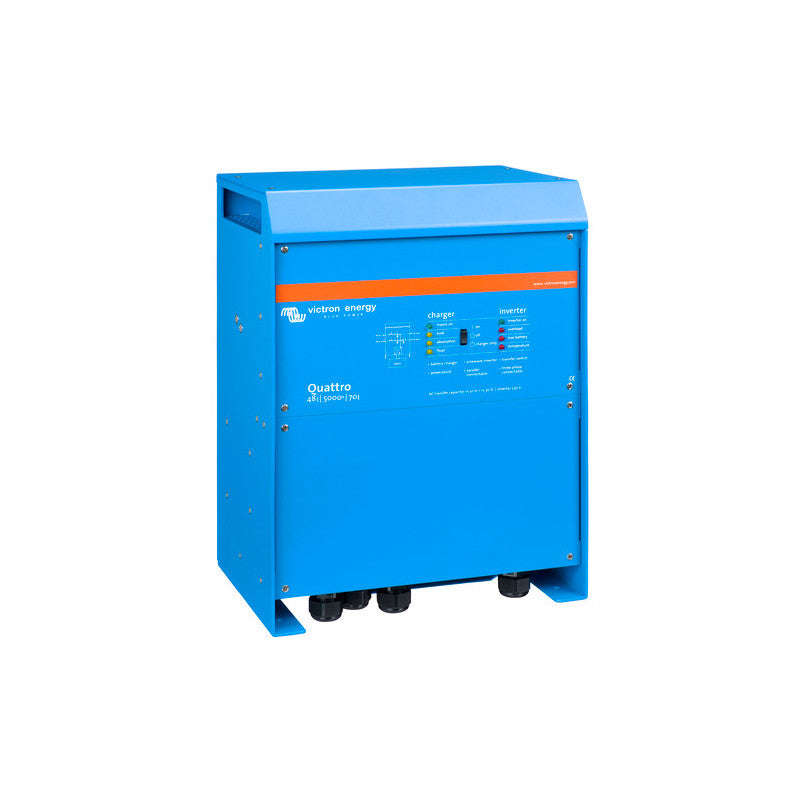

Pure Sine Wave Inverter / Charger2 AC Inputs and Auto connects to active sourceadaptive charging, hybrid PowerAssist technology, plus multiple systemintegration features such as 3ph or 1ph / parallel operation.5000VA / 4000W @ 25°C48VDC, 70A Charger, Lithium Ion battery compatible230VAC[HTTPS://CREATEENERGY.CO.ZA/IMG/CMS/VICTRON_QUATTRO_2_INPUTS_2_OUTPUTS_1.JPG]TWOAC INPUTS & TWO AC OUTPUTSThe Quattro can be connected to two independent AC sources, for exampleshore-side power and a generator, or two generators. The Quattro willautomatically connect to the active source. The main output has no-breakfunctionality. In the event of a grid failure, or shore or generator power beingdisconnected, the Quattro takes over the supply to the connected loads. Thishappens so fast (less than 20 milliseconds) that computers and other electronicequipment will continue to operate without disruption. The second output is liveonly when AC is available on one of the inputs of the Quattro. Loads that shouldnot discharge the battery, such as air-conditioning or a water heater can beconnected to this output.[https://createenergy.co.za/img/cms/victron_quattro_2_inputs_2_outputs_2.jpg][HTTPS://CREATEENERGY.CO.ZA/IMG/CMS/POWER%20ASSIST.JPG] UNIQUE POWERASSISTFEATURE The Quattro will prevent overload of a limited AC source, such as a generator orshore power connection. First, battery charging will automatically be reducedwhen otherwise an overload would occur. The second level will boost the outputof a generator or shore side supply with power taken from the battery.[https://createenergy.co.za/img/cms/Power%20Assist%202.jpg][HTTPS://CREATEENERGY.CO.ZA/IMG/CMS/UNLIMITED%20PARALLEL.JPG]VIRTUALLY UNLIMITEDPOWER THANKS TO PARALLEL OPERATIONUp to 6 Quattros can operate in parallel to achieve higher power output. Threephase or split phase operation is also possible. Please check our datasheets tosee which models have paralleling, three phase and split phase capabilities.[https://createenergy.co.za/img/cms/Unlimited%20Parallel%202.jpg][HTTPS://CREATEENERGY.CO.ZA/IMG/CMS/REMOTE%20MONITORING.JPG]REMOTE MONITORINGAND CONTROLMonitor and control your Quattro and system or systems' locally (LAN) orremotely via the internet from anywhere in the world, using the free VRM app andfree VRM portal website [https://vrm.victronenergy.com/landingpage]. Access canbe from a phone, tablet, laptop or PC for multiple operating systems. There isno end to the level of control, via the required Color Control GX or Venus GX,from adjusting your Quattro to setting a Geofence for hire vehicles and more...[https://createenergy.co.za/img/cms/Remote%20Monitoring%202.jpg]TWO AC INPUTS WITH INTEGRATED TRANSFER SWITCHThe Quattro can be connected to two independent AC sources, for example thepublic grid and a generator, or twogenerators. The Quattro will automatically connect to the active source.TWO AC OUTPUTSThe main output has no-break functionality. The Quattro takes over the supply tothe connected loads in the event of agrid failure or when shore/generator power is disconnected. This happens so fast(less than 20 milliseconds) thatcomputers and other electronic equipment will continue to operate withoutdisruption.The second output is live only when AC is available on one of the inputs of theQuattro. Loads that should not dischargethe battery, like a water heater for example, can be connected to this output.VIRTUALLY UNLIMITED POWER THANKS TO PARALLEL OPERATIONUp to 6 Quattro units can operate in parallel. Six units 48/10000/140, forexample, will provide 48kW / 60kVA outputpower and 840 Amps charging capacity.SPLIT PHASE OPTIONSTwo units can be stacked to provide 120-0-120V, and additional units can beparalleled up to a total of 6 units perphase, to supply up to 30kW / 36kVA of split phase power.Alternatively, a split phase AC source can be obtained by connecting ourautotransformer (see data sheet onwww.victronenergy.com) to a 'European' inverter programmed to supply 240V /60Hz.THREE PHASE CAPABILITYThree units can be configured for three phase output. But that's not all: up to6 sets of three units can be parallelconnected to provide 144kW / 180kVA inverter power and more than 2500A chargingcapacity.POWERCONTROL DEALING WITH LIMITED GENERATOR, SHORE SIDE OR GRID POWERThe Quattro is a very powerful battery charger. It will therefore draw a lot ofcurrent from the generator or shore sidesupply (16A per 5kVA Quattro at 230VAC). A current limit can be set on each ACinput. The Quattro will then takeaccount of other AC loads and use whatever is spare for charging, thuspreventing the generator or mains supply frombeing overloaded.POWERASSIST BOOSTING SHORE OR GENERATOR POWERThis feature takes the principle of PowerControl to a further dimension allowingthe Quattro to supplement thecapacity of the alternative source. Where peak power is so often required onlyfor a limited period, the Quattro willmake sure that insufficient mains or generator power is immediately compensatedfor by power from the battery. Whenthe load reduces, the spare power is used to recharge the battery.SOLAR ENERGY: AC POWER AVAILABLE EVEN DURING A GRID FAILUREThe Quattro can be used in off grid as well as grid connected PV and otheralternative energy systems.Loss of mains detection software is available.SYSTEM CONFIGURING * In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure. * Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software. * Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).ON-SITE MONITORING AND CONTROLSeveral options are available: Battery Monitor, Multi Control Panel, ColorControl GX or other GX devices, smartphone ortablet (Bluetooth Smart), laptop or computer (USB or RS232).REMOTE MONITORING AND CONTROLColor Control GX or other GX devices.Data can be stored and displayed on our VRM (Victron Remote Management) website,free of charge.REMOTE CONFIGURINGWhen connected to the Ethernet, systems with a Color Control GX or other GXdevice can be accessed and settings canbe changed remotely.
