A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.
Features
-Bluetooth Smart built-in
-VE.Direct
-Ultrafast Maximum Power Point Tracking (MPPT)
-Advanced Maximum Power Point Detection in case of partial shading conditions
-Outstanding conversion efficiency
-Flexible charge algorithm
-Extensive electronic protection
-Internal temperature sensor
-Optional external battery voltage and temperature sensing via Bluetooth-
-Fully discharged battery recovery function
Specifications
-Battery voltage; 12/24V Auto Select
-Rated charge current; 30A
-Nominal PV power, 12V; 440W
-Nominal PV power, 24V; 880W
-Maximum PV open circuit voltage; 100V
-Max. PV short circuit current; 35A
-Maximum efficiency; 98%
-Self-consumption; 12V: 30 mA 24V: 20 mA
-Charge algorithm; multi-stage adaptive
-Protection; PV reverse polarity, Output short circuit, Over temperature
-Power terminals; 16 mm² / AWG6
What's in the box

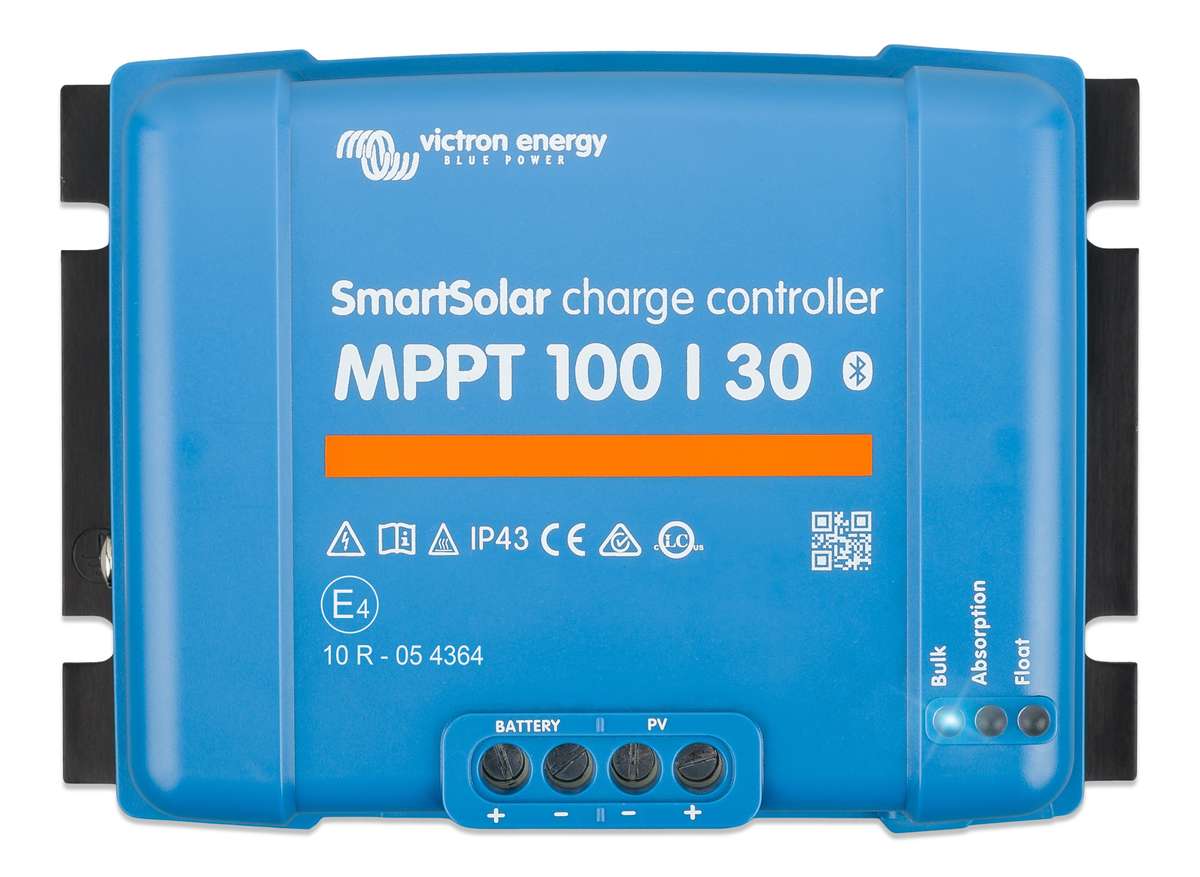

- 1 x SmartSolar MPPT 100/30
- 1 x User Guide
