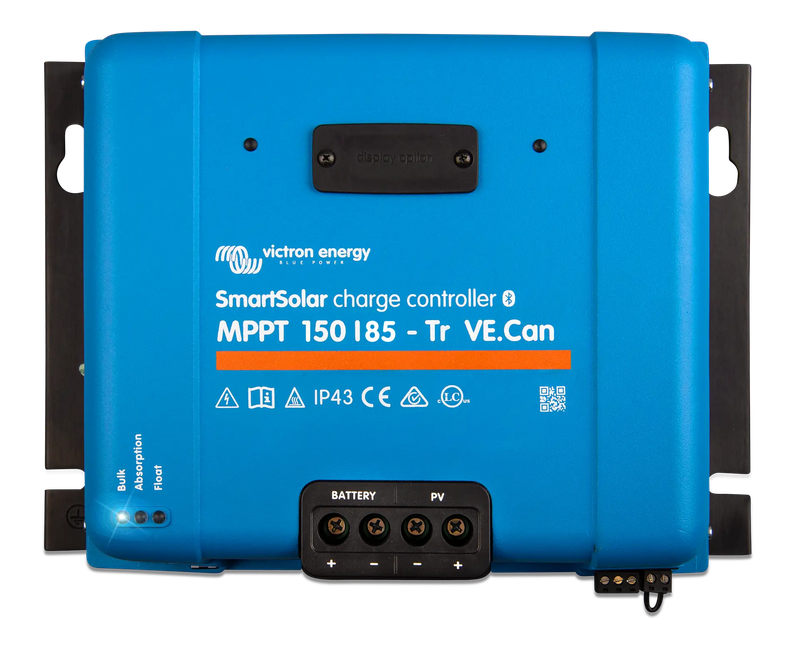

Victron SmartSolar MPPT 150/85-Tr VE.Can

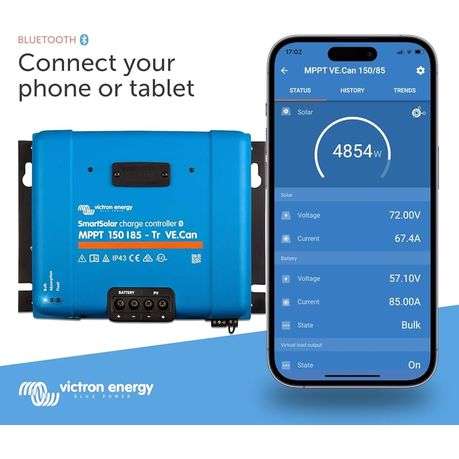

Bluetooth Smart built-inThe wireless solution to set-up, monitor, update and synchronize SmartSolarCharge Controllers.Ultra-fast Maximum Power Point Tracking (MPPT)Especially in the case of a clouded sky, when light intensity is changingcontinuously, an ultra-fast The MPPT controller will improve energy harvest byup to 30% compared to PWM charge controllers and by up to 10% compared to slowerMPPT controllers.Advanced Maximum Power Point Detection in case of partial shading conditionsIf partial shading occurs, two or more maximum power points (MPP) may be presenton the power-voltage curve.Conventional MPPTs tend to lock to a local MPP, which may not be the optimumMPP.The innovative SmartSolar algorithm will always maximize energy harvest bylocking to the optimum MPP.Outstanding conversion efficiencyNo cooling fan. Maximum efficiency exceeds 98%.Flexible charge algorithmFully programmable charge algorithm (see the software page on our website), andeight preprogrammed algorithms, selectable with a rotary switch (see the manualfor details).Extensive electronic protectionOver-temperature protection and power derating when the temperature is high.PV short circuit and PV reverse polarity protection.PV reverse current protection.Internal temperature sensorCompensates absorption and float charge voltage for temperature.Optional external battery voltage and temperature sensing via BluetoothA Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used tocommunicate batteryvoltage and temperature to one or more SmartSolar Charge Controllers.Fully discharged battery recovery functionWill initiate charging even if the battery has been discharged to zero volts.Will reconnect to a fully discharged Li-ion battery with an integrateddisconnect function.VE.DirectFor a wired data connection to a Color Control GX, other GX products, PC orother devicesRemote on-offTo connect for example to a VE. BUS BMS.Programmable relayIt can be programmed to trip on an alarm, or other events.Optional: SmartSolar pluggable LCD displaySimply remove the rubber seal that protects the plug on the front of thecontroller, and plug-in the display
