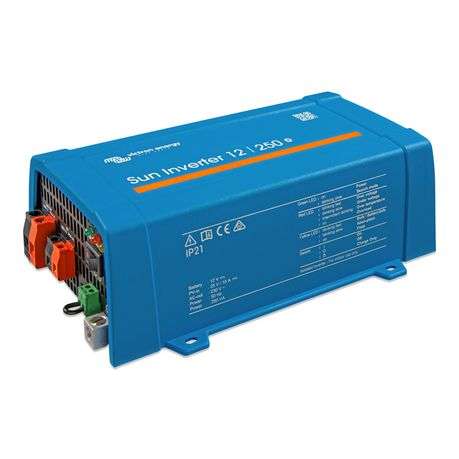

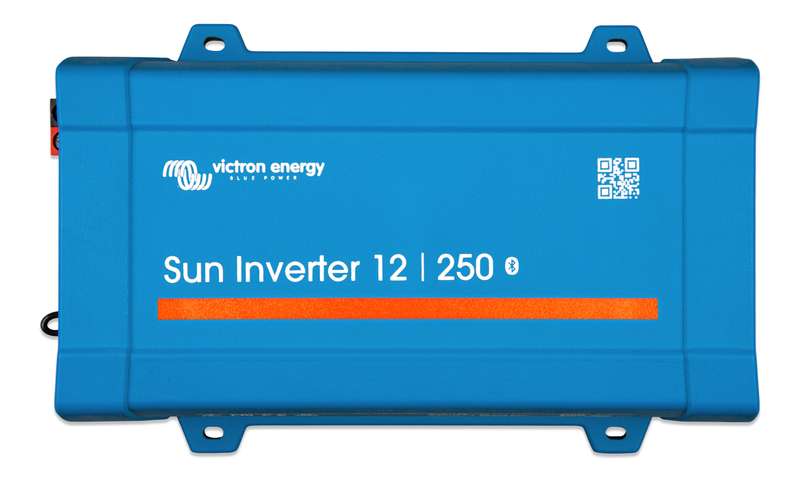

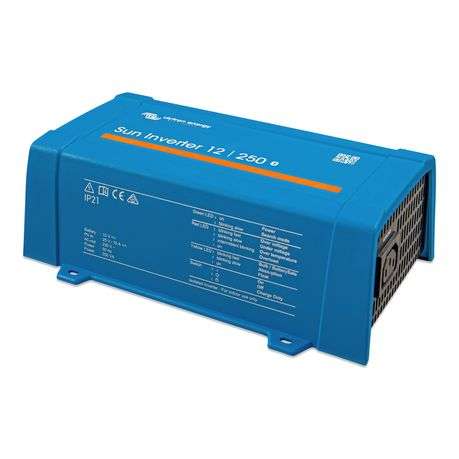

Victron Sun Inverter 12/250 IEC-320

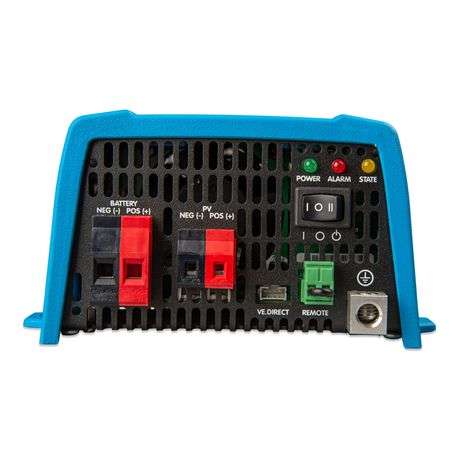

The Sun Inverter combines a sinewave inverter and a PWM solar charger in oneenclosure and is easy to install, with a minimum of wiring.The inverter allows you to power domestic equipment - requiring 230V AC - using'leisure' or 'automotive' batteries rated at 12VDC. The solar charger ensuresthat the batteries are being charged by energy harvested from your solar panels.The charge algorithm is programmable.The inverter and solar charger parameters can be read out via Bluetooth usingthe VictronConnect app. In addition to this, the inverter has a VE. Direct Portfor connection to a GX device or GlobalLink 520 for system monitoring.Proven reliabilityThe full bridge plus toroidal transformer topology has proven its reliabilityover many years. The inverters are short-circuited proof and protected againstoverheating, whether due to overload or high ambient temperature.High start-up powerNeeded to start loads such as power converters for LED lamps, halogen lamps, orelectric tools.ECO modeWhen in ECO mode, the inverter will switch to standby when the load decreasesbelow a pre-set value (min load: 15 W). Once on standby, the inverter willswitch on for a short period (adjustable, default: every 2,5 seconds). If theload exceeds a pre-set level, the inverter will remain on.PWM solar chargerThe solar charger ensures that the batteries are charged by energy harvestedfrom your solar panels. The charge algorithm is programmable.Remote on/offThe Phoenix Inverter Control VE. A Direct Remote panel (not included) can beused to turn the inverter on or off remotely. Alternatively, a remote on/offswitch can be connected to a two-pole connector or between the battery plus andthe left-hand contact of the two-pole connector.BluetoothThe inverter and solar charger parameters can be read, monitored, and configuredvia Bluetooth using the VictronConnect app.VE.Direct communication portThe VE. Direct Port can be used for connection to a GX device, GlobalLink 520for monitoring via the VRM portal or for connection to a computer for monitoringor configuring using the VictronConnect app.Monitoring via the VictronConnect app or GX device: Inverter in- and output voltage and % load Solar power, voltage, and current Operational state and alarmsFully configurable via the VictronConnect app: Low battery voltage alarm trip and reset levels Low battery voltage cut-off and restart levels Dynamic cut-off: load-dependent cut-off level Output voltage 210 245 V and Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Battery charge current, algorithm, and voltages Battery charge temperature compensation or low-temperature cut of levelFeatures-Proven reliability-High start-up power-ECO mode-PWM solar charger-Remote on/off-LED diagnosis-Bluetooth-VE.Direct communication port-Monitoring via the VictronConnect app or GX device-Fully configurable via the VictronConnect app-DC and PV connections with screw terminalsSpecifications-Cont. power at 25 °C 250VA-Peak power 400W-AC output voltage / frequency (adjustable) 230 Vac +/- 3 % 50Hz or 60Hz +/- 0.1%-DC input voltage range 9.2 - 17 VDC-DC low shut down (adjustable) 9.3VDC-Dynamic (load dependent) DC low shut down Configurable via the "dynamiccut-off" setting-DC low restart and alarm (adjustable) 10.9 VDC-Battery charged detect (adjustable) 14.0 VDC-Max. efficiency 87%-Zero-load power 4.2W-Default zero-load power in ECO mode 0.8W-Solar charger technology Pulse Width Modulation (PWM)-Maximum PV voltage current and power 25 V / 15 A / 375 W-Solar panel type 36-cell solar panel-Charge voltages Adjustable and able to be temperature compensated-Operating temperature range -40 to +60 °C (fan-assisted cooling) / Output powerduration: 1.25 % per °C above 40 °C-Humidity (non-condensing) max 95 %-Bluetooth wireless communication For remote monitoring and configuration-VE.Direct communication port For remote monitoring and configuration What's in the box * 1 x Sun Inverter 12/250-15 IEC * 1 x IEC Plug * 1 x User Guide
