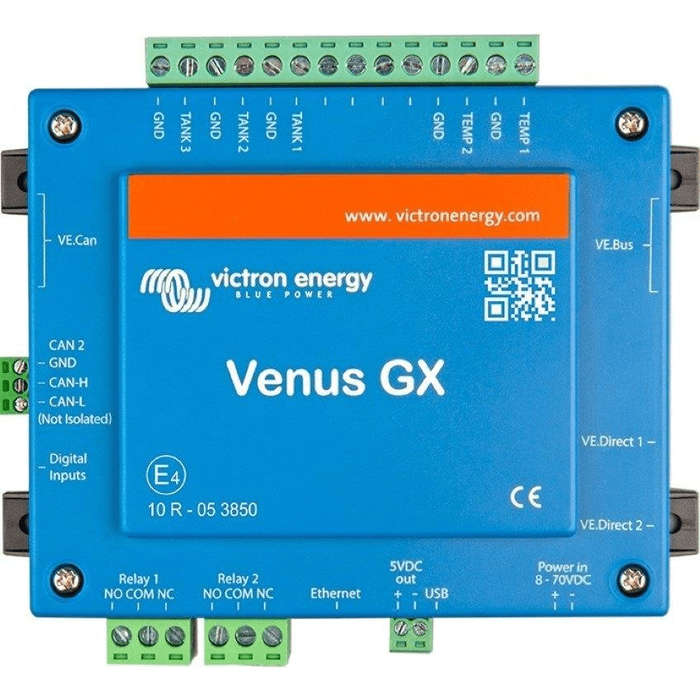

Victron Venus GX Central Communication Gateway
Panels and system monitoring
The Venus GX is the communication-centre of your installation. Venus allows you to talk to all components in your system and ensure they are working in harmony. Monitoring of live data, and changing settings is performed by using your smartphone (or other device) via our free-to-use Victron Remote Management Portal (VRM).
Intuitive system overview - all you need to know
As soon as you 'log on' Venus GX provides an instant overview of your system: Battery state of charge; present power consumption; power harvest from PV; power provision from mains/generator.
The full power of Victron Remote Management
Victron Remote Management (VRM) provides you with full access to the very extensive controls and settings of all system-components which are connected to either your CCGX or Venus GX. It allows remote user and installer login - from anywhere, at anytime. This powerful application also provides for hassle-free diagnostic checks and analysis of archived information.
Automatic Generator start/stop
The Venus GX can be programmed to auto-start your generator - triggered by low-voltage; high-demand; or battery state of charge. It can be further tailored to delay ignition until the end of 'quiet' periods - avoiding accidental nuisance at dead of night.
Remote Console - control everything from anywhere...
Remote Console provides visual access to the live data and settings of your Venus GX ...and because it's remote - you can do that from anywhere in the world.
ESS: Energy Storage Systems - 24 hour Monitoring
The Venus GX manages Energy Storage Systems. It keeps back-up batteries at 100% ; kicks-in during power-cuts; and diverts excess (solar) power to self-consumption - saving you money. For examples and more detailed information see the ESS (Energy Storage System) manual.
Remotely Monitor your boat or motorhome electrics
Planning a trip? Remote monitoring of your Venus GX allows you to make sure your boat or motorhome are ready to go. Venus GX also allows you to talk to connected equipment from other manufacturers. And with Venus GX you can check the tanks, too.
Features:
- VRM Online Portal.
- Remote Console on VRM.
- Automatic genset start/stop.
- The heart of ESS — Energy Storage.
- Data logging.
Supported products:
- Multis and Quattros, including split-phase and three-phase systems. Monitoring and control (on/off and current limiter). Changing configuration is possible (only remotely via the internet, not without an internet connection).
- EasySolar 1600VA.
- BlueSolar MPPT Solar Chargers with a VE.Direct port.
- BlueSolar MPPT 150/70 and the MPPT 150/85 with VE.Can port. When multiple BlueSolar MPPTs with VE.Can are used in parallel, the all information is combined as one.
- BMV-700 family can be connected directly to the VE.Direct ports on the Venus GX. Use the VE.Direct Cable for this.
- When more than two VE.Direct products must be connected, USB can be used.
Specifications:
Power supply voltage range: 8 — 70V DC
Current Draw: 210 mA - 12V, 110 mA - 24V, 60 mA - 48V.
Communication ports
VE.Direct: 2 separate VE.Direct ports — isolated.
VE.Can: 2 paralleled RJ45 sockets — isolated.
CAN 2nd: CAN interface — non isolated.
VE.Bus: 2 paralleled RJ45 sockets — isolated.
USB 2: USB Host ports — not isolated.
Ethernet: 10/100/1000MB RJ45 socket — isolated except shield
WiFi Access Point: Use to connect to Remote Console
WiFi Client: Connect the Venus GX to an existing WiFi network
IO:
- Potential free contact: NO/COM/NC — 6 A 250 VAC/30 VDC.
- Tank level inputs: 3 x Configurable for European (0 - 180 Ohm) or US (240 - 30 Ohm).
