Video Camera Parking Sensor 3 in 1 with 4.3" Monitor (Sensor + Camera Combine Together)

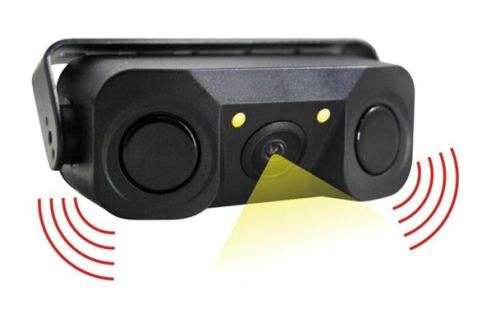

3 in 1 Video camera parking sensor

2 sensors + 1 camera combine together

This backup monitor includes back-up camera and parking sensors system. The backup camera kit designed to display the reverse image on the monitor from rearview camera, duplicating and clarifying the view seen on the rear-view mirror. It’s a perfect solution for vehicles with poor rear-view visibility. The system is complete with a color 4.3in LCD monitor,  day and night vision camera, and all necessary wires, connectors and mounting hardware. The system is weather proof, strong and reliable and shock resistant

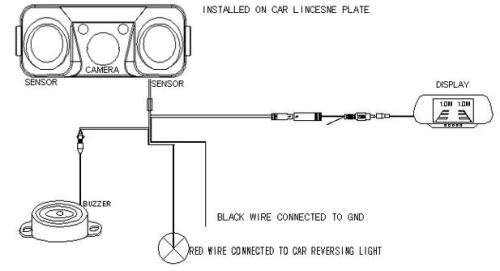

To install backup sensor and camera system;
Just run the wire from backup module to tail light socket. Then clamp the wires to taillight socket or attach wires with scotch locks. We will include detailed manual and diagram for parking sensor installation.

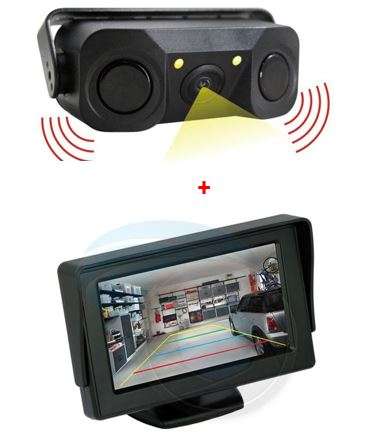

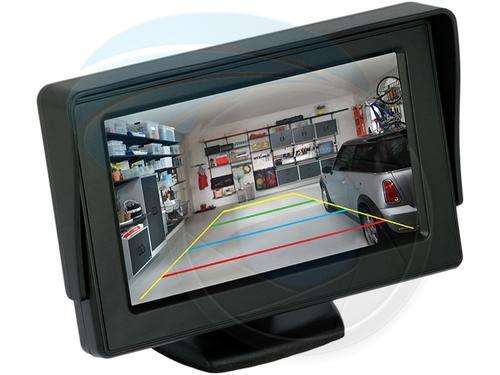

Includes 4.3" Monitor

One product, two functions

New video parking sensor includes one camera, 2 sensors and 2 LEDs,

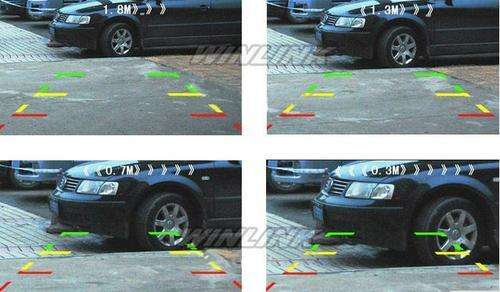

 View on monitor image and distance when reversing your car or parking

Measure distance between 0.3—2.0M.

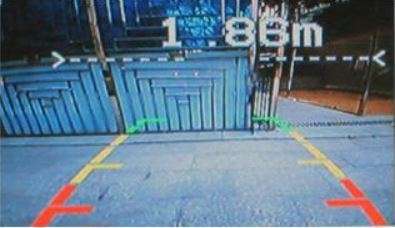

Colour OSD digital and park line displays on the screen.

High quality camera and wide angel .

Alarm by BI-BI.

High quality and easy to install

Technical Parameters:
1. Rated Voltage: 12V DC
2. Operating Range: 10.5Vï½Âž 16V DC
3. Rated Current:  60mA
4. Detecting Distance: 0.3—2.0M.
5. Ultrasonic Frequency: 40KHz
6. Image sensor:  CMOS PC6070K
7. Total pixels: 640 x 480
8. Resolution: 480 TV lines
9. Mini illumination: 0.1 lux
10. TV system: PAL/NTSC
11. Angle: 170 degree
12. Video output: 1.0Vpp composite video at 75 ohms
13. Operating temperature: -20 - 70 deg. C
14. Adjustable bracket for better view angle
