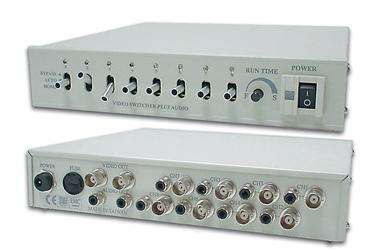

enables a single monitor to display the output for 1 to 8 cameras in automatic or manual sequence
the picture of each camera is displayed on the monitor for an operator-selected dwell period (1 to 15 seconds) / every camera output has a red LED which is lit if the picture of this camera is currently on-screen / unused camera positions may be bypassed without changing the sequence or the dwell time
designed to work with basic versions of modest closed-circuit video systems
housed in a heavy-gauge steel chassis / cover is protected by an off-white textured finish in baked enamel
Specifications
control: auto / bypass / home
audio input: 8 inputs
audio output: 2 outputs
video input: 8 inputs, 1.0Vpp / 75ohm
video output: 2 outputs, 1.0Vpp / 75ohm
video bandwidth: 20MHz, within ± 3dB
crosstalk: >50dB
max. video input: 2.0Vpp
video gain: 0.8Vpp to 1.6Vpp
switching interval: adjustable, from ± 1 to 15 seconds
power consumption: 3.0W max.
video connector: BNC type, F type
power supply: DC 12V / 300mA PS1205R (adapter not incl.)
