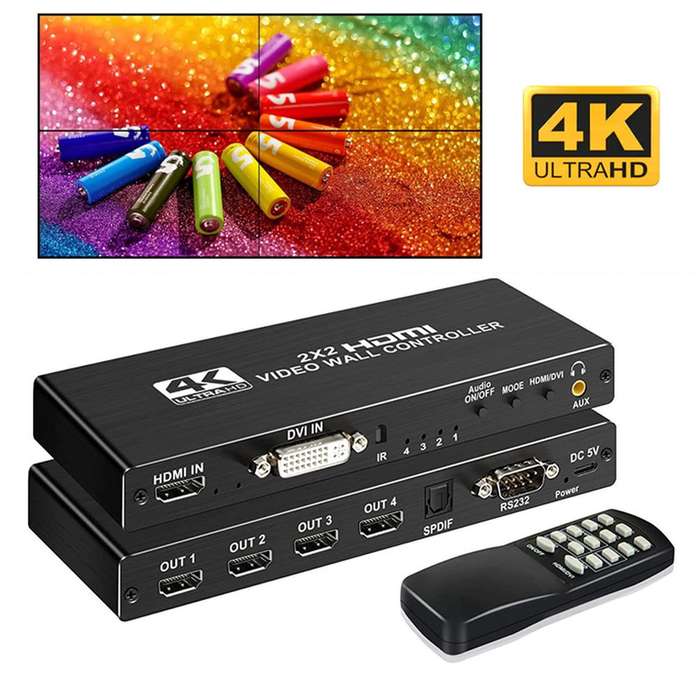

This video wall 2x2 controller is a device used to split a single video source into four separate outputs to drive a video wall display. The "2x2" refers to the configuration of the video wall, which consists of four monitors arranged in a two-by-two grid.

Key Features

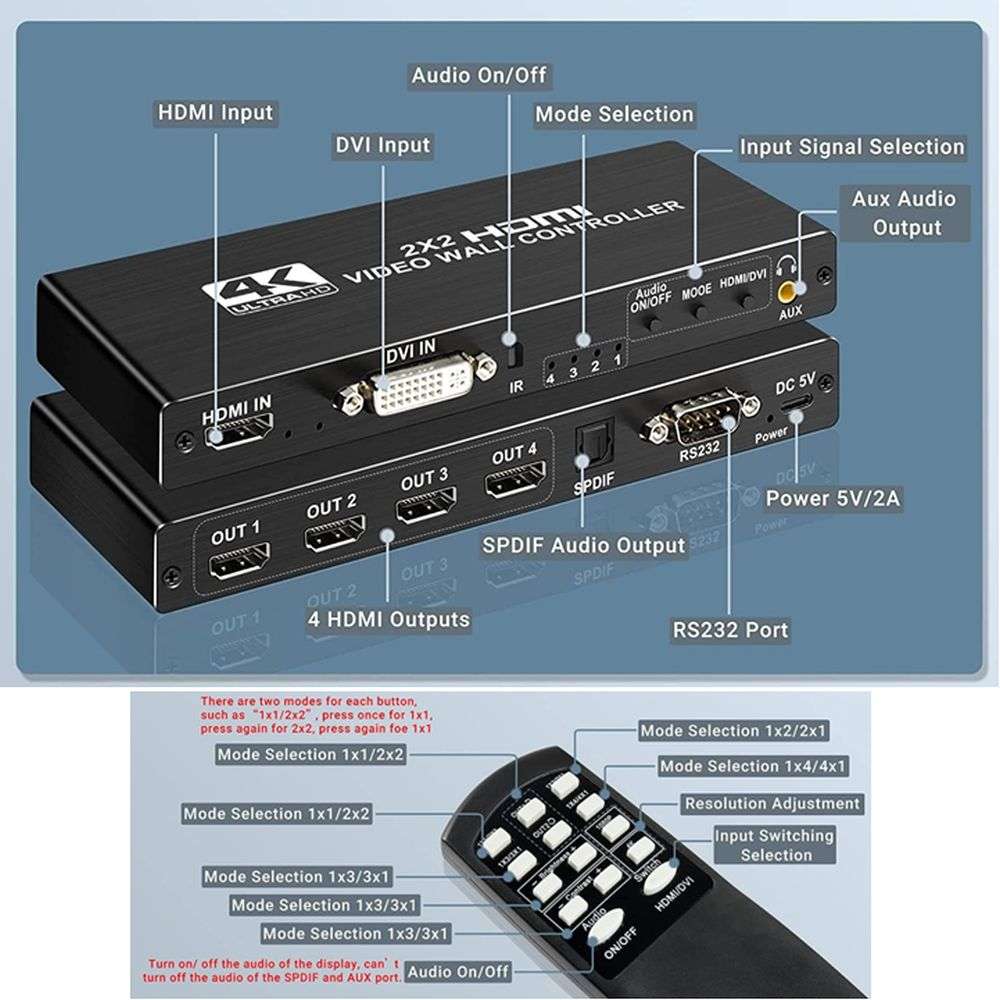

• Input/output ports: the controller have a video input port (like HDMI or DVI) and four output ports of the same or a different type.

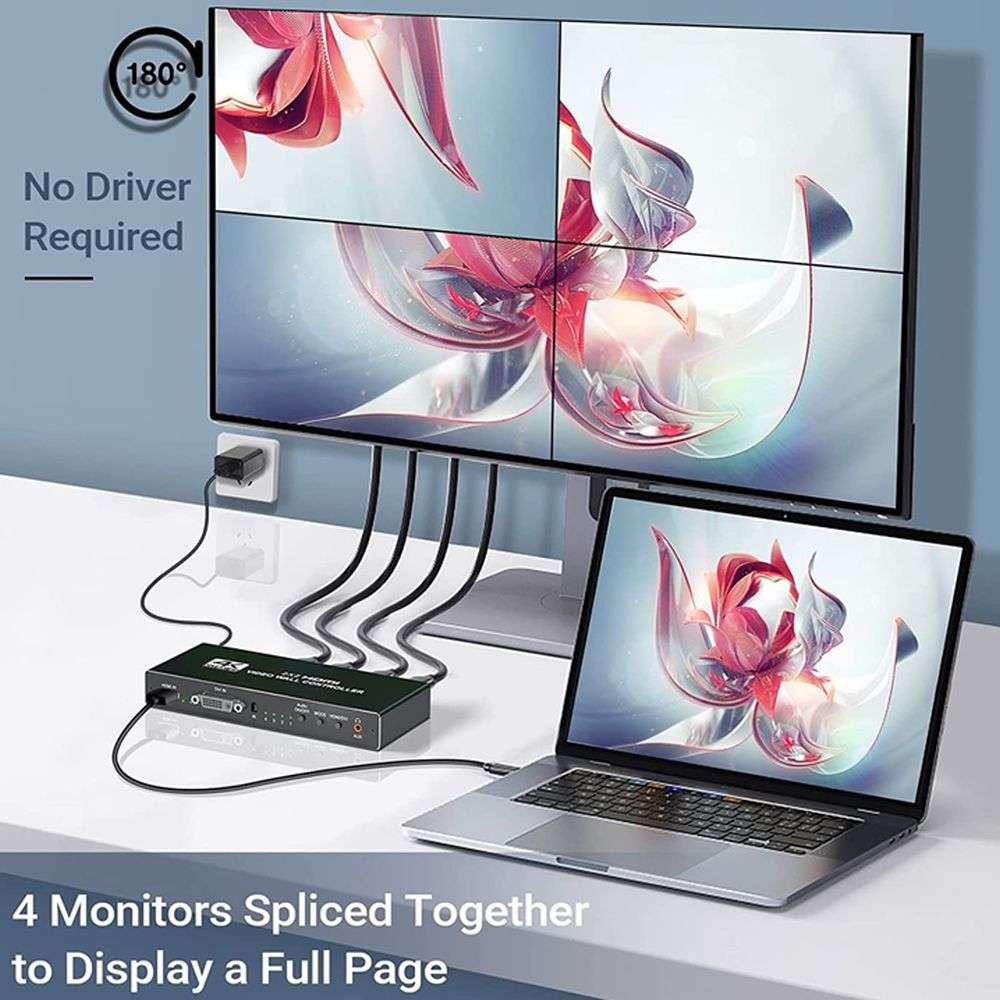

• Plug-and-play: is designed for ease of use, requiring minimal setup to get a basic 2x2 video wall running.
• Resolution and scaling: it handles high-resolution input signals and scales them down correctly to fit the displays.

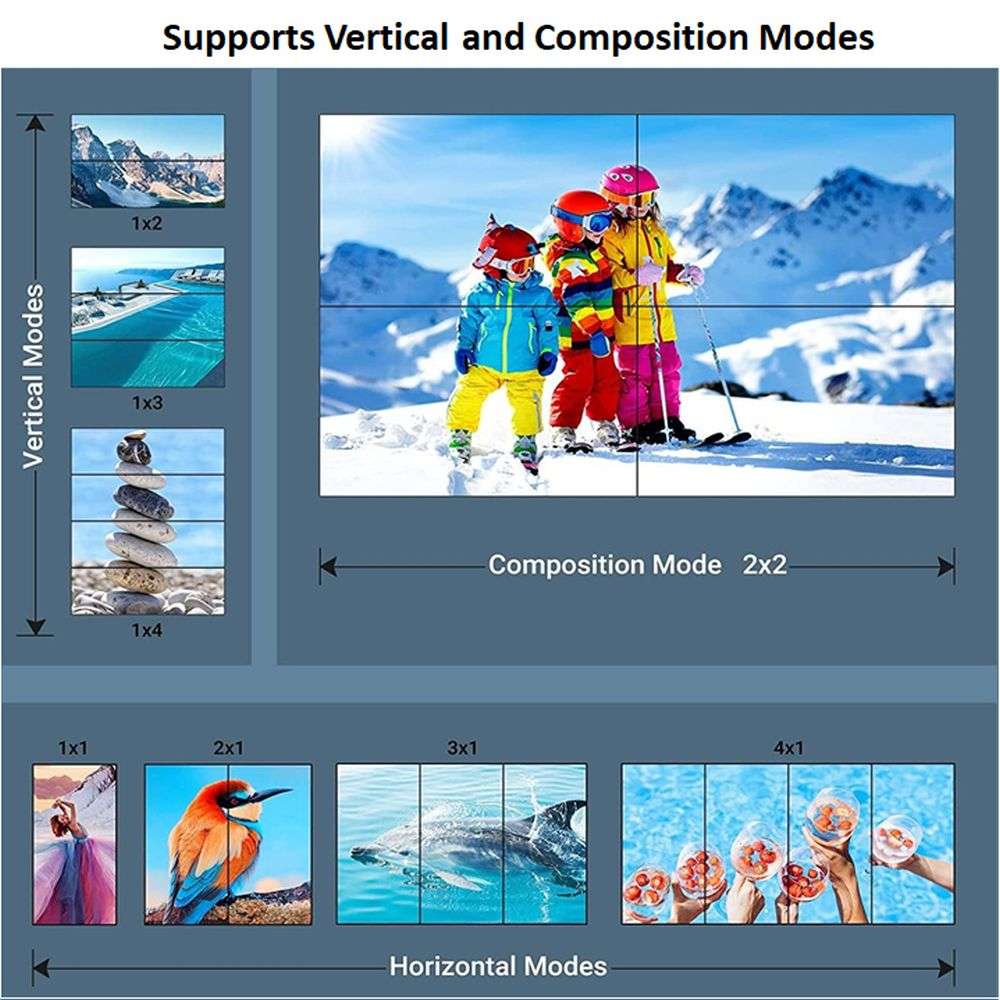

• Variety of mode selection: while a 2x2 controller is designed for a 2x2 array, this product has different modes which are in order:
  • 1x1
  • 1x2
  • 1x3
  • 2x1
  • 2x2
  • 3x1
  • 1x4
  • 4x1

Product specifications

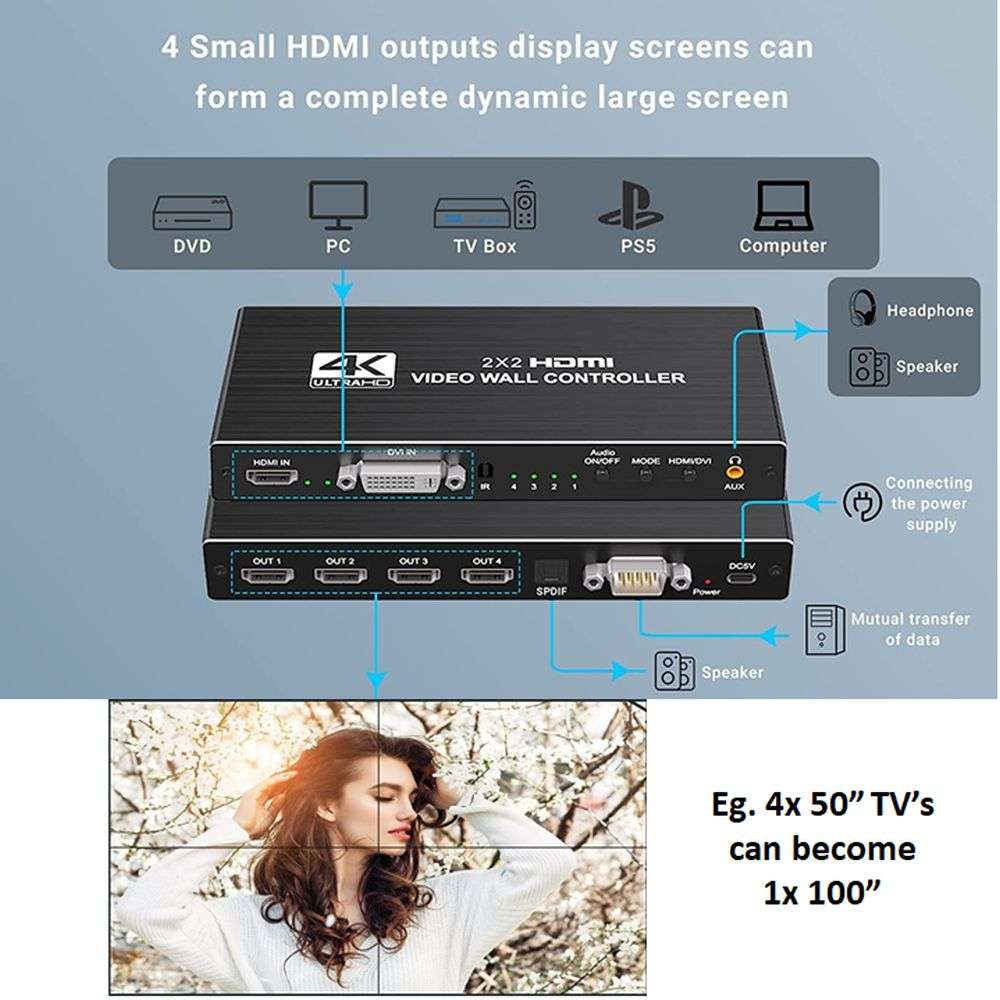

• Supports one DVI or HDMI input
• Input support: HDMI1.4, HDCP1.4
• Input format: RGB/YUV 24bit
• Output format: RGB444 24bit
• Supports four HDMI outputs, one 3.5mm stereo output
• Supports 5.1CH audio output over optical fibers.
• Supports RS232
• Power supply: 5VDC, 1A with a type c cable.
• Shell material: high quality aluminum alloy
• Size: 172 x 68 x 24 (L x W x H) in mm
• Product weight: 209g

Typical applications (not limited to)

• Digital signage: where advertisements/ information needs to be displayed like in retail stores, shopping malls or public places.
• Control rooms: used to display data or information in a large single view.
• Conference rooms: displaying content on a larger, more impactful scale.
• Home theater: creating a dynamic and immersive viewing experience at home.

What is in the box?

• 1 x Video Wall 2x2 Controller
• 1 x Remote controller (does not include a battery; uses a No. 7 battery)
• 1 x User manual
• 1 x power supply adapter
