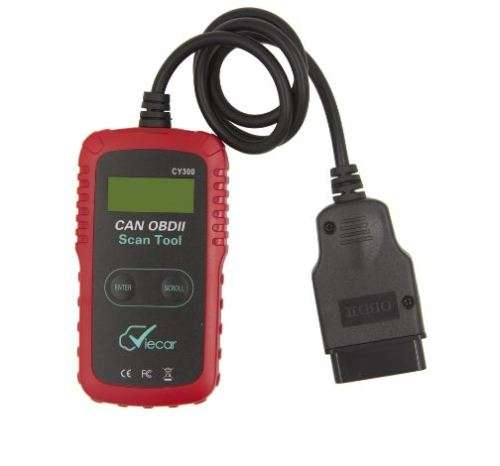

Viecar CY300 V1.5 Diagnostic Tool Code Reader for All OBD2 Protocols

 Viecar CY300 V1.5 Diagnostic Tool Code Reader

for All OBD2 Protocols

Product Description:

The Viecar® VC300 code reader supports all OBD II protocols, including the newly released Controller Area Network (CAN) protocol. Though it is small, it is able to retrieve same information as large expensive scanners!

The Viecar® OBD II Scan Tool is specially designed to work with all OBD II compliant vehicles, including those equipped with the next-generation protocol-Control Area Network (CAN).

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

Supported OBD-II protocols:

SAE J1850 PWM (41.6 Kbaud)

SAE J1850 VPW (10.4 Kbaud)

ISO 9141-2 (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

Features:

Work with all 1996 and newer vehicles that are OBD II compliant (including CAN)

Read and clear generic and manufacturer specific Diagnostic Trouble Codes (DTCs) and turn off check engine light

Support multiple trouble code requests: generic codes, pending codes and manufacturer specific codes

Review the emission readiness status of OBD monitors

Determine the malfunction indicator lamp (MIL) status

Retrieve VIN (Vehicle Identification No.) on 2002 and newer vehicles that support Mode 9

Easy to use with one plug-in

No batteries needed-powered via detachable OBD II cable

Specifications:

Display: Backlit LCD, 2-line, 8 characters
