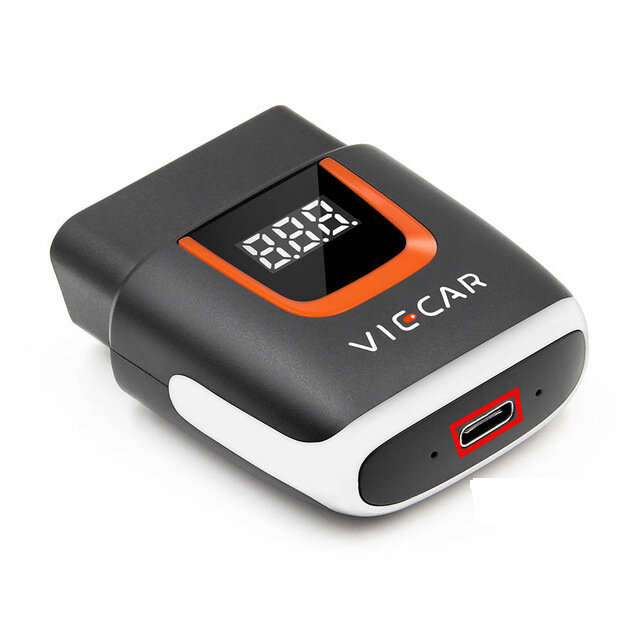

Viecar VP004 ELM327 V2.2 WIFI With Type C USB Interface OBD2 EOBD Car Diagnostic Scanner Tool OBD II

PLEASE READ PAYMENT AND SHIPPING BEFORE BUYINGNote:1.Viecar ELM327 Firmware Version is realﾠV2.2,better than ELM327 V1.5/V2.12.Type C cables are not provided in our packaging,please buy or use yourself.Product Description:TheﾠVP004ﾠisﾠWIFIﾠ+ type C (USB)ﾠInterfaceﾠOBD product with the following features:1. Compatible with WIFI data transmission With USB2.0 transmission2. Nine protocols supporting the OBD II/EOBD standard3. Wide power supply range:ﾠ9-36Vﾠpower supply; reliable overcurrent and overvoltage protection;4. With standby low power mode to ensure the safe use of car batteries;5. With digital tube display voltage, current, enhance customer experienceSupported Agreement:SAE J1850 PWM (41.6 Kbaud )SAE J1850 VPW (10.4 Kbaud )ISO 9141-2 (5 baud init, 10.4 Kbaud)ISO 14230-4 KWP (5 baud init, 10.4 Kbaud )ISO 14230-4 KWP (fast init, 10.4 Kbaud)ISO 15765-4 CAN (11bit ID, 500 Kbaud)ISO 15765-4 CAN (29bit ID, 500 Kbaud)ISO 15765-4 CAN (11bit ID, 2500 Kbaud)ISO 15765-4 CAN (29bit ID, 250 Kbaud)Supported Vehicle Data:-Read error diagnostic code-Clear the fault code (clear the error code and turn off MIL)-Engine revolutions per minute (RPM)-Calculated load value-Coolant temperature-Fuel system status-Speed-Short-term fuel situation-Long-term fuel situation-Intake manifold pressure-Fuel injection advance time-Intake air temperature-Air flow rate-Throttle absolute position-Oxygen detection voltage associated with short-term fuel state-Fuel system status-Fuel pressure-Fuel consumption monitoring, etc.Remarks:ﾠThe number of data items supported by the model year is also different, subject to actual support.Technical Parameters:SSID:ﾠViecarFirmware Version:V2.2Main control chip:ﾠPIC18F25K80Software platform:ﾠsupport Android /IOS/ WindowsWorking voltage:ﾠDC 9-36VWorking current: 40mAStandby current: 5mAOperating environment: -20 ~ 65 ﾰ CStorage temperature: -40 to 80 ﾰ CDimensions: 56*45.8 *24mmPacking List:1pc x original Viecar ELM3271pc x instruction manual1pc x warranty card
