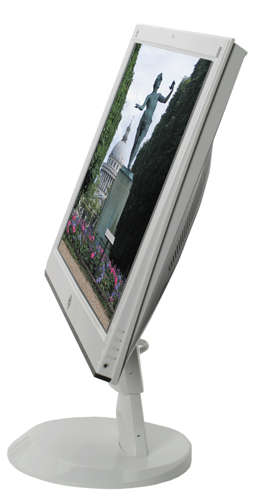

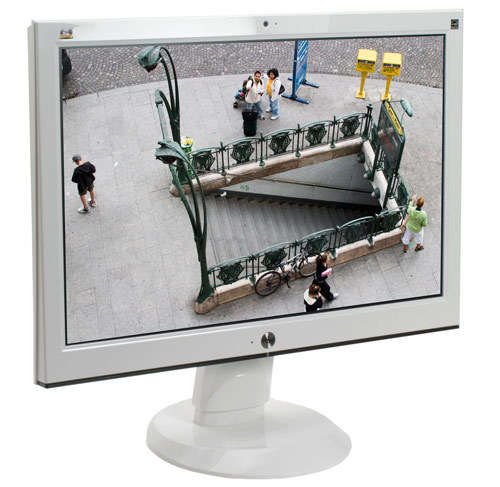

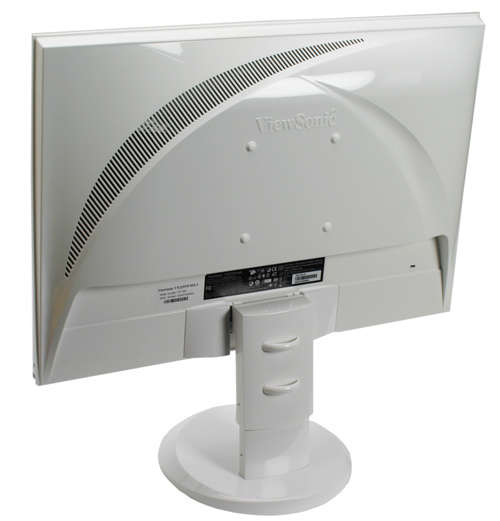

VIEWSONIC 22” Widescreen Multi-function HD LCD WEBCAM 1680X1050
SPECIFICATIONS
LCD
Type : TFT Active Matrix WSXGA+ LCD
Display Area : 22 inch
Optimum Resolution : 1680x1050
Contrast Ratio : 1000:1 (typical)
Brightness : 300 cd/m2 (typ)
Viewing Angles : 160° horizontal, 160° vertical (CR>10)
Response Time : 5ms
Panel Surface : Anti-glare
VIDEO INPUT
Analog : RGB Analog (75 ohms, 0.7 Vp-p)
Digital : DVI-D
Frequency : Fh: 24-82KHz; Fv: 50-85Hz
Sync : H/V separated
COMPATIBILITY
PC : VGA up to 1680x1050 non-interlaced
Mac : Power Mac, up to 1680x1050 non-interlaced
CONNECTOR
Analog : 15 pin mini D-sub x1
USB : USB 2.0 (for webcam)
Power : 3-pin AC plug (CEE22)
AUDIO
Speakers : 2W x2
POWER
Voltage : 100-240VAC; 50/60Hz (Switch)
Consumption : 45W (typ)
CONTROLS
Basic : Power, 1, down, up, 2
OSD : Auto image adjust, brightness, contrast, input select (analog, digital), color adjust (sRGB, 9300K, 7500K, 6500K-default, 5400K, user color - RGB), information, manual image adjust (H. size, H. position, V. position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD time-out, OSD background), memory recall
OPERATING CONDITIONS
Temperature : 0°C - 40°C (32°F - 104°F)
Humidity : 10% - 90% (Non condensed)
DIMENSIONS
Physical : 526mm (width) x 451mm (height) x 225mm (depth)
WEIGHT
Net : 5.9 kg
