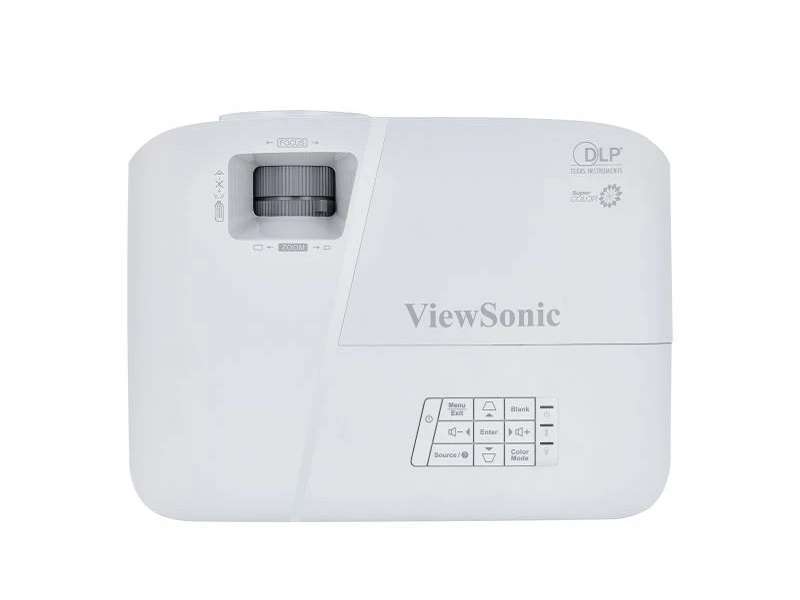

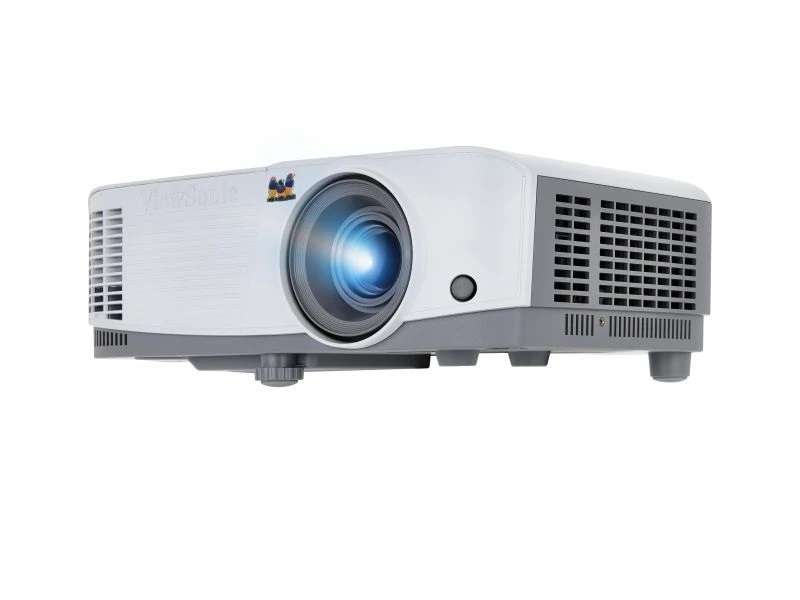

VIEWSONIC Pa503Sb Svga 3800 Lumens Dlp Projector

OVERVIEW

The ViewSonic PA503SB offers impressive visual performance to improve presentations, ideal for use in small business meeting rooms and classrooms. Packed with 3800 ANSI Lumens of brightness and a 30,000:1 contrast ratio, this projector is guaranteed to reproduce the finest of details regardless of the amount of ambient lighting present. ViewSonic exclusive SuperColor`99 technology offers a wider range of displayable color for projected images with true-to-life color accuracy. Users can choose from 5 color modes, including standard, brightest, presentation, photo, and movie mode, to select the mode that best suits their needs based on their usage scenario. In addition, the energy-saving SuperEco mode of PA503SB reduces power consumption and extends the lamp life by up to 15,000 hours.

3,800 Lumens SVGA Business Projector

Auto Power Off

30,000:1 contrast ratio

SuperColor`99 Technology

5 colour modes

Vertical Keystone

SPECIFICATIONS

SPECIFICATION

Projection system: 0.55" SVGA

Native Resolution: 800x600

DC type: DC3

Brightness: 3800 ANSI lumens

Contrast Ratio with SuperEco mode: 30,000:1

Display Color: 1.07 Billion Colors

Light Source: Lamp

Light source life (Nor/SuperEco): 5000/15000

Lamp Watt: 190W

Lens: F=2.56-2.68, f=22-24.1 mm

Projection Offset: 120%+/-5%

Throw Ratio: 1.96~2.15

Image size: 30" - 300"

Throw Distance: 1.19m-13.11m(100" @3.98m)

Keystone: `b140`b0 (Vertical)

Optical Zoom: 1.1x

Audible Noise (Eco): 27dB

Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)

HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Video Compatibility: NTSC, PAL, SECAM

Horizontal Frequency: 15K~102KHz

Vertical Scan Rate: 23~120Hz

Input

Computer in (share with component): 2

Composite: 1

Audio-in (3.5mm): 1

HDMI: 1 (Back)

Output

Monitor out: 1

Audio out (3.5mm): 1

Speaker: 2W

Control

RS232: 1

USB type mini B (Services): 1
