4MP Super-High Definition: The VIGI C240I camera comes with 4MP - more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

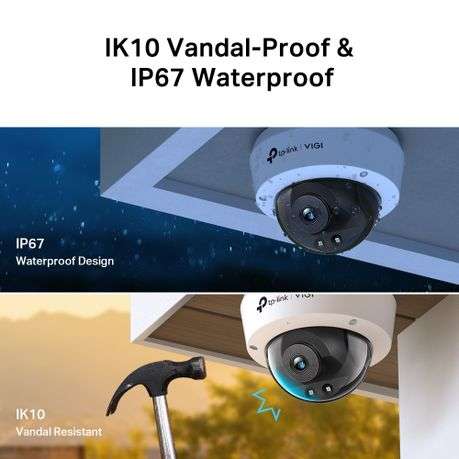

IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

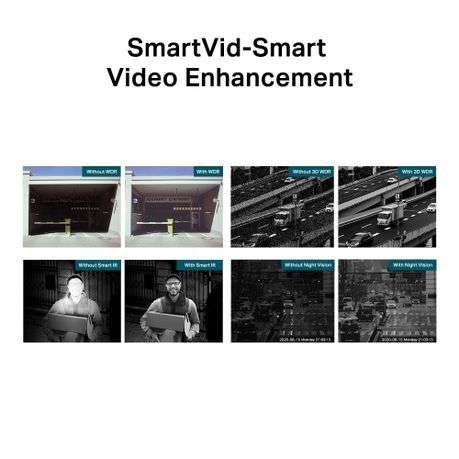

Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2.8 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C240I comes with two different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Specifications:
Sure, here's the list without bold formatting and indents:
CAMERA
- Image Sensor: 1/3" Progressive Scan CMOS
- Shutter Speed: 1/3 to 1/10000 s
- Slow Shutter: Yes
- Aperture: F2.2
- Lens: 2.8 mm
- Lens Mount: M12
- Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
- Day/Night Mechanism: IR Cut Filter
- Day/Night Switch: Unified/ Scheduled/ Auto
- Digital Noise Reduction: 3D DNR
- WDR: DWDR
- Weatherproof Rating: IP67
- IR Working Distance: 30m
- Viewing Angle: 2.8mm: 88.8 /48.9 /106.5 (H/V/D)
LENS
- Type: Fixed Focal Lens
- Focal Length: 2.8 mm
- FOV: Horizontal FOV: 88.8 , Vertical FOV: 48.9 , Diagonal FOV: 106.5
- Lens Mount: M12
- DORI Distance:
- Detect: 60 m (197 ft)
- Observe: 25 m (82 ft)
- Recognize: 12 m (39 ft)
- Identify: 6 m (20 ft)
ANGLE ADJUSTMENT (MANUAL)
- Range: Pan: 0 to 355 , Tilt: 0 to 75
ILLUMINATOR
- IR LED: Quantity: 2, Range: 30m, Wavelength: 850nm
- Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
VIDEO
- Max. Resolution: 2560 × 1440
- Main Stream Frame Rate:
- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Sub-Stream Frame Rate:
- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Bit Rate Control: CBR, VBR
- Video Compression:
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264
- H.264 Type: Main Profile/High Profile
- H.264+: Main Stream Supported
- H.265 Type: Main Profile
- H.265+: Main Stream Supported
- Video Bit Rate:
- Main Stream: 256 Kbps to 4 Mbps
- Sub-Stream: 64 Kbps to 512 Kbps
- Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90 /270 )
- Image Enhancement: BLC/3D DNR/HLC/SmartIR
- Wide Dynamic Range: DWDR
- SNR: 52 dB
- Image Parameters Switch: Yes
- Privacy Mask: Up to 4 Masks
- ROI: 1 Region
- OSD Setting: Yes
AUDIO
- Audio Communication: N/A
- Audio Input: N/A
- Audio Output: N/A
- Audio Compression: N/A
- Audio Sampling Rate: N/A
- Environment Noise Filtering: N/A
- Audio Bit Rate: N/A
NETWORK
- Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- ONVIF: Yes
- API: ONVIF
- Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
- Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
- Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
- Cloud: Yes
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
- Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
- Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login)
- Alarm Linkage: Message Push
- Output Notification: Message Push
INTERFACES
- Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
- Power: DC Power Port
GENERAL
- Operating Temperature: -30-60 C
- Storage Temperature: -40-60 C
- Operating Humidity: 95% or Less (Non-Condensing)
- Storage Humidity: 95% or Less (Non-Condensing)
- Dimensions: 115 × 115 × 86 mm
- Material: Plastic
- General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
- Net Weight: 0.27 Kg
- Gross Weight: 0.45 Kg
- Power Consumption: 12V DC: Max 5W, PoE: Class 0
- Power Supply: 12V DC 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0)
- Vandal Resistant: IK10
- Protection: IP67, IK10
- Product Dimensions: 115× 86× 115 mm
- Certifications: CE/BSMI/VCCI/ONVIF
What's in the box
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
