High-brightness display screen, Viltrox DC-550 camera monitor is suitable for all light conditions.

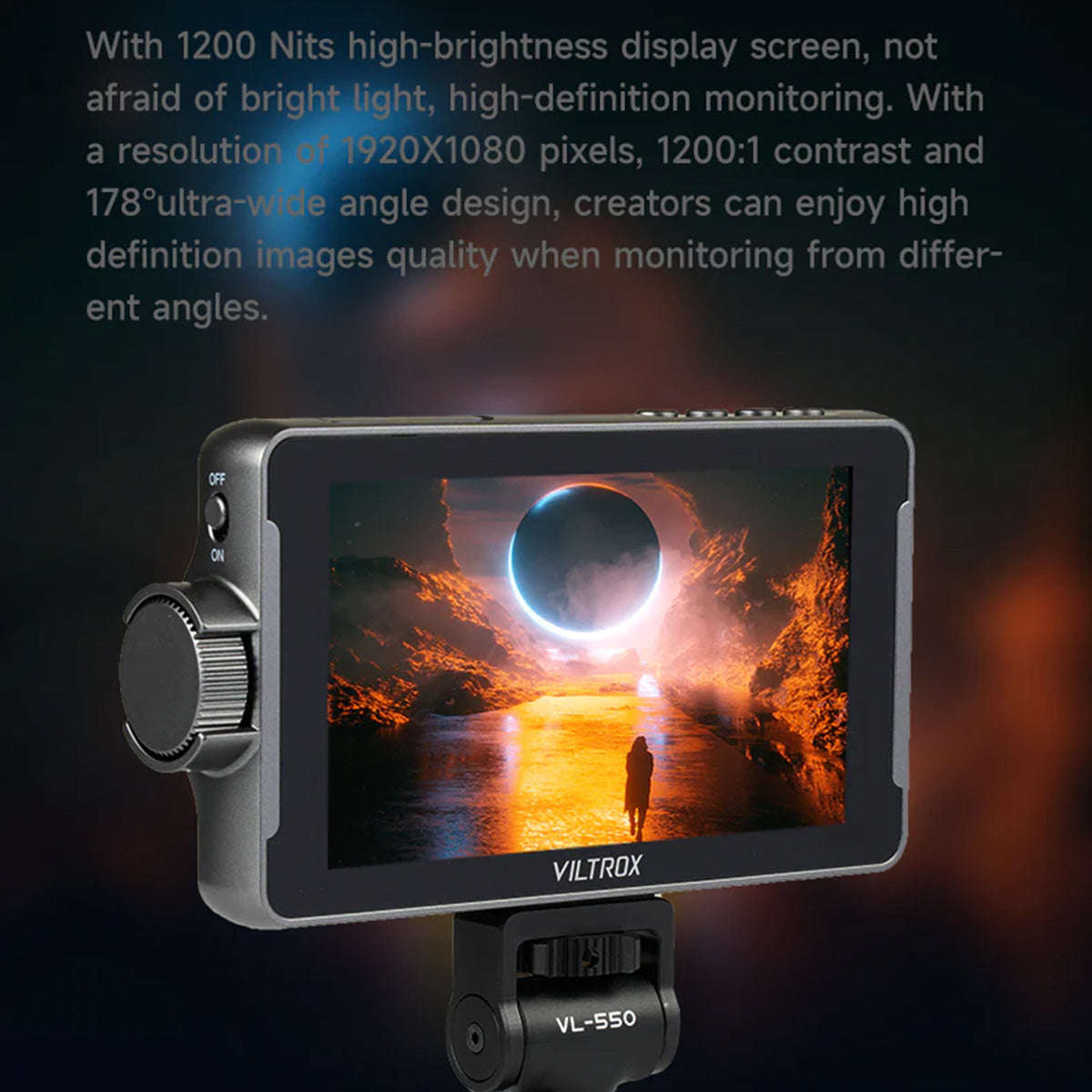

Experience professional-grade monitoring with the Viltrox DC-550 camera monitor, featuring a high-brightness display suitable for all light conditions. The monitor utilises 3D LUT technology to control the full stereo color space, expanding colour display potential and ensuring hardware calibration for WYSIWYG accuracy. With a resolution of 1920×1080 pixels, 1200:1 contrast ratio, and 178° ultra-wide angle design, creators can enjoy high-definition image quality from various viewing angles. Import 3D LUTs through an SD card to achieve a variety of creative effects in post-editing.
Key Features:
Monitors audio signal in HDMI high-definition signal and switches waveforms in real time.
Gyroscope detection function adjusts the screen automatically for optimal viewing.
Brightness histogram monitors brightness of incoming HDMI high-definition images.
Three power supply options: DC adapter, lithium battery, or Type-C cable.
Shortcut keys F1, F2, & F3 for customisable functions.
HDMI IN and HDMI OUT function for connecting other monitors or devices.
178° ultra-wide-angle design for clear picture quality from different angles.
Supports Parade waveform, vector graph, brightness histogram, auxiliary focus, audio column, image flip, false color, etc.
Built-in 3D LUT ensures precise color reproduction for a natural viewing experience.
Specifications:
Model: DC-550
Screen: 5.5 inch LED
Resolution: 1920x1080 pixels
Brightness: 1200cd/m²
Input signal interface: HDMI1.4
Output signal interface: HDMI1.4
Audio Headphone jack: 3.5mm
Firmware upgrade: Through SD card

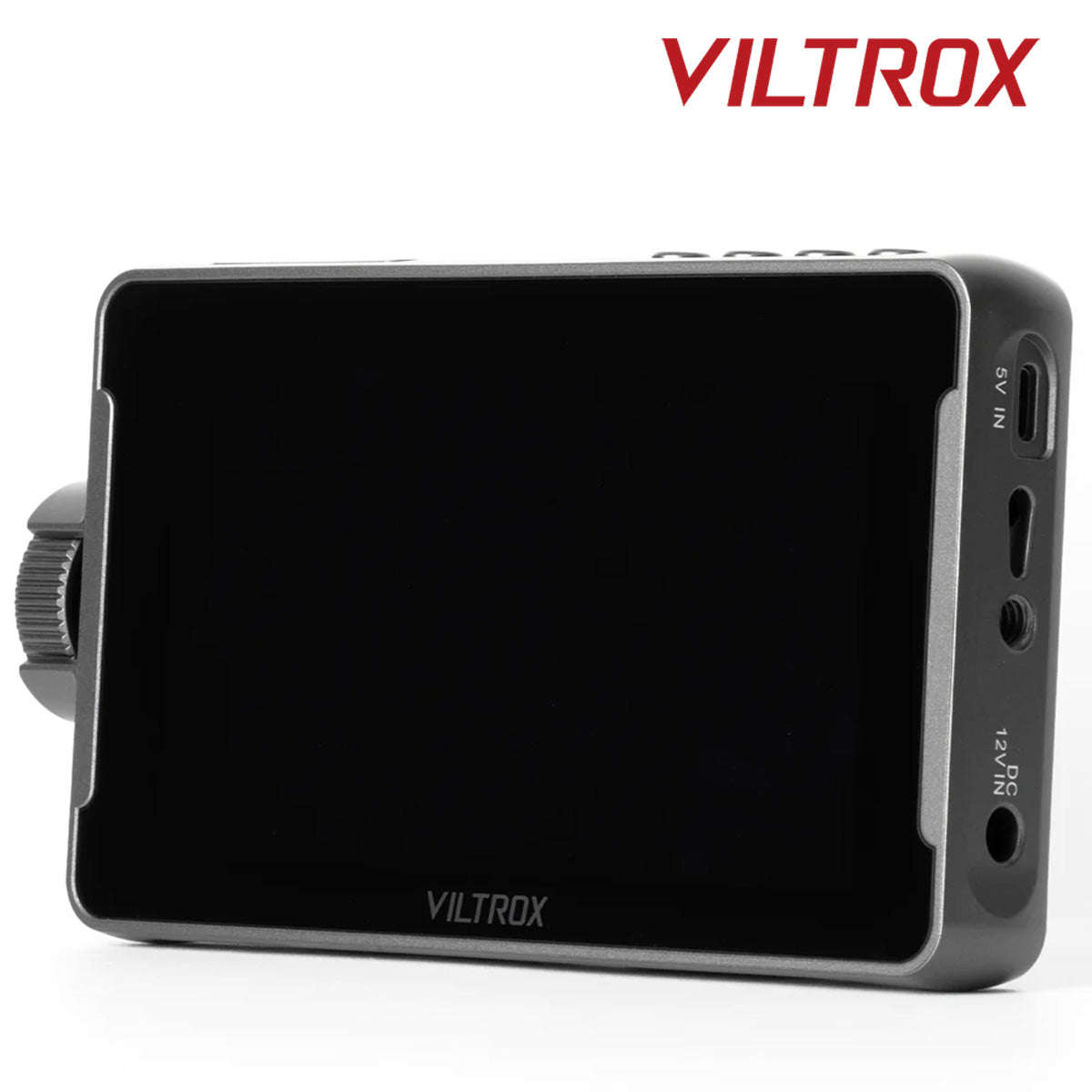

Power interface: DC12V-18V=2A, Type-C interface5V=3A
Compatible battery: NP-F550/F570/F750/F770/F960/F970 (1 x NP-F550 battery included)
Operating temperature: 0 to +40°C
Dimensions: 17 x 9 x 29 cm
Weight: 280 grams
Packaged Weight: 940 grams
FAQs:
Q1: Do the monitors support 3D LUTs loop out? - A1: NO, they don't.
Q2: Do the monitors support audio monitoring? - A2: YES. There is a 3.5mm headphone jack.
Q3: Can I use an SD card on the SD card slot for recording? - A3: NO. The monitor does not support the recording function; the SD card slot is only for 3D LUTs and firmware updates.
Warranty:
1 Year Local South African Warranty
What's in the Box?
1 x Viltrox 5.5 inch Camera Monitor
1 x HDMI Interface
1 x NP-F550 Battery
1 x USB Type-C Cable

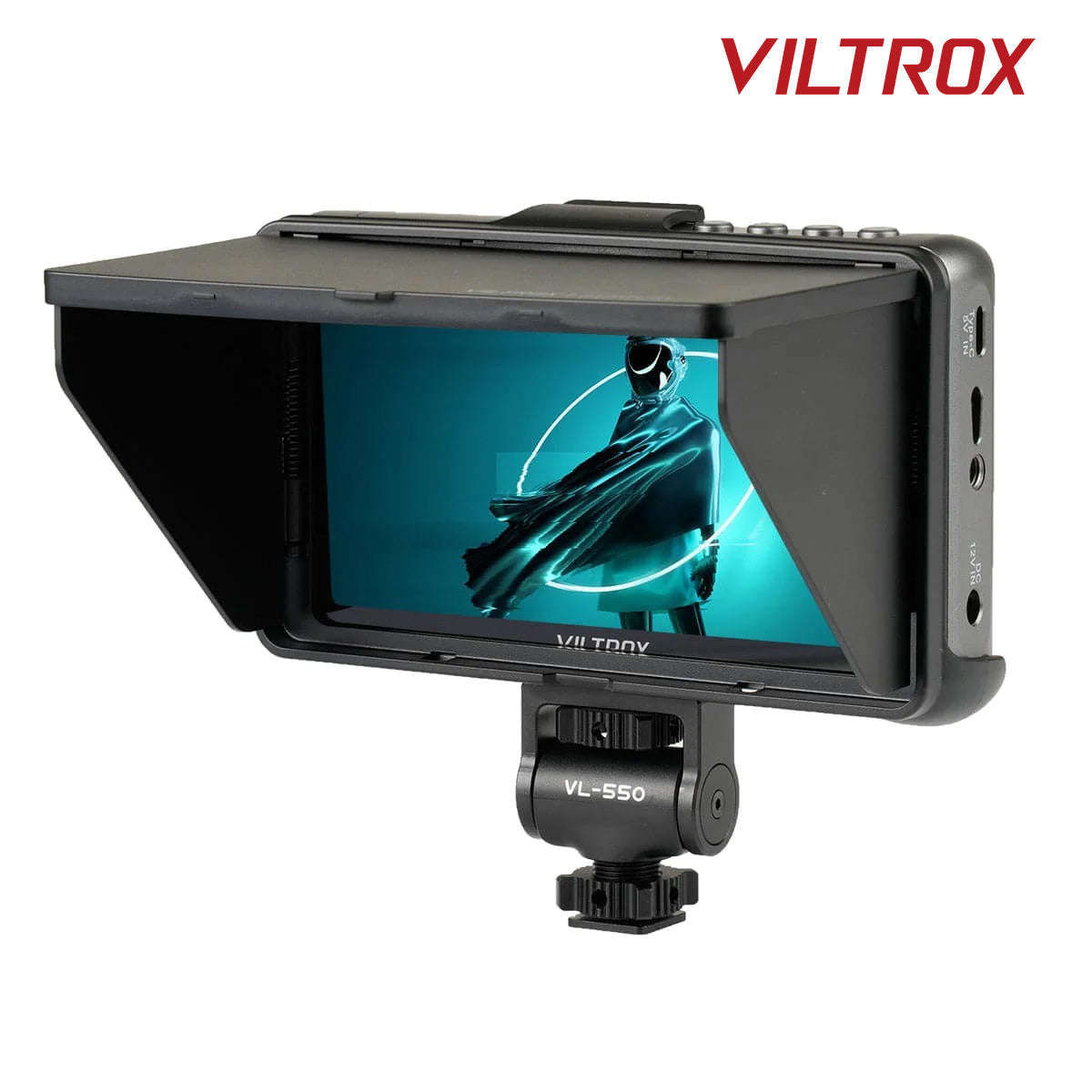

1 x Hot Shoe Mounting Adapter
