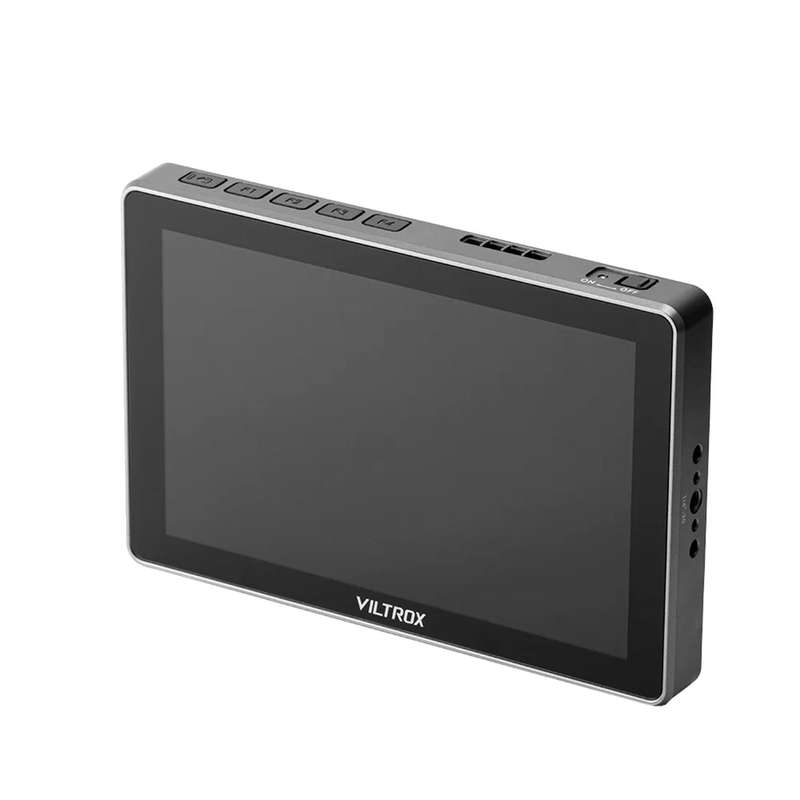

The Viltrox DC-L2 is a 7-inch professional monitor designed to assist photographers and videographers with high-definition, real-time image display. Its versatile connectivity options and advanced features ensure optimal performance for those working with digital cameras or HD camcorders. Ideal for both professionals and enthusiasts, this monitor supports HDMI and SDI inputs/outputs, and offers various tools for precise image control and calibration.
Key Features:
7" 1280 x 800 IPS Touchscreen Display: Provides clear and vibrant visuals with excellent colour accuracy.
Supports DCI/UHD 4K30 HDMI Input: Enjoy high-definition input up to 4K at 30Hz for exceptional image quality.
HDMI & SDI Inputs/Outputs: Includes 1 x HDMI input, 1 x HDMI output, 1 x SDI input, and 1 x SDI output, enabling seamless connectivity with external devices.
L-Series Battery Plate: Powered by an L-series battery, included with the monitor for easy portability and use.
Gyroscope Auto Flip Function: Automatically adjusts the screen orientation for a better viewing experience, no manual intervention required.
Headphone Output: Equipped with a 3.5mm headphone jack for real-time audio monitoring.
USB Port for Firmware Updates & 3D LUTs: Easily update the firmware or load 3D LUT files to enhance your colour grading.

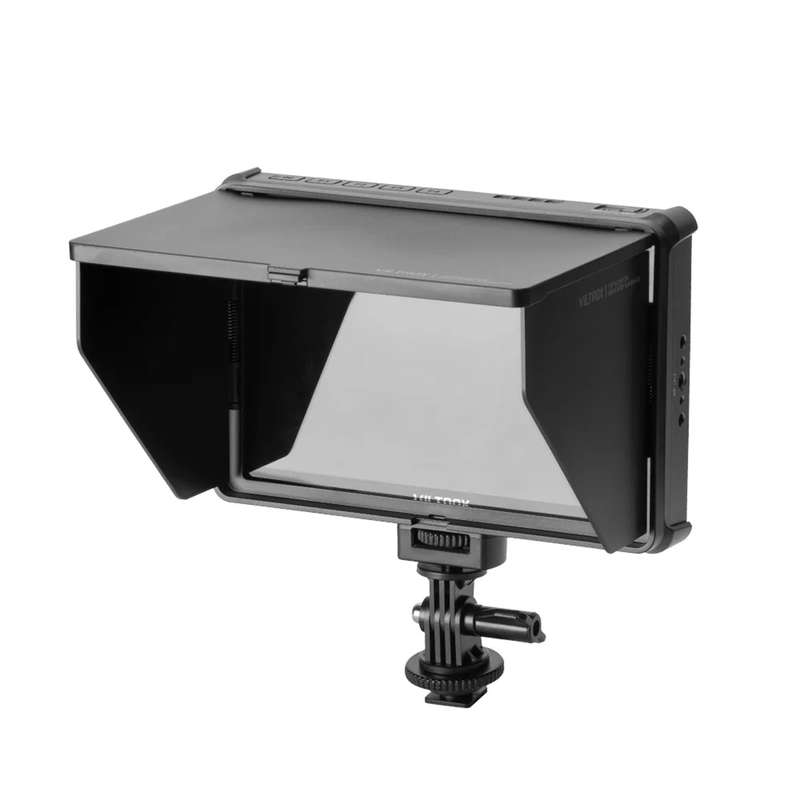

Included Sun Hood & Shoe Adapter: Protects the screen from glare and allows easy attachment to your camera.
HDMI & USB Cables Included: Ready for use straight out of the box with essential cables included.
Focusing & False Color Functionality: Focuses on specific areas and highlights exposure issues with colour indicators for lighting accuracy.
Specifications:
Display Screen: 7-inch IPS touchscreen
Resolution: 1280 x 800 pixels
Aspect Ratio: 16:10
Contrast: 1000:1
Refresh Rate: 60Hz
Brightness: 600 cd/m² for clear visibility in bright conditions
Viewing Angle: 170°
Pixel Density: 215 PPI
Colour Gamut: SRGB
Colour Depth: 8-bit
Inputs: 1 x HDMI 1.4 IN, 1 x SDI IN
Outputs: 1 x HDMI 1.4 OUT, 1 x SDI OUT
Audio Output: 3.5mm headphone jack
Power Input: DC 10V-18V or Type-C 9V=3A (9V/12V/15V/20V=3A)
Battery Compatibility: Lithium NP-F550/F750/F970
Weight: Approx. 392g
Dimensions: 178.7 x 119.7 x 30.5mm
Working Temperature: 0°C to 40°C
Storage Temperature: -20°C to 60°C
Ideal for:
Photography & Videography: A must-have tool for monitoring your footage in real-time.
On-location Filming: Durable and portable for outdoor and field use, offering an easy-to-read display in bright environments.
Colour Accuracy: With its advanced colour management and calibration tools like 3D LUT and false colour functionality, it's perfect for professionals who require precise exposure and lighting control.
Enhance your filming workflow with the Viltrox DC-L2 monitoryour go-to companion for accurate monitoring and professional-quality performance.
Warranty:
12-Month Limited Warranty

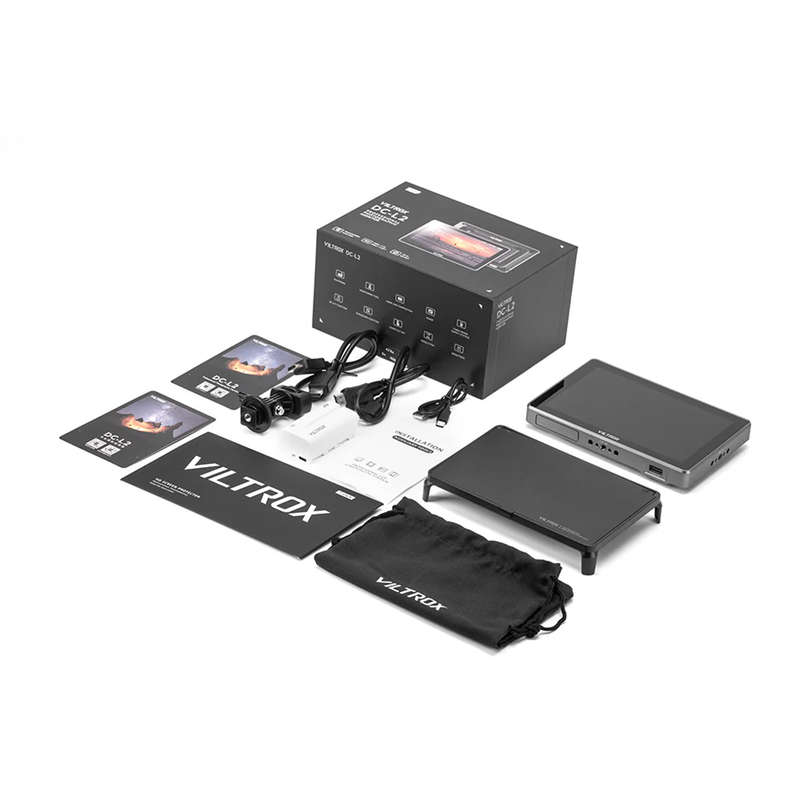

What's in the box:
1 x Viltrox DC-L2 7" 4K HDMI/SDI On-Camera Touchscreen Monitor with 3D LUT & Gyroscope
1 x NP-F550 Battery
1 x Sun Hood
1 x Cold Shoe Swivel Mount
1 x HDMI-HDMI Cable
1 x HDMI-Mini HDMI Cable
1 x HDMI-Micro HDMI Cable
1 x Warranty Card
