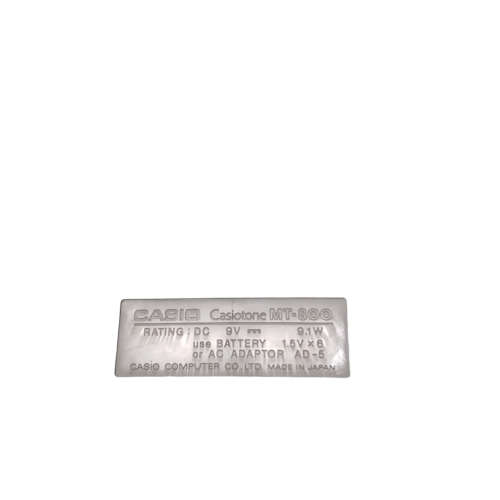

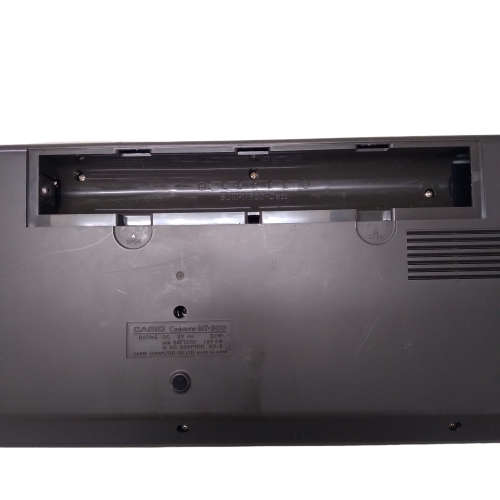

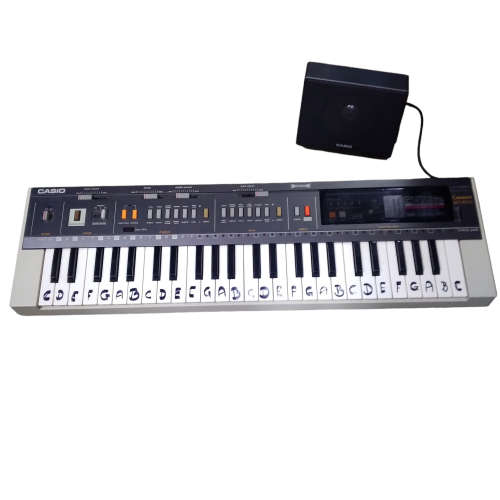

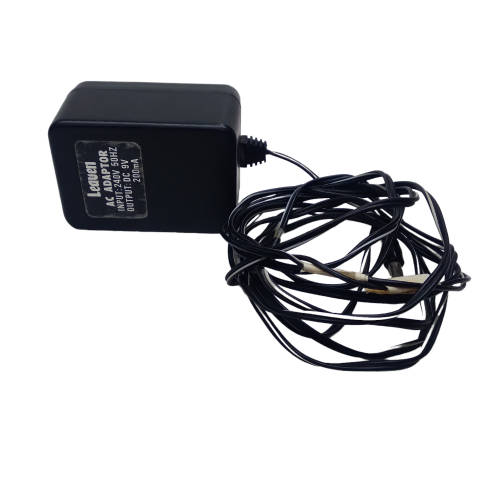

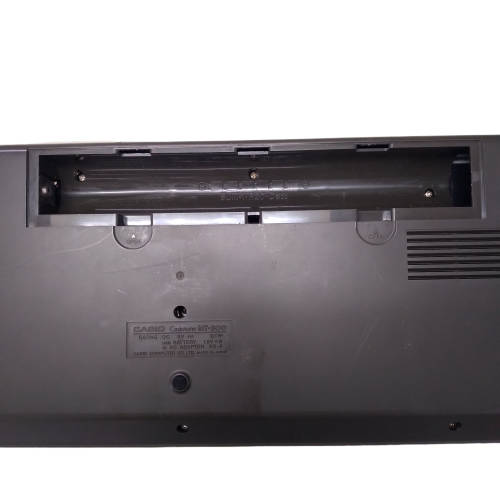

Still working! Originally came out with a case and two external speakers, but the one speaker is missing. This Casio has only one speaker and does not come in the original case, also no instruction manual (but the manual is easily available on the internet). Comes with the Casio rom pack. Also comes with a 9V power adapter (the wires have been taped and the adapter might need to be replaced in future as it is not in great condition). Can be operated with 6 x 1,5V batteries, not included (also not battery tested).
We have tested with the adapter, comes on and plays well. Did not check each and every funtion but the keyboard is in good cosmetic condition and no issues have been noted, except for the keyboard only having the one speaker.

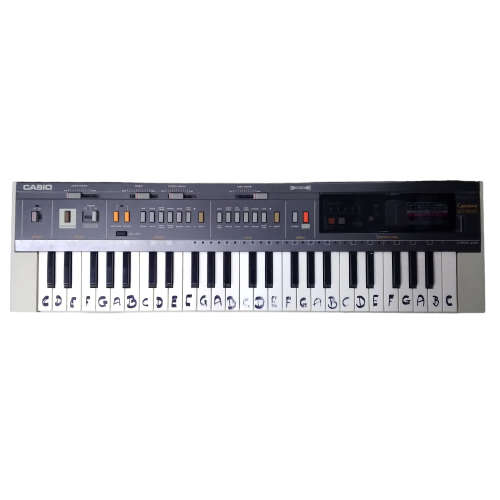

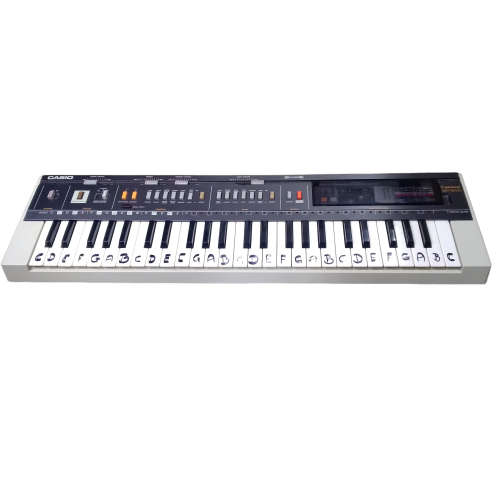

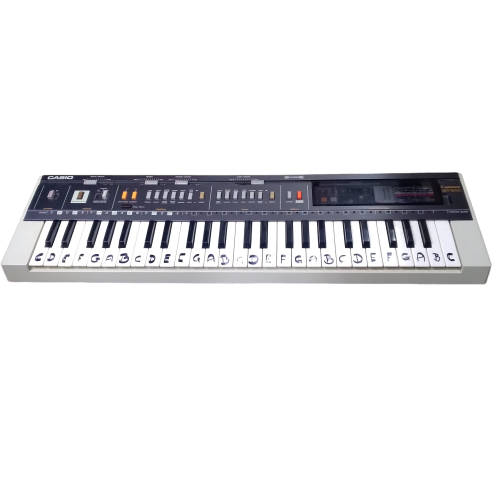

The keys have been marked by the previous owner is permanent marker.
"main features:
49 midsize keys

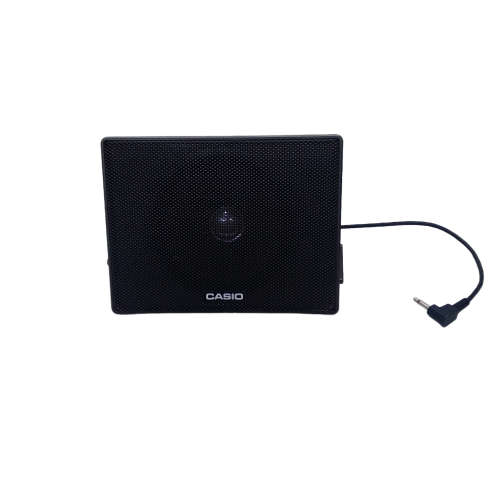

stereo with separate attachable speakers (of reasonable quality)
main voice polyphony 8 notes

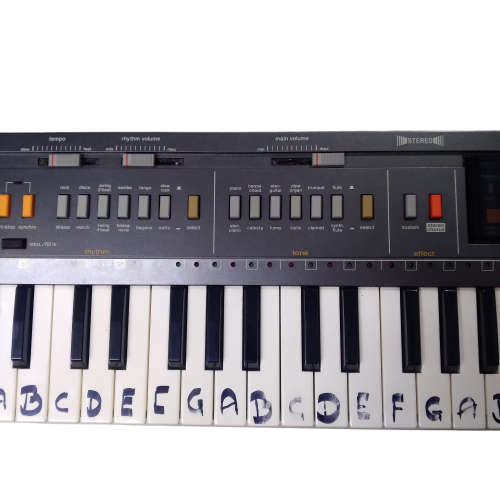

12 semi- OBS preset rhythms {rock, disco, swing 2 beat, samba, tango, slow rock | 16 beat, march, swing 4 beat, bossanova, beguine, waltz} selected by locking buttons + select button.

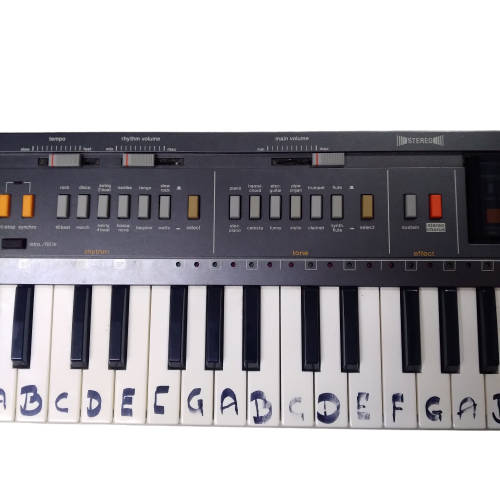

12 semi- OBS preset sounds {piano, harpsichord, elec. guitar, pipe organ, trumpet, flute | elec. piano, celesta, funny, violin, clarinet, synth. flute} selected by locking buttons + select button.
separate sliders for main, rhythm and chord volume
tempo slider

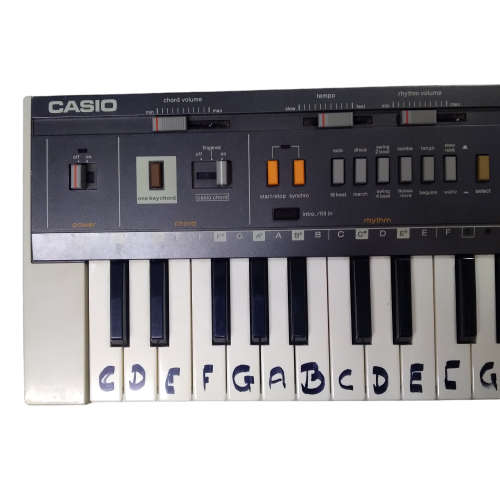

"casio chord" switch {off, fingered, on}
rhythm "intro/ fill-in" and synchro buttons
sustain switch
button for "stereo chorus" rotary speaker/ leslie simulator (based on a combination of panning and pitch shifting)
sequencer (550 note steps + 120 chord steps, but only monophonic main voice + standard chords, no edit)
"one key chord" button (to step through a chord sequence in sequencer)
"melody guide" keyboard play training feature with key lighting (31 red & green LEDs above the keys)

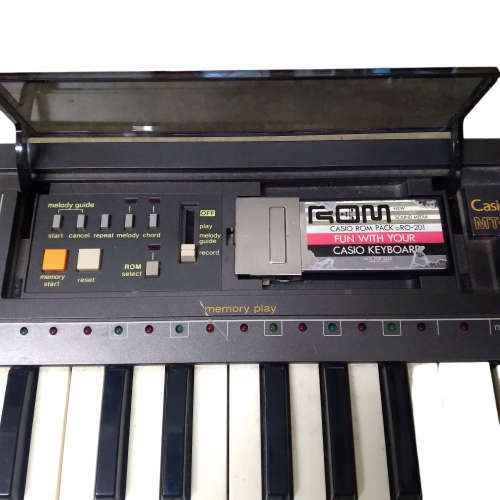

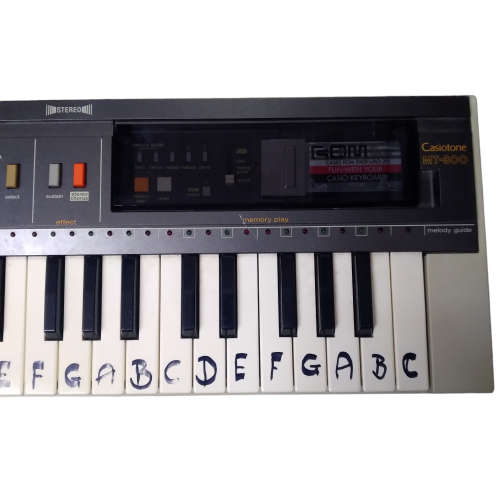

ROM- Pack music cartridge slot for melody guide and "auto play" (jukebox mode)
complex multi- chip hardware:
accompaniment CPU= "NEC D930G 017, 8334XK" (80 pins SMD) which produces different multipulse squarewave tones (partly with capacitor envelope) and trigger pulses for external analogue drums.
main voice sound IC= "NEC D931C 011, 8329K6" (42 pin DIL) with timbres based on 2 mixed multipulse squarewave tones with different digital envelopes, those are differently low pass filtered through capacitors.
IC "HN61364P, 3G1, C61" (28 pin DIL)
analogue percussion {base, snare, open cymbal, close cymbal, low tom, high tom, woodblock} which apparently uses no transistor noise. The cymbal timbre sounds half- way metallic and resembles the one of Yamaha PS-2, thus it may be mixed from 2 shift register feedback noises.
tuning & microphone level knobs
auto power off
demo melody "Tanz der Stunden" ("Dance of Hours") by A. Ponchielli

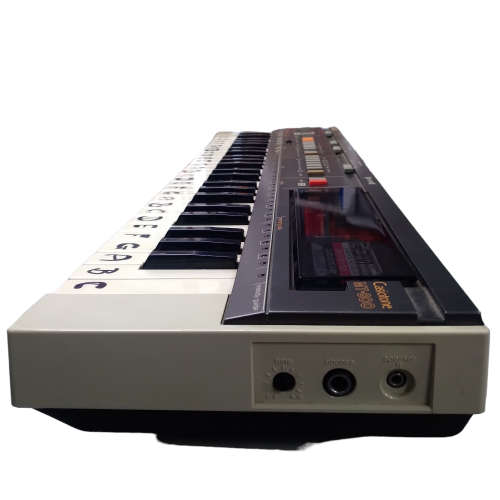

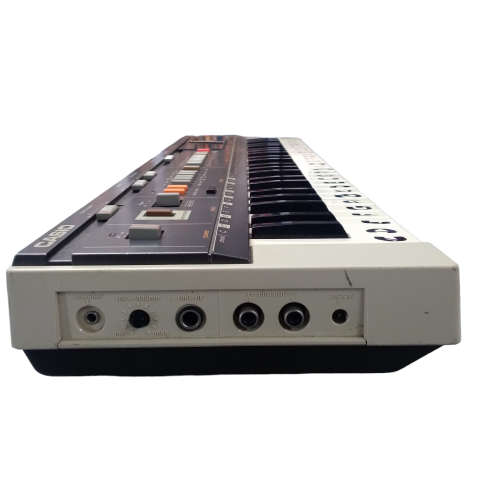

jacks for AC adapter, speakers, line out, headphone & microphone input
Keyboard dimensions - 65,6cm x 18cm x 5,5cm For more items from our store, visit:
