Viscosity Meter-Viscosimeter LVDV-1T
Lead Time: 3-4 Weeks

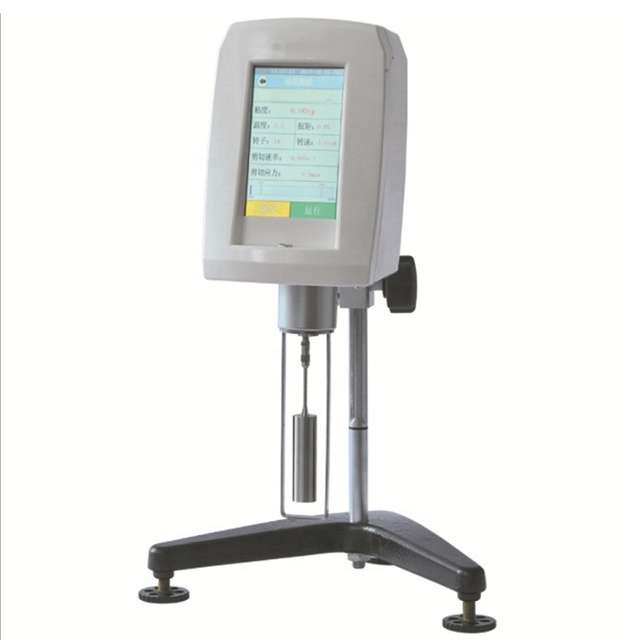

LVDV-1T Laboratory rotating viscosimeter
Laboratory Viscosity Meter
Uses
Widely used in all kinds of fluid need to measure viscosity. Including:
- paint
- paint
- ink
- cosmetics
- paper pulp
- food
- oil
- starch
- solvent based adhesive
- latex
- biochemical products and so on.
LVDV-1T Laboratory rotating viscosimeter/Laboratory Viscosity Meter
Main features:
1. Using ARM technology, built in Linux system. T
2. The viscosity measurement is accurate, each range is automatically calibrated with the computer, the accuracy is high, and the error is small;
3. The display rich content: in addition to the viscosity:
- temperature, shear rate
- shear stress,
- measurement for the full-scale value percentage (graphics)
- automatic scanning
- overflow alarm range
- the maximum measurement range
- the rotor speed under the combination of the date, time and so on.
4. And it can show the kinematic viscosity in the case of known density
4. Function is complete, can be measured regularly, 30 sets of test procedures, access to the 30 sets of measurement data, real-time display of viscosity curve, print data and curves, etc.;
6. Optional temperature probe, viscometer special constant temperature bath, constant temperature cup, printer, standard samples (standard oil viscosity) etc.;
Viscosity Meter-Viscosimeter LVDV-1T
Detailed technical parameters:
Model | LVDV-1T |
Control / display mode | 5 inch color touch screen |
speed(r/min) | 0.3,0.6,1.5,3,6,12,30,60 0.5,1,2,2.5,4,5,10,20,50,100 |
measuring range mPa.s | 0.6~ 2,000,000(0 ~ 4# rotor) 10~200,000(21/27/28/29# rotor) |
Measurement of 10 below the ultra low viscosity to buy 0# rotor |
rotor | 1 - 4#(standard configuration) 0#rotor (Select configuration) 21/27/28/29#rotor (Select configuration) |
Measurement error (Newton liquid) | ±1% |
Repetition error (Newton liquid) | ±0. 5% |
Timing function | standard configuration |
Temperature measuring function | Standard temperature probe interface (need to select the temperature probe configuration) |
Automatic scanning function | Automatic scanning and recommendation of the best combination of rotor and speed |
Display the maximum measurement range | The range of viscosity can be measured by the combination of the selected rotor and rotational speed. |
Shear stress / shear rate | display |
Display kinematic viscosity | Need to enter the density of the sample |
Establish measurement procedures | Can save up to 30 groups (including the rotor, speed, temperature, time, etc.) |
Save measurement results | Can save up to 30 sets of data (including viscosity, temperature, rotor, speed, shear rate, shear stress, time, density, kinematic viscosity, etc.) |
Viscosity time curve | real-time display |
Print | Print data, curve (standard print interface, should choose to buy a printer) |
Constant temperature unit | Options (including all kinds of special thermostat thermostatic cup viscometer.) |
Power Supply | 110V / 60Hz or 220V / 50Hz |
Outline dimension | 300 × 300 × 450(mm)21600 |
