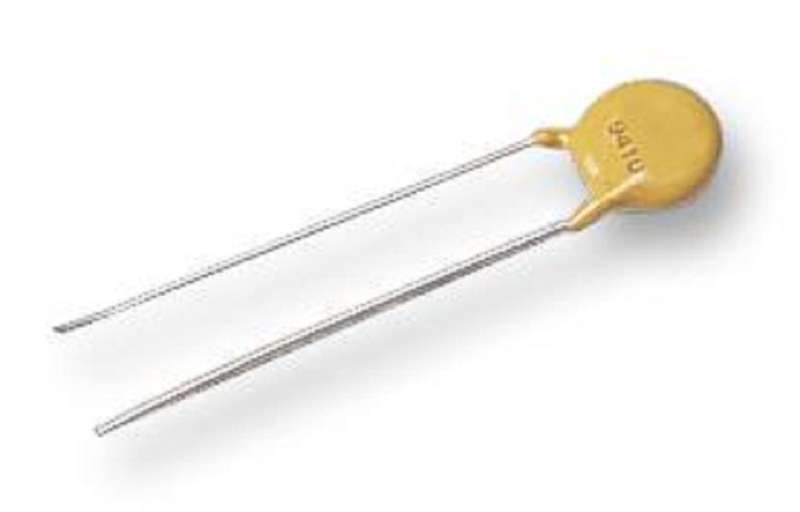

Vishay (561R10TCCV10) Ceramic Disc Capacitor, 1 pF, 1 kV, ± 0.5pF

Ceramic Disc Capacitor, 1 pF, 1 kV, ± 0.5pF, C0K / P100, 6.4 mm, Radial LeadedProduct InformationCapacitance: 1pFVoltage(DC): 1kVCapacitance Tolerance: ± 0.5pFDielectric Characteristic: C0K / P100Lead Spacing: 6.4mmCapacitor Terminals: Radial LeadedProduct Range: 561RSeries Name: 561ROperating Temperature Min: -55°COperating Temperature Max: 105°CProduct OverviewThe 561R10TCCV10 is a radial leaded lower voltage single-layer ceramic DiscCapacitor for temperature compensating. The 561R series precision capacitorconsist of a ceramic disc of which both sides are silver plating. Connectionleads are made of tinned copper or tinned copper clad steel having diameter of0.020 inch. The capacitor may be supplied with radial kinked having lead spacingof 0.250 inch. Coating is made of flame-retardant epoxy resin in accordance withUL94V-0.Ultra stable over-temperature and voltageUsed when the ultimate in stability is required
