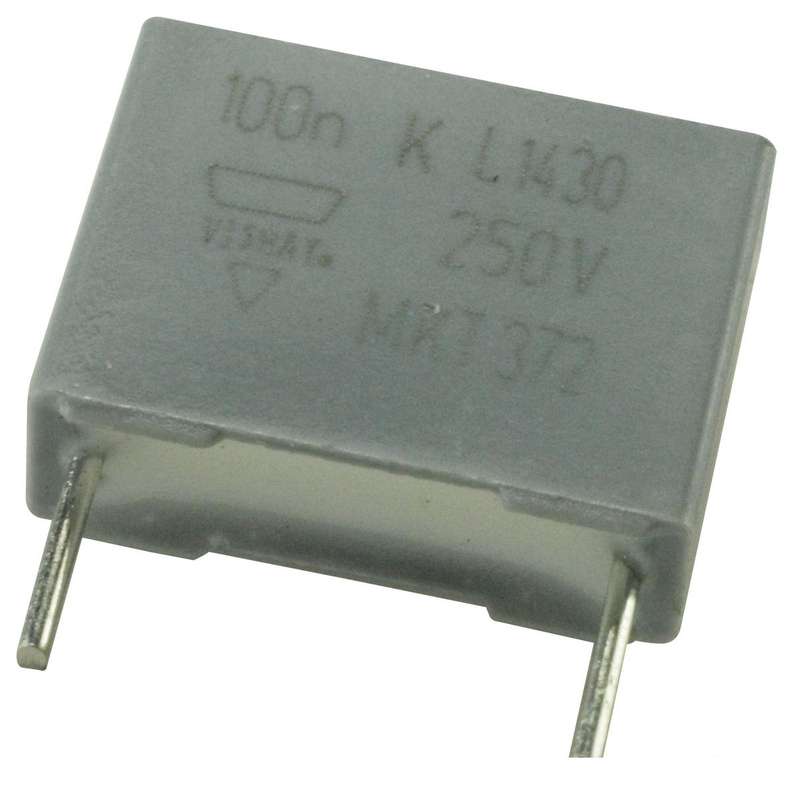

Vishay (BFC237241104) Film Capacitor, Metallized PP, 0.1 µF, ± 10%, 160 V

General Purpose Film Capacitor, Metallized PP, Radial Box - 2 Pin, 0.1 µF, ±10%, 160 V, 250 VProduct InformationDielectric Type: Metallized PPVoltage Rating: 250VCapacitor Case / Package: Radial Box - 2 PinCapacitance: 0.1µFCapacitance Tolerance: ± 10%Voltage(AC): 160VVoltage Rating VAC: 160VVoltage Rating V DC: 250VVoltage(DC): 250VCapacitor Mounting: Through HoleCapacitor Terminals: Radial LeadedHumidity Rating: GRADE II (Test Condition A)Lead Spacing: 10mmOperating Temperature Range: -55°C to +105°CSeries Name: MKT372Product Range: MKT372Case Size: -Operating Temperature Min: -55°CProduct Length: 10mmProduct Diameter: -Operating Temperature Max: 105°CProduct Width: 12.5mmAutomotive Qualification Standard: -Product OverviewThe MKT372 series DC Film Capacitor with polyester film dielectric andmetallised electrodes. It has tinned wire leads, flame retardant plastic caseand epoxy resin. It is suitable for blocking and coupling, bypass and energyreservoir.Green productUL94V-0 Flammability rating10mm Lead pitch0.0047 to 0.68µF Capacitance range (E12 series)±10% and ±5% Capacitance tolerance available
