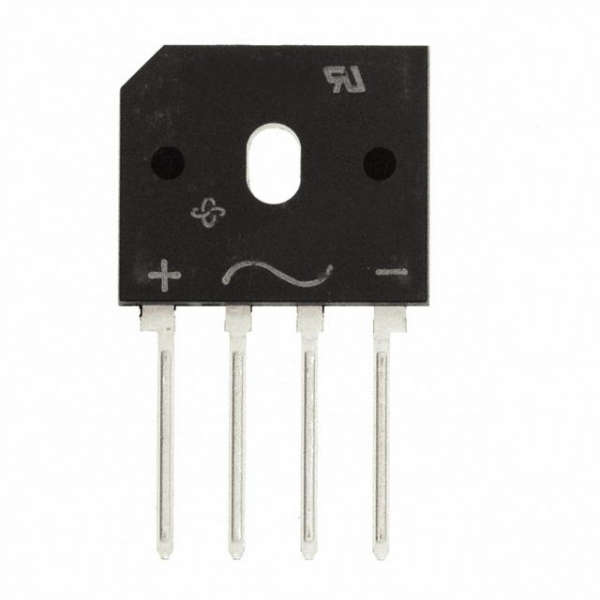

Vishay (BU2006-E3/45) Bridge Rectifier, Single Phase, 600 V, 20 A

Bridge Rectifier, Single Phase, 600 V, 20 A, SIP, 4 Pins, 1.05 VProduct OverviewThe BU2006-E3/45 is a 4-pin single-phase enhanced isoCink+ Bridge RectifierDiode with superior thermal conductivity. It is used in general purpose AC/DCbridge full wave rectification for home appliances and white-goods applications.UL94V-0 Flammability ratingSolder dip 275°C maximum 10s, per JESD 22-B106-55 to 150°C Operating junction temperature rangeApplicationsMains RectificationProduct InformationNo. of Phases: Single PhaseRepetitive Peak Reverse Voltage: 600VAverage Forward Current: 20ABridge Rectifier Case Style: SIPForward Voltage Max: 1.05VNo. of Pins: 4PinsBridge Rectifier Mounting: Through HoleOperating Temperature Max: 150°CProduct Range: BU200
