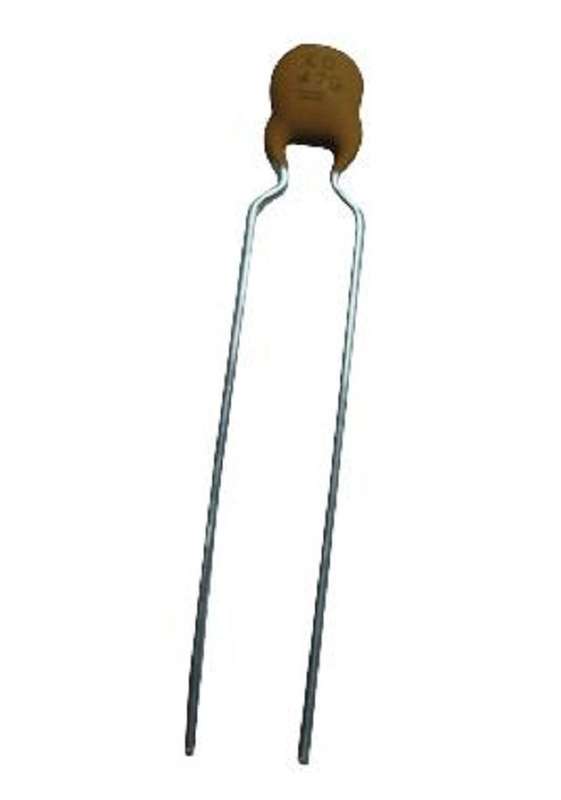

Vishay (D222K25Y5PH63J5R) Ceramic Disc Capacitor, 2200 pF, 100 V, ± 10%

Ceramic Disc Capacitor, 2200 pF, 100 V, ± 10%, Y5P, 5 mm, Radial LeadedProduct InformationCapacitance: 2200pFVoltage(DC): 100VCapacitance Tolerance: ± 10%Dielectric Characteristic: Y5PLead Spacing: 5mmCapacitor Terminals: Radial LeadedProduct Range: DSeries Name: DOperating Temperature Min: -30°COperating Temperature Max: 85°CProduct OverviewThe Vishay D series are class 2, radial leaded, ceramic single layer DC disccapacitors with Y5P dielectric material. The capacitance value ranges from 100pFto 10000pF. Typical application includes temperature compensation, bypassing,coupling and decoupling.High capacitance with small sizeHigh reliabilityCrimp and straight lead stylesRated voltage of 50VDC, 100VDC and 500VDCAvailable in selective tolerance valuesOperating temperature range from -30°C to 125°CCompliant to EIA 198, IEC 60384-8 and IEC 60384-9 standardsApplicationsIndustrial, Power Management, Consumer Electronics, Portable Devices
