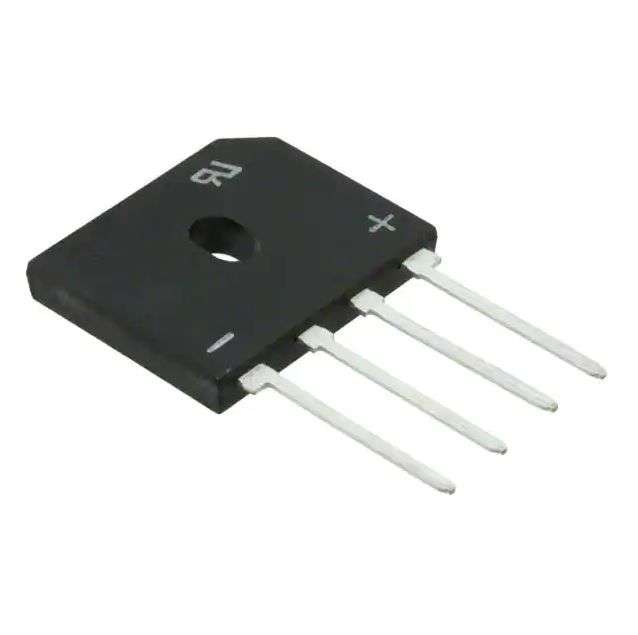

Vishay (GBU6K-E3/51) Bridge Rectifier, Single Phase, 800 V, 6 A, SIP

Bridge Rectifier, Single Phase, 800 V, 6 A, SIP, 4 Pins, 1 VProduct OverviewThe GBU6K-E3/45 is a 4-pin single-phase glass passivated Bridge Rectifier Diodewith high surge current capability. It is used in general purpose AC/DC bridgefull wave rectification for monitor, TV, printer, adapter, audio equipment andhome appliances applications.UL94V-0 Flammability ratingIdeal for printed circuit board1500VRMS High case dielectric strengthSolder dip 275°C maximum 10s, per JESD 22-B106560V Maximum RMS bridge input voltage-55 to 150°C Operating junction temperature rangeApplicationsMains RectificationProduct InformationNo. of Phases: Single PhaseRepetitive Peak Reverse Voltage: 800VAverage Forward Current: 6ABridge Rectifier Case Style: SIPForward Voltage Max: 1VNo. of Pins: 4PinsBridge Rectifier Mounting: Through HoleForward Surge Current: 175AOperating Temperature Max: 150°CProduct Range: GBU6K
