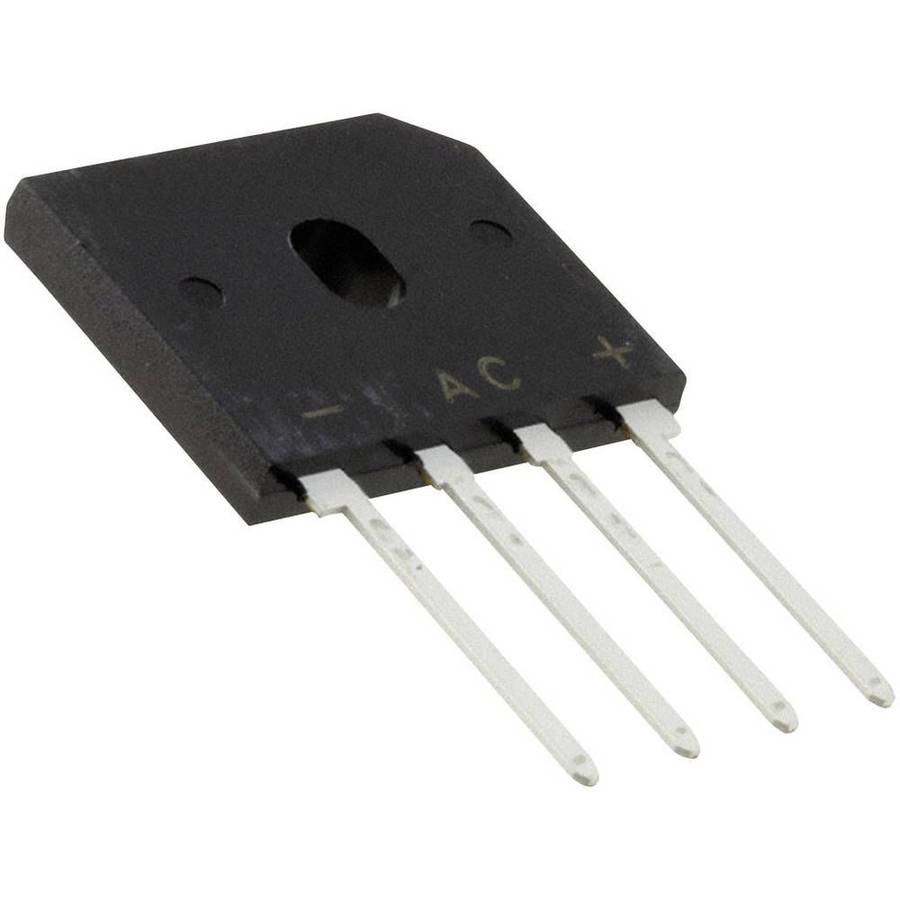

Vishay (GSIB2540-E3/45) Bridge Rectifier, Single Phase, 400 V, 25 A

Bridge Rectifier, Single Phase, 400 V, 25 A, SIP, 4 Pins, 1 VProduct OverviewThe GSIB2540-E3/45 is a 4-pin single-phase in-line Bridge Rectifier Diode withhigh surge current capability. It is used in general purpose AC/DC bridge fullwave rectification for home appliances and office equipment applications.UL94V-0 Flammability ratingGlass passivated chip junction2500VRMS High case dielectric strengthSolder dip 275°C maximum 10s, per JESD 22-B106280V Maximum RMS voltage-55 to 150°C Operating junction temperature rangeApplicationsMains RectificationProduct InformationNo. of Phases: Single PhaseRepetitive Peak Reverse Voltage: 400VAverage Forward Current: 25ABridge Rectifier Case Style: SIPForward Voltage Max: 1VNo. of Pins: 4PinsBridge Rectifier Mounting: Through HoleForward Surge Current: 350AOperating Temperature Max: 150°CProduct Range: GSIB2
