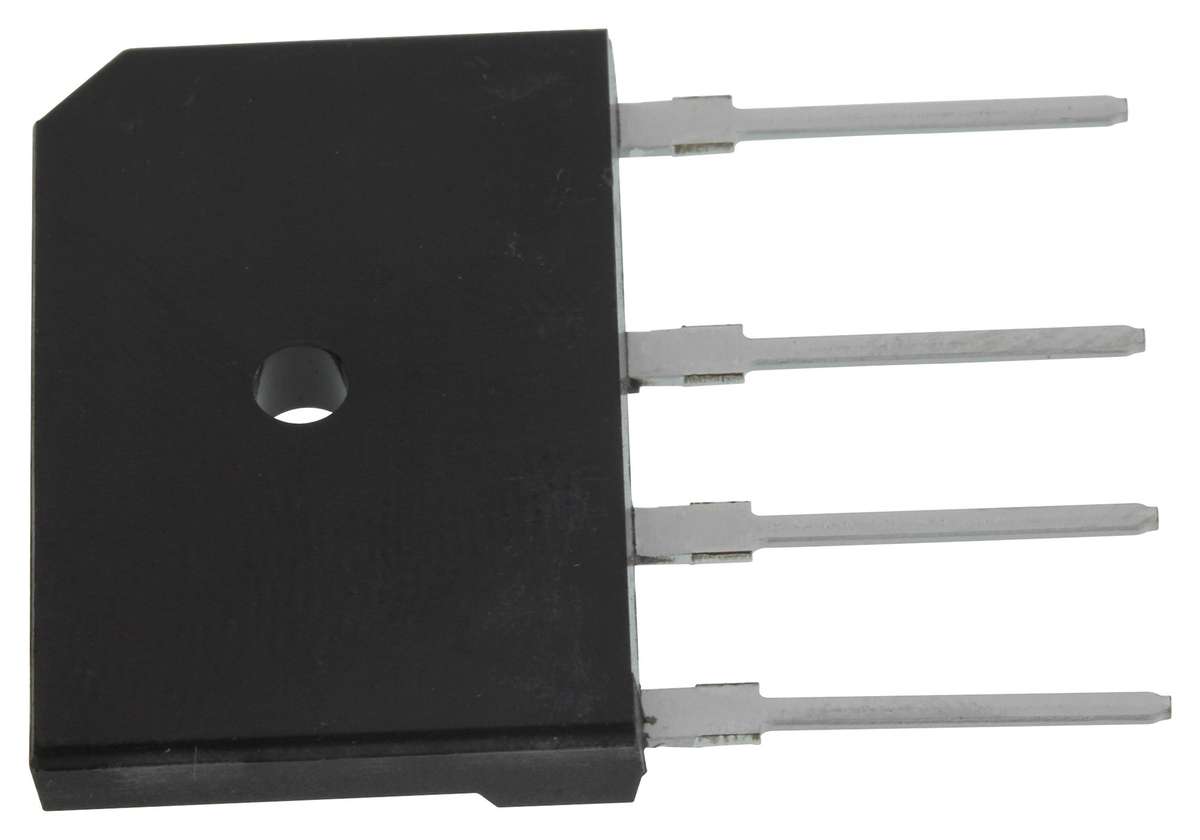

Vishay (GSIB2580-E3/45) Bridge Rectifier, Single Phase, 800 V, 25 A

Bridge Rectifier, Single Phase, 800 V, 25 A, SIP, 4 Pins, 1 VProduct OverviewThe GSIB2580-E3/45 is a single-phase single in-line Bridge Rectifier with mattetin-plated leads terminals and UL94V-0 flame rated moulding compound case. Thebridge rectifier features glass passivated chip junction, high surge currentcapability and high case dielectric strength of 2500V. Polarity marked on thebody.560V Maximum RMS voltage800V Maximum DC blocking voltageApplicationsMains RectificationProduct InformationNo. of Phases: Single PhaseRepetitive Peak Reverse Voltage: 800VAverage Forward Current: 25ABridge Rectifier Case Style: SIPForward Voltage Max: 1VNo. of Pins: 4PinsBridge Rectifier Mounting: Through HoleForward Surge Current: 350AOperating Temperature Max: 150°CProduct Range: GSIB2
