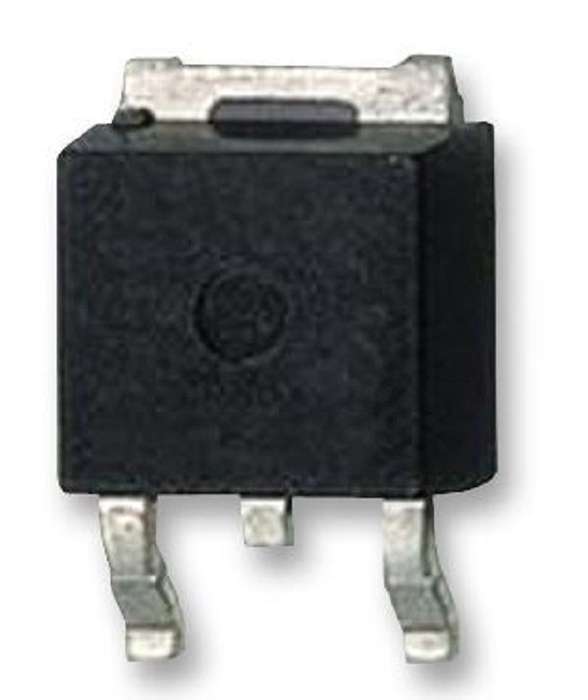

Vishay (IRFR9024PBF) Power MOSFET, P Channel, 60 V, 8.8 A, 0.28 ohm

Power MOSFET, P Channel, 60 V, 8.8 A, 0.28 ohm, TO-252 (DPAK), Surface MountProduct OverviewThe IRFR9024PBF is a -60V P-channel Power MOSFET designed for fast switching,rugged device design and low on-resistance. The DPAK is designed for surfacemounting using vapour phase, infrared or wave soldering techniques. The straightlead version (IRFU, SiHFU series) is for through-hole mounting applications.Power dissipation levels up to 1.5W are possible in typical surface mountapplications.Dynamic dV/dt ratingRepetitive avalanche ratedFast switchingApplicationsPower ManagementProduct InformationChannel Type: P ChannelTransistor Polarity: P ChannelDrain Source Voltage Vds: 60VContinuous Drain Current Id: 8.8ADrain Source On State Resistance: 0.28ohmOn Resistance Rds(on): 0.28ohmTransistor Case Style: TO-252 (DPAK)Transistor Mounting: Surface MountRds(on) Test Voltage: 10VGate Source Threshold Voltage Max: 4VPower Dissipation Pd: 42WPower Dissipation: 42WNo. of Pins: 3PinsOperating Temperature Max: 150°CMSL: MSL 1 - Unlimit
