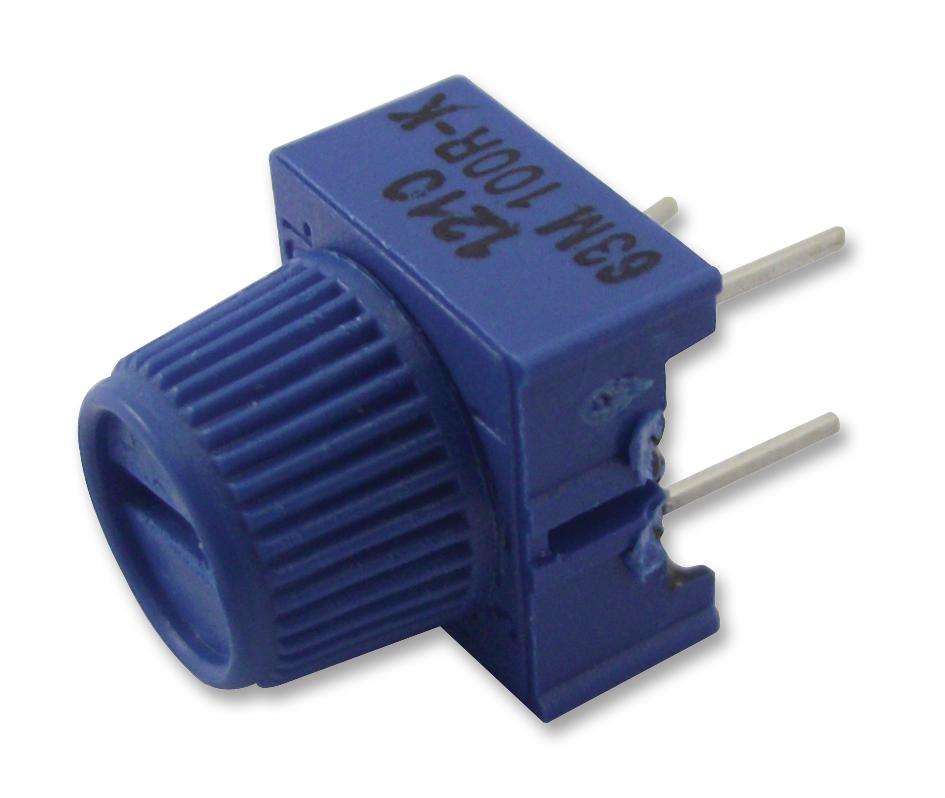

Vishay (M63M102KB30T607) Trimpot, Single Turn, Cermet, Top Finger Adjust,

Trimpot, Single Turn, Cermet, Top Finger Adjust, 1 kohm, Through Hole, 1 TurnsProduct InformationTrimpot Type: Single TurnElement Material: CermetAdjustment Type: Top Finger AdjustTrack Resistance: 1kohmPotentiometer Mounting: Through HoleNo. of Turns: 1TurnsProduct Range: 63Power Rating: 500mWResistance Tolerance: ± 10%Temperature Coefficient: ± 100ppm/°CTrimpot Shape / Size: 3/8 Inch SquareResistor Case / Package: -Product Length: 9.52mmProduct Width: 9.52mmProduct Height: 4.83mmOperating Temperature Min: -55°COperating Temperature Max: 125°CQualification: MIL-R-22097MSL: -Product OverviewThe Model 63 cermet trimmer is available in several pin configurations for topor side adjustment and with a choice of Knob styles for finger setting. Quickadjustment is achieved with multi-finger wiper and the standard resistrancerange is between 100 R and 2 MR with a tolerance of ± 10%.Industrial grade270° single turn300° mechanical travelIP64 SealingOperating temperature range -55°C to +125°CResistance value range: 100 R to 2 MR
