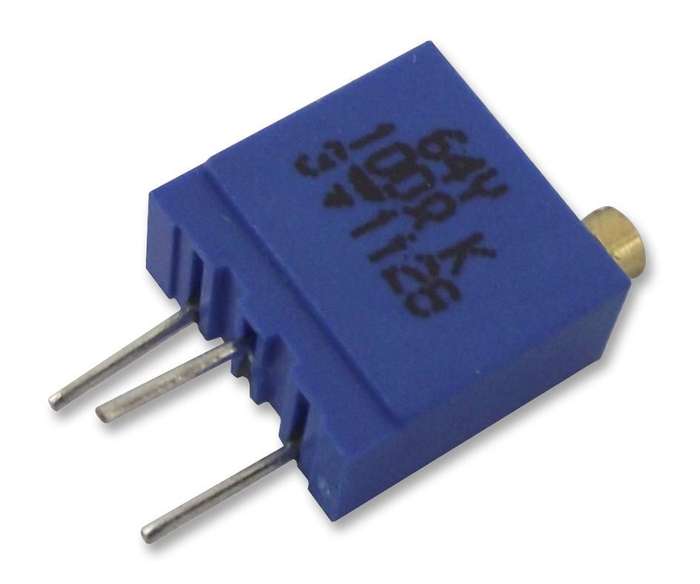

Vishay (M64Y103KB40) Trimpot, Multi Turn, Cermet, Top Adjust, 10 kohm

Trimpot, Multi Turn, Cermet, Top Adjust, 10 kohm, Through Hole, 23 TurnsProduct InformationTrimpot Type: Multi TurnElement Material: CermetAdjustment Type: Top AdjustTrack Resistance: 10kohmPotentiometer Mounting: Through HoleNo. of Turns: 23TurnsProduct Range: 64Power Rating: 500mWResistance Tolerance: ± 10%Temperature Coefficient: ± 100ppm/°CTrimpot Shape / Size: 3/8 Inch SquareResistor Case / Package: -Product Length: 9.7mmProduct Width: 5mmProduct Height: 9.8mmOperating Temperature Min: -55°COperating Temperature Max: 125°CQualification: MIL-R-22097MSL: -Product OverviewThe Model 64 is a small size trimmer - 3/8" x 3x8" x 3/16" - answering PC boardmounting requirements. Five versions are available which differ by the positionof the control screw in relation to the PC board plane and by the spacing of theterminals. Excellent operational stability is provided by the use of a cermetelement.Industrial grade21 turns Electrical travel23 turns Mechanical travelFully sealed - IP67Operating temperature range -55°C to +125°CResistance value range: 10 R to 2.2MR
