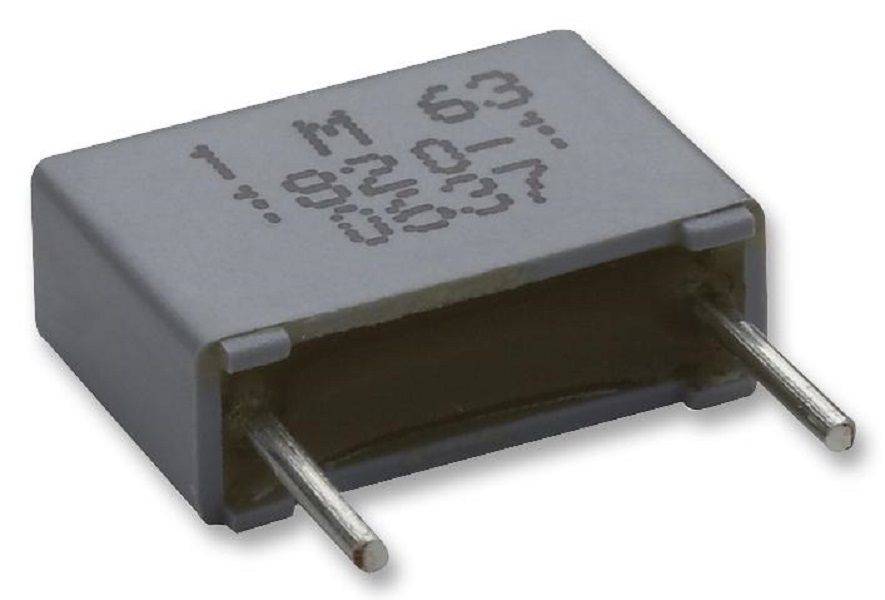

Vishay (MKT1820610015) General Purpose Film Capacitor, Metallized PET

General Purpose Film Capacitor, Metallized PET, Radial Box - 2 Pin, 10 µF, ±10%, 63 V, 100 VProduct InformationDielectric Type: Metallized PETCapacitor Case / Package: Radial Box - 2 PinCapacitance: 10µFCapacitance Tolerance: ± 10%Voltage(AC): 63VVoltage(DC): 100VCapacitor Mounting: Through HoleCapacitor Terminals: PC PinHumidity Rating: GRADE II (Test Condition A)Lead Spacing: 22.5mmProduct Length: 18.5mmProduct Width: 26.5mmProduct Height: 18.5mmProduct Range: MKT1820Operating Temperature Min: -55°COperating Temperature Max: 125°CQualification: AEC-Q200Product OverviewThe MKT1820610015 is a radial leaded DC Film Capacitor with polyester filmdielectric and metallised electrodes. The MKT1820 series AEC-Q200 automotivegrade film capacitor has tinned wire leads. It assists energy conversion whileproviding low losses, high efficiency and long life. For general purposeapplications of DC-filtering, coupling, bypassing timing and interferencesuppression on low-voltage circuits. It features high temperature capabilities.UL94V-0 flame-retardant epoxy resin sealed plastic case encapsulation
