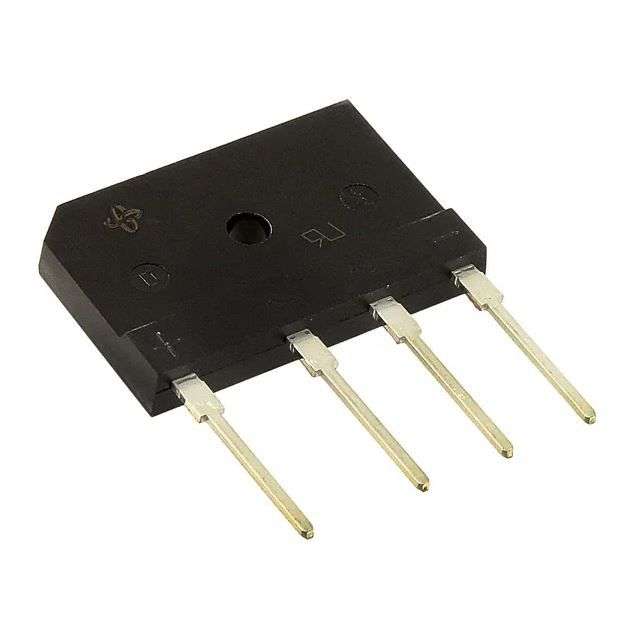

Vishay (PB3510-E3/45) Bridge Rectifier, Single Phase, 1 kV, 35 A, SIP

Bridge Rectifier, Single Phase, 1 kV, 35 A, SIP, 4 Pins, 1.1 VProduct OverviewThe PB3510-E3/45 is a 4-pin single-phase enhanced isoCink+ Bridge RectifierDiode with high-current density. It is used in general purpose AC/DC bridge fullwave rectification for home appliances and white-goods applications.UL94V-0 Flammability ratingSuperior thermal conductivitySolder dip 275°C maximum 10s, per JESD 22-B106-55 to 150°C Operating junction temperature rangeApplicationsMains RectificationProduct InformationNo. of Phases: Single PhaseRepetitive Peak Reverse Voltage: 1kVAverage Forward Current: 35ABridge Rectifier Case Style: SIPForward Voltage Max: 1.1VNo. of Pins: 4PinsBridge Rectifier Mounting: Through HoleOperating Temperature Max: 150°CProduct Range: PB351
