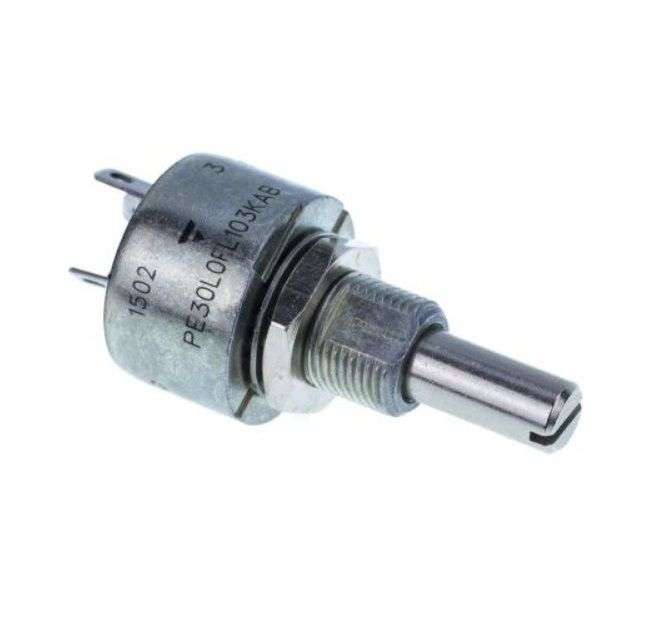

Vishay (PE30L0FR103KAB) Rotary Potentiometer, Cermet, 10 kohm, 1 Turns

Rotary Potentiometer, Cermet, 10 kohm, 1 Turns, Linear, 3 W, ± 10%, PE30Product InformationTrack Resistance: 10kohmNo. of Turns: 1TurnsTrack Taper: LinearPower Rating: 3WResistance Tolerance: ± 10%Product Range: PE30Potentiometer Mounting: Panel MountShaft Diameter: 6mmNo. of Gangs: 1Adjustment Type: Screwdriver SlotShaft Length: 50mmTemperature Coefficient: ± 100ppm/°CResistor Technology: CermetOperating Temperature Min: -55°COperating Temperature Max: 125°CProduct OverviewThe PE30L0FR103KAB is a Fully Sealed Potentiometer, military and professionalgrade, cermet element with low temperature coefficient of 150ppm/°C. 50mm shaftlength and use of Faston 2.86mm connections and linear taper.3W at 70°C High power ratingTests according to CECC 41000 or IEC 60393-1270° ±10° Electrical travel10?MR Insulation resistanceIP67 Protection rating (sealing)2500V Dielectric strengthLinear/logarithmic variations availableLow Temperature coefficient is 150ppm/°C typicalTests according to CECC 41000 or IEC 60393-1 standardsCentre detent option
